NEW
AS400-2A1
4U 2-Socket 8-GPU PCIe, NVIDIA MGX™ System
NVIDIA RTX PRO™ Server for Enterprise AI Factory
Key Features
| Form Factor | |
| Form Factor | |
|
Chassis Form Factor MGX 4U |
|
|
Mainboard Form Factor MGX Board |
|
|
Chassis Dimension (mm) 438 (W) x 176 (H) x 800 (D) |
|
|
Mainboard Dimension (mm) 424.5 x 305.59 |
|
| Processor | |
| Processor | |
|
Number of Processors 2 |
|
|
Processor Type AMD EPYC™ 9005 Processor |
|
|
Max. TDP Support 400W |
|
| GPU | |
|
Up to 8 x dual-slot PCIe GPU, TDP up to 600W (Support NVIDIA H200 NVL, RTX PRO™ 6000 Blackwell Server Edition, and L40S) Or up to 16 x single-slot PCIe GPU/AI acceleration cards, TDP up to 300W |
|
| GPU |
Up to 8 x dual-slot PCIe GPU, TDP up to 600W (Support NVIDIA H200 NVL, RTX PRO™ 6000 Blackwell Server Edition, and L40S) Or up to 16 x single-slot PCIe GPU/AI acceleration cards, TDP up to 300W |
| Memory | |
| Memory | |
|
Total Slots 32 x DIMM slots |
|
|
Memory Type DDR5 RDIMM (6400MT/s rated): 1DPC: 5200MT/s (1R/2R) 2DPC: 4400 MT/s (1R) / 4000 MT/s (2R) |
|
|
DIMM Capacity (GB per DIMM) 32GB, 64GB, 128GB |
|
| Expansion Slots | |
| Expansion Slots | |
|
SKU -#1 5 x PCIe 5.0 x16 single-slot FHFL for 1 x NVIDIA BlueField®-3 DPU & 4 x NVIDIA ConnectX®-7 NICs |
|
| Storage Bays | |
| Storage Bays | |
|
SKU -#1 8 x E1.S NVMe |
|
| Onboard Storage | |
| 2 x PCIe 3.0 x2 M.2 2280/22110 NVMe | |
| Onboard Storage | 2 x PCIe 3.0 x2 M.2 2280/22110 NVMe |
| Management | |
| DC-SCI BMC management (Aspeed AST2600) | |
| Management | DC-SCI BMC management (Aspeed AST2600) |
| Security | |
| TPM 2.0 (infineon SLB 9670) | |
| Security | TPM 2.0 (infineon SLB 9670) |
| Networking Interface | |
| 1 x IPMI RJ45 | |
| Networking Interface | 1 x IPMI RJ45 |

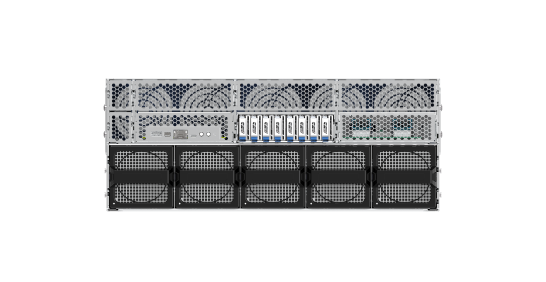

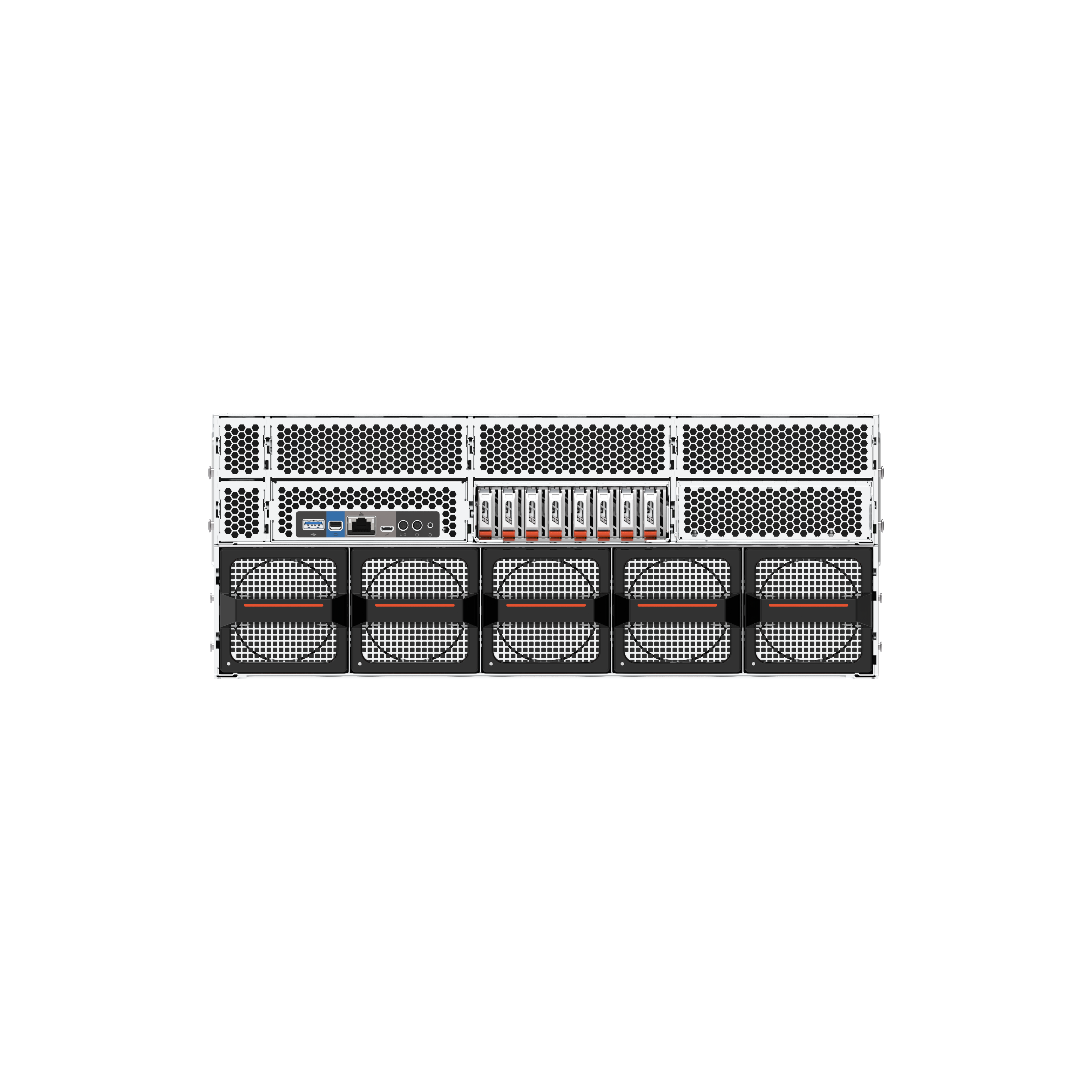

| Front I/O Ports | |
|
Power button LED / UID button LED 1 x IPMI RJ45, no on-board LAN to support share-LAN through NC-SI 1 x USB 3.2 Gen 1 (5Gbps) 1 x Mini-DP 1 x Micro-USB (For UART debug) |
|
| Front I/O Ports |
Power button LED / UID button LED 1 x IPMI RJ45, no on-board LAN to support share-LAN through NC-SI 1 x USB 3.2 Gen 1 (5Gbps) 1 x Mini-DP 1 x Micro-USB (For UART debug) |
| OS Support | |
|
Red Hat Enterprise Linux 9.2 or later Ubuntu 22.04 LTS |
|
| OS Support |
Red Hat Enterprise Linux 9.2 or later Ubuntu 22.04 LTS |
| Power Supply | |
| 3+1 3200W Titanium CRPS | |
| Power Supply | 3+1 3200W Titanium CRPS |
| Fans | |
| 10 x 8080 Fans | |
| Fans | 10 x 8080 Fans |
| Operating Environment | |
|
For NVIDIA H200 NVL, ambient operating temperature range: 10°C to 35 °C For NVIDIA RTX PRO™ 6000 Blackwell Server Edition, ambient operating temperature range: 10°C to 30 °C Ambient non-operating temperature: -40°C to 68 °C Operating relative humidity: 10% to 85% (non-condensing) Non-operating relative humidity: up to 93% (non-condensing) |
|
| Operating Environment |
For NVIDIA H200 NVL, ambient operating temperature range: 10°C to 35 °C For NVIDIA RTX PRO™ 6000 Blackwell Server Edition, ambient operating temperature range: 10°C to 30 °C Ambient non-operating temperature: -40°C to 68 °C Operating relative humidity: 10% to 85% (non-condensing) Non-operating relative humidity: up to 93% (non-condensing) |
