SS201-1A1E
2U Single-Socket All-Flash NVMe Storage Server Built with High‑Density 32 x E3.S NVMe SSD Bays and Powered by AMD EPYC™ 9005 / 9006 Series Processor for Scalable Storage Workloads
partner

Key Features

Form Factor
Form Factor
Chassis Form Factor
2U
Chassis Dimension (W x H x D)
438 × 87 × 770 mm
Mainboard Form Factor
M-SDNO Class A 335
Mainboard Dimension
210 (W) x 335.59 (L) x 1.93 (T) mm
Processor
Processor
Number of Processors
1
Processor Type
AMD EPYC™ 9005 / 9006 Series Processor
Max. TDP Support
400W
Memory
Memory
Total Slots
12
Memory Type
1DPC: DDR5 RDIMM, 6400 MT/s
DIMM Capacity (GB per DIMM)
32GB, 64GB, 96GB
Expansion Slots
SS201-1A1E2 : 1 x PCIe 5.0 x16 OCP 3.0 slot
SS201-1A1E2 : 2 x PCIe 5.0 x16 FHHL
SS201-1A1E2 : 1 x PCIe 5.0 x8 FHHL
SS201-1A1E4 : 1 x PCIe 5.0 x16 OCP 3.0 slot
SS201-1A1E4 : 1 x PCIe 5.0 x8 FHHL
Expansion Slots SS201-1A1E2 : 1 x PCIe 5.0 x16 OCP 3.0 slot
SS201-1A1E2 : 2 x PCIe 5.0 x16 FHHL
SS201-1A1E2 : 1 x PCIe 5.0 x8 FHHL
SS201-1A1E4 : 1 x PCIe 5.0 x16 OCP 3.0 slot
SS201-1A1E4 : 1 x PCIe 5.0 x8 FHHL

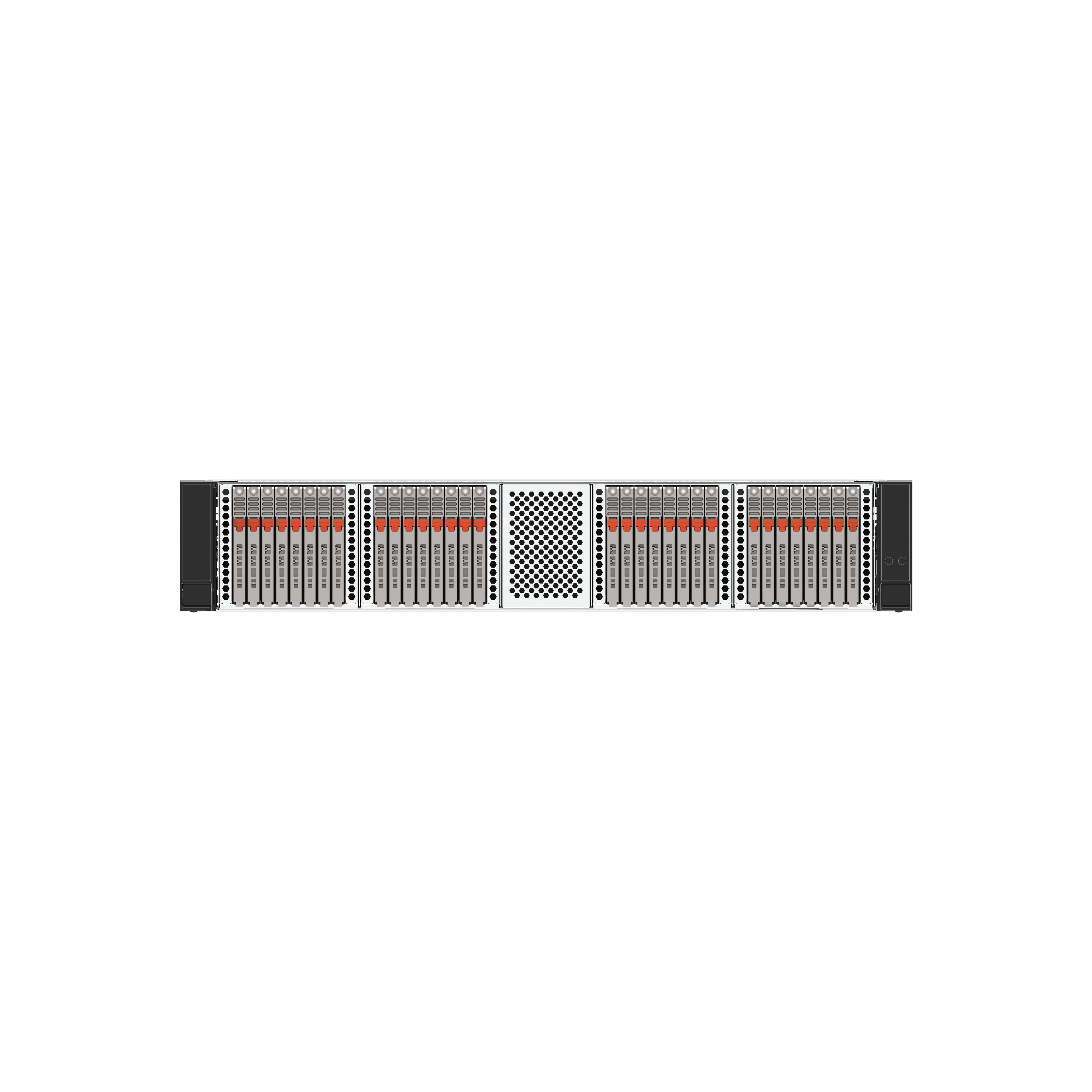

Storage Bays
SS201-1A1E2:
32 x E3.S NVMe​ (PCIe 5.0 x2 lanes)
SS201-1A1E4:
24 x E3.S NVMe (PCIe 5.0 x4 lanes)
Storage Bays SS201-1A1E2:
32 x E3.S NVMe​ (PCIe 5.0 x2 lanes)
SS201-1A1E4:
24 x E3.S NVMe (PCIe 5.0 x4 lanes)
Onboard Storage
2 x M.2 2280/22110 NVMe
Onboard Storage 2 x M.2 2280/22110 NVMe
Management
DC-SCM 2.0 (Aspeed® AST 2600)
Management DC-SCM 2.0 (Aspeed® AST 2600)
Security
TPM 2.0
Security TPM 2.0
Front I/O Ports
1 x Power button LED
1 x UID button LED
1 x BMC Status LED
Front I/O Ports 1 x Power button LED
1 x UID button LED
1 x BMC Status LED

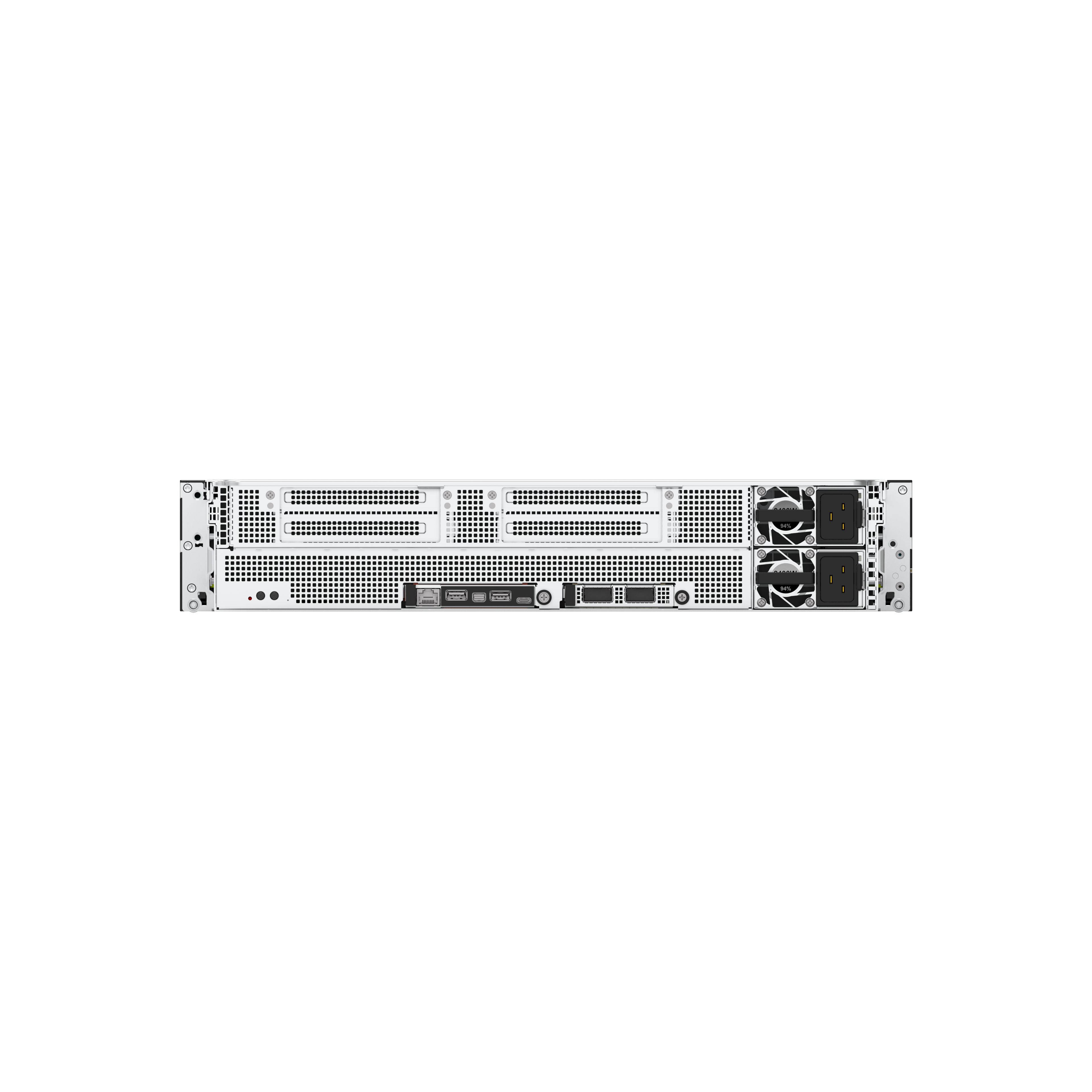

Rear I/O Ports
1x IPMI RJ45
1 x Mini-DP
1 x USB 3.2 type A
1 x USB 2.0 type A
1 x Console port (type-C for UART debug)
1 x Power button LED
1 x UID button LED
1 x BMC status LED
Rear I/O Ports 1x IPMI RJ45
1 x Mini-DP
1 x USB 3.2 type A
1 x USB 2.0 type A
1 x Console port (type-C for UART debug)
1 x Power button LED
1 x UID button LED
1 x BMC status LED
OS Support
Ubuntu 24.04 LTS or later version
RedHat RHEL 9.x or later
Windows Server 2022
VMware 8.0
OS Support Ubuntu 24.04 LTS or later version
RedHat RHEL 9.x or later
Windows Server 2022
VMware 8.0
Power Supply
1+1 2000W Titanium CRPS
Power Supply 1+1 2000W Titanium CRPS
Fans
6 x 6056 fans
Fans 6 x 6056 fans
Operating Environment
Ambient operating temperature range: 10°C to 35 °C
Ambient non-operating temperature: -40°C to 70 °C
Operating relative humidity: 10% to 80% (non-condensing)
Non-operating relative humidity: up to 90% (non-condensing)
Operating Environment Ambient operating temperature range: 10°C to 35 °C
Ambient non-operating temperature: -40°C to 70 °C
Operating relative humidity: 10% to 80% (non-condensing)
Non-operating relative humidity: up to 90% (non-condensing)
