MS305-4A1
2OU2N AMD SP5 High Density Multi-Node Server with All-Flash Storage for up to 480TB per Node
Key Features
| Form Factor | |
| Form Factor | |
|
Chassis Form Factor 2OU 2-node |
|
|
Chassis Dimension (W x H x D) 537 x 93.5 x 809.25 mm |
|
|
Mainboard Form Factor Half-width MB |
|
|
Mainboard Dimension 540 x 250 mm |
|

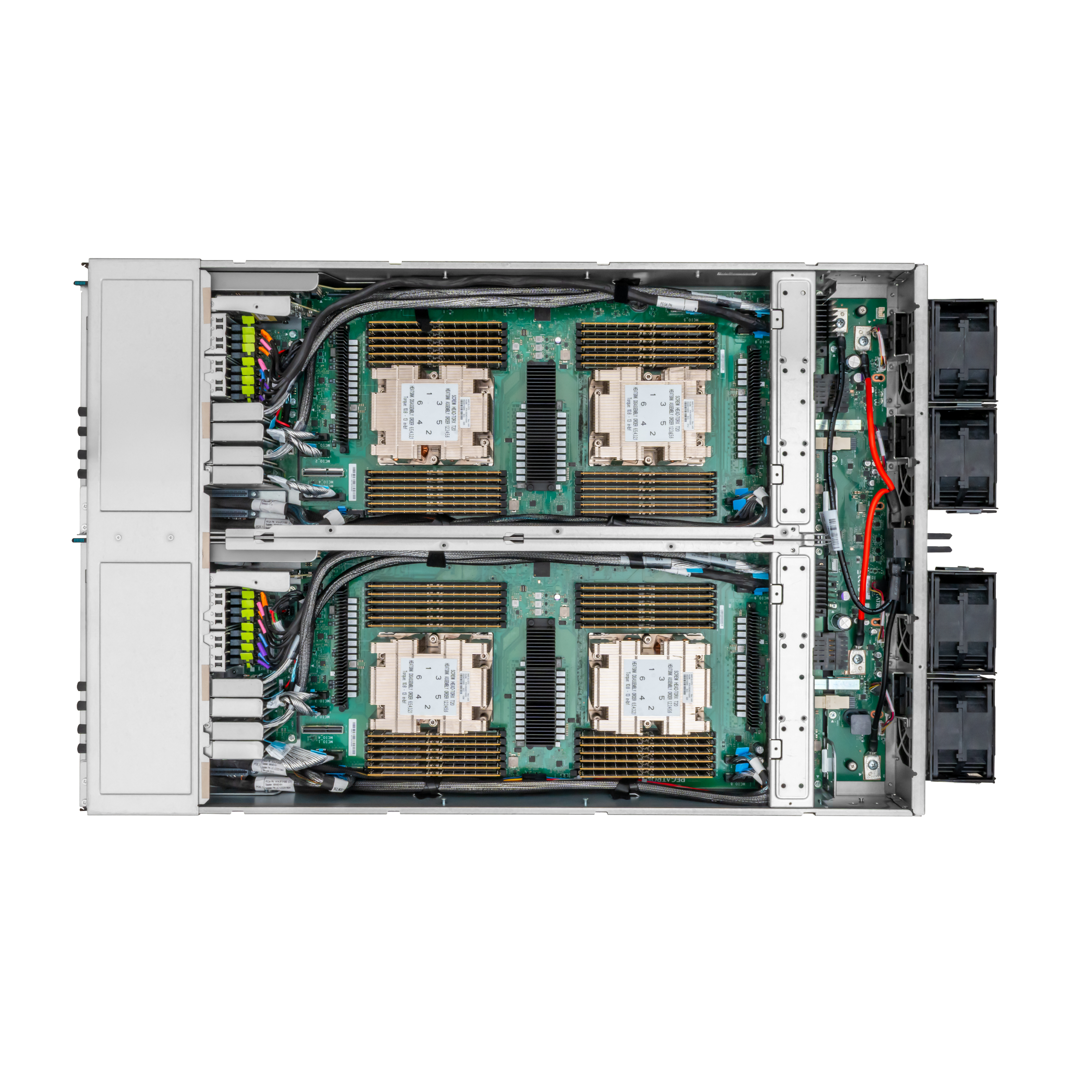

| Processor | |
| Processor | |
|
Number of Processors 2 |
|
|
Processor Type AMD EPYC™ 9005 series processors |
|
|
Max. TDP Support 320W |
|
| Memory | |
| Memory | |
|
Total Slots 24 |
|
|
Memory Type 1DPC: DDR5 RDIMM up to 6400 MT/s |
|
|
DIMM Capacity <br>(GB per DIMM) 64GB, 96GB |
|
| Expansion Slots | |
| Expansion Slots | |
|
SKU - #1 4 x PCIe 5.0 x16 OCP 3.0 2 x PCIe 5.0 x16 HHHL |
|
| Storage Bays | |
| Storage Bays | |
|
SKU - #1 2 x PCIe3 E1.S NVMe SSD (support hardware RAID for OS) 8 x PCIe5 E3.S 1T NVMe SSD |
|
| Management | |
| Aspeed AST2600 | |
| Management | Aspeed AST2600 |
| Security | |
| TPM 2.0 | |
| Security | TPM 2.0 |
| Networking Interface | |
|
2 x OCP 3.0 NIC 1 x BMC management RJ45 (DC-SCM) 2 x RJ45 1GbE LAN (DC-SCM) |
|
| Networking Interface |
2 x OCP 3.0 NIC 1 x BMC management RJ45 (DC-SCM) 2 x RJ45 1GbE LAN (DC-SCM) |

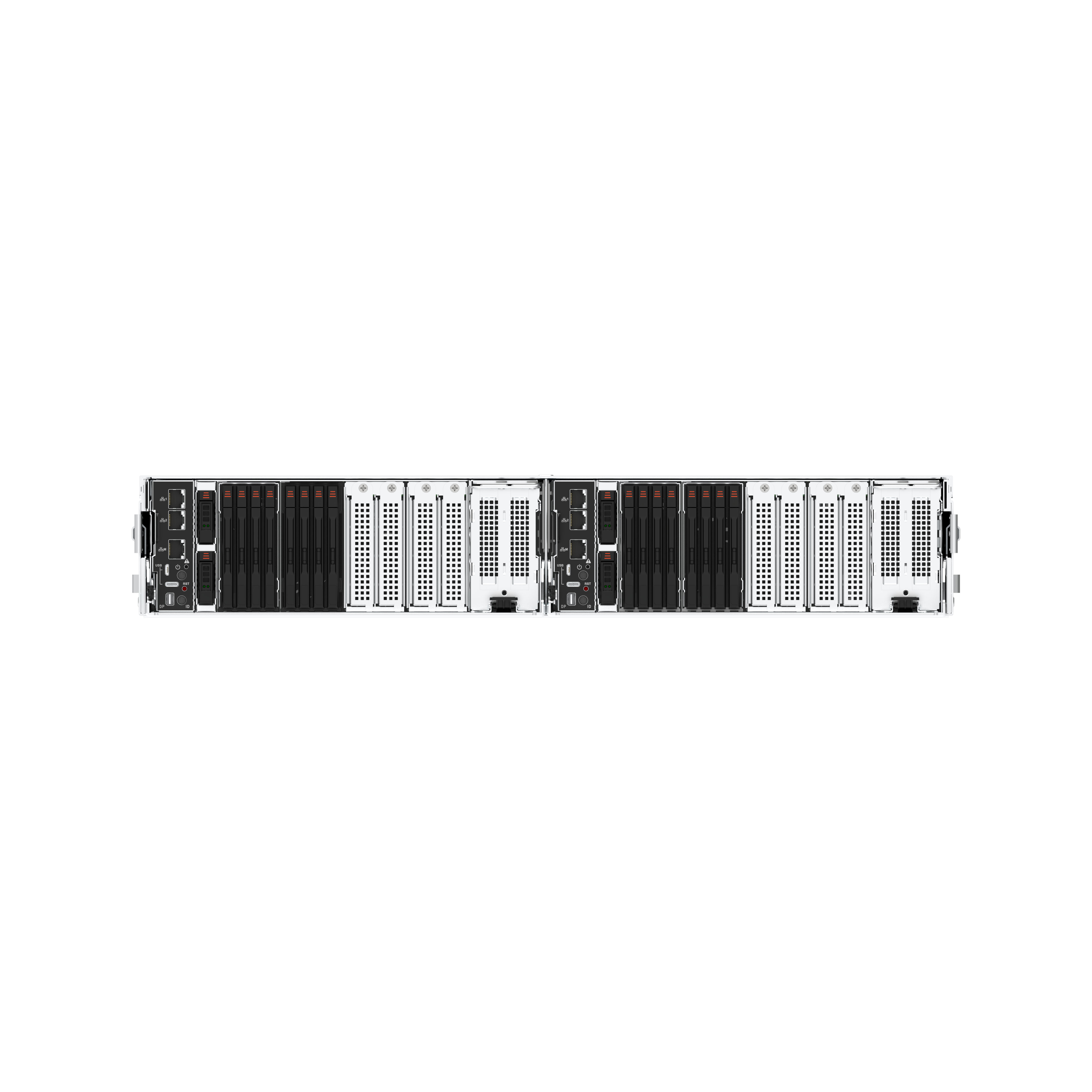

| Front I/O Ports | |
|
DC-SCM 2.0-like module (AST 2600) 1 x BMC management RJ45 2 x RJ45 1GbE LAN 1 x Micro USB 1 x USB 2.0 Type-C 1 x Mini display port 1 x Power button LED 1 x UID button LED 1 x BMC reset button 1 x System status button |
|
| Front I/O Ports |
DC-SCM 2.0-like module (AST 2600) 1 x BMC management RJ45 2 x RJ45 1GbE LAN 1 x Micro USB 1 x USB 2.0 Type-C 1 x Mini display port 1 x Power button LED 1 x UID button LED 1 x BMC reset button 1 x System status button |
| OS Support | |
|
Ubuntu 22.04 LTS and above RHEL 8.6 and above Windows Server 2022 |
|
| OS Support |
Ubuntu 22.04 LTS and above RHEL 8.6 and above Windows Server 2022 |
| Power Supply | |
| Via 48VDC Busbar | |
| Power Supply | Via 48VDC Busbar |

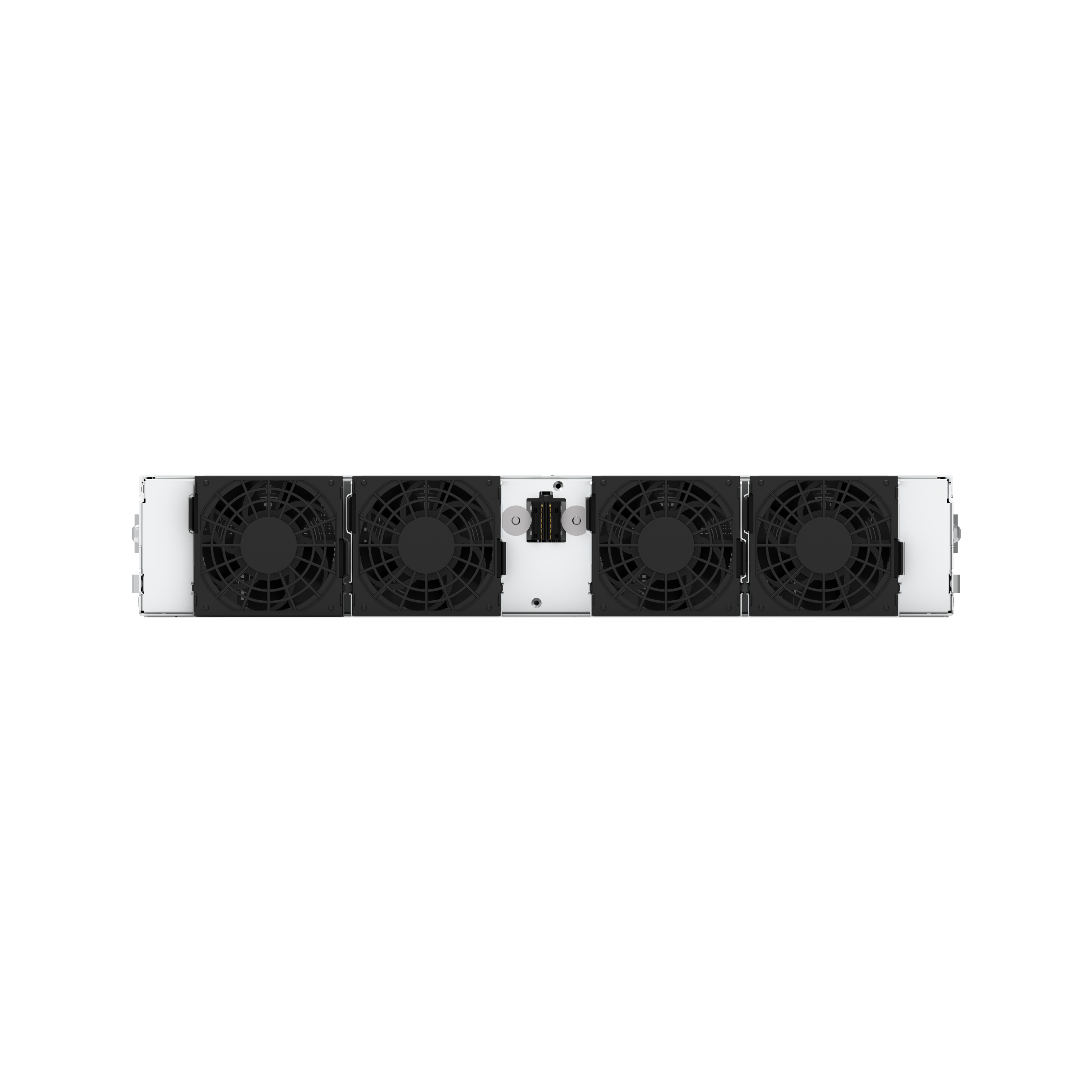

| Fans | |
| 4 x 9256 Fan | |
| Fans | 4 x 9256 Fan |
| Operating Environment | |
|
Operating Temperature: 10°C to 35°C Storage temperature range: -40°C to 68 °C Non-operating relative humidity: 10% to 90%, non-condensing |
|
| Operating Environment |
Operating Temperature: 10°C to 35°C Storage temperature range: -40°C to 68 °C Non-operating relative humidity: 10% to 90%, non-condensing |
