MS301-2T1C
2U2N 1-Socket, OCP Compliant, High Flexibility Multi-Node Server
Key Features
| Form Factor | |
| Form Factor | |
|
Chassis Form Factor 2U 2-Node |
|
|
Chassis Dimension (W x H x D) 447 x 86.8 x 800 mm 17.6 x 3.4 x 31.5 inch |
|
|
Mainboard Form Factor M-SDNO Class A305 |
|
|
Mainboard Dimension 210 x 305 mm |
|
| Processor | |
| Processor | |
|
Number of Processors 1 |
|
|
Processor Type Intel® Xeon® 6700P/6500P/6500E |
|
|
Max. TDP Support Up to 350W |
|
| Memory | |
| Memory | |
|
Total Slots 16 |
|
|
Memory Type DDR5 RDIMM (Only DDR5-6400 Rated Support): 1DPC: up to 6400MT/s 2DPC: up to 5200MT/S |
|
|
DIMM Capacity <br> (GB per DIMM) 32GB, 64GB, 128GB |
|
| Expansion Slots | |
| 1 x OCP 3.0 NIC | |
| Expansion Slots | 1 x OCP 3.0 NIC |
| Storage Bays | |
| 8 x E1.S SSD | |
| Storage Bays | 8 x E1.S SSD |
| Onboard Storage | |
| 2 x M.2 SSD 2280/22110 | |
| Onboard Storage | 2 x M.2 SSD 2280/22110 |
| Management | |
| Aspeed AST2600 | |
| Management | Aspeed AST2600 |
| Security | |
|
1 x TPM 2.0 1 x PROT (Platform Root Of Trust) |
|
| Security |
1 x TPM 2.0 1 x PROT (Platform Root Of Trust) |
| Networking Interface | |
| 1 x OCP 3.0 slot | |
| Networking Interface | 1 x OCP 3.0 slot |

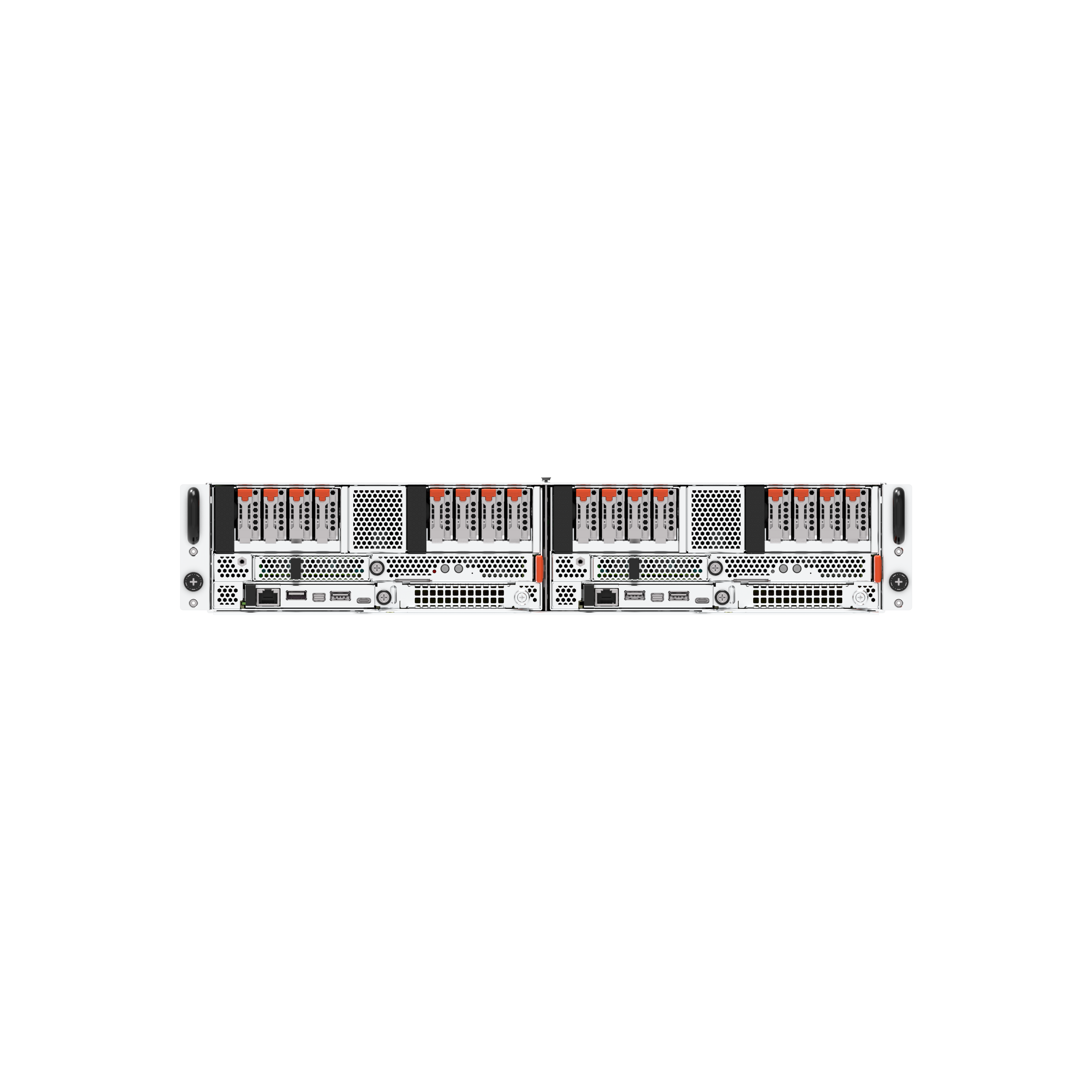

| Front I/O Ports | |
|
1 x USB 3.0 type A port 1 x USB 2.0 type A port 1 x USB type C (UART) 1 x Mini Display Port 1 x Power button with LED 1 x UID button with LED 1 x Status LED 1 x Reset button |
|
| Front I/O Ports |
1 x USB 3.0 type A port 1 x USB 2.0 type A port 1 x USB type C (UART) 1 x Mini Display Port 1 x Power button with LED 1 x UID button with LED 1 x Status LED 1 x Reset button |

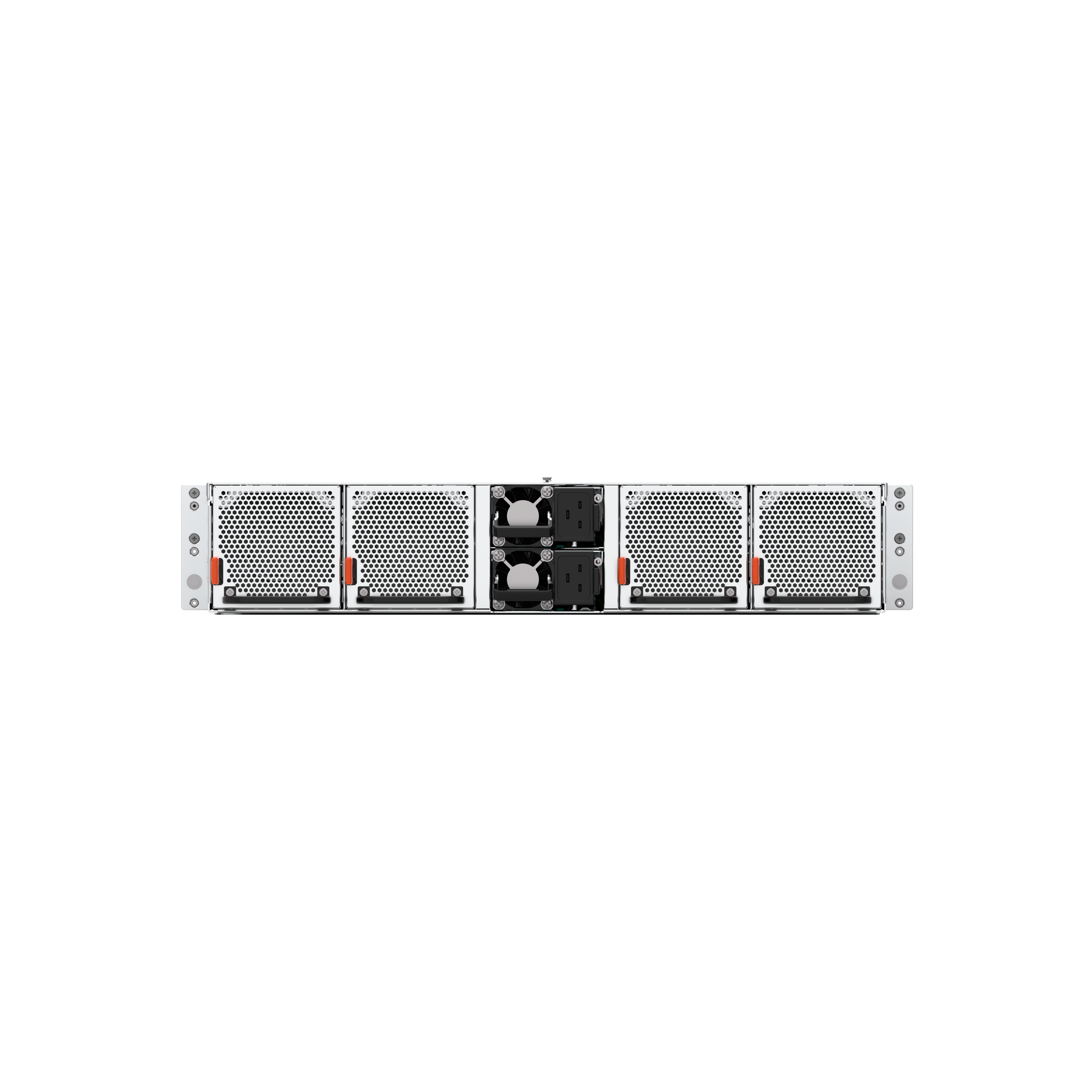

| Rear I/O Ports | |
| 1 x Status LED | |
| Rear I/O Ports | 1 x Status LED |
| OS Support | |
|
RedHat RHEL 9.1 or later Ubuntu 22.04.2 LTS or later Windows Server 2022 |
|
| OS Support |
RedHat RHEL 9.1 or later Ubuntu 22.04.2 LTS or later Windows Server 2022 |
| Power Supply | |
| 1+1 2400W Platinum CRPS | |
| Power Supply | 1+1 2400W Platinum CRPS |
| Fans | |
| 4 x 8056 Fans | |
| Fans | 4 x 8056 Fans |
| Operating Environment | |
|
Ambient operating temperature range: 10°C to +35 °C Ambient Non-operating temperature: -40°C to +70 °C Operating relative humidity: 10% to 80%, non-condensing Non-operating relative humidity: up to 90%, non-condensing |
|
| Operating Environment |
Ambient operating temperature range: 10°C to +35 °C Ambient Non-operating temperature: -40°C to +70 °C Operating relative humidity: 10% to 80%, non-condensing Non-operating relative humidity: up to 90%, non-condensing |
