NEW
GS203-2A2
2U 2-Socket AMD EPYC™ 9006 (Venice SP8) Series Server
Optimized for Enterprise and Cloud Deployments with Balanced Performance and Scalability
Key Features
| Form Factor | |
| Form Factor | |
|
Chassis Form Factor 2U |
|
|
Chassis Dimension (W x H x D) 448 x 87 x 815 mm 17.6 x 3.4 x 32.1 inch |
|
| Processor | |
| Processor | |
|
Number of Processors 2 |
|
|
Processor Type AMD EPYC™ 9006 server series processors (Venice SP8) |
|
|
Max. TDP Support 400W |
|
| GPU | |
| Up to 3 dual-slot PCIe GPUs, up to 350W TDP | |
| GPU | Up to 3 dual-slot PCIe GPUs, up to 350W TDP |
| Memory | |
| Memory | |
|
Total Slots 32 |
|
|
Memory Type 1DPC : DDR5 RDIMM, 8000 MT/s 1DPC : DDR5 MRDIMM, 12800 MT/s 2DPC : DDR5 RDIMM, 6000 MT/s |
|
|
DIMM Capacity (GB per DIMM) 64GB, 96GB, 128GB |
|
| Expansion Slots | |
|
SKU #1 : 2 x PCIe 6.0 x16 OCP 3.0 2 x PCIe 6.0 x16 FHFL (double-width) SKU #2 : 2 x PCIe 6.0 x16 OCP 3.0 3 x PCIe 6.0 x16 FHFL (double-width) or 4 x PCIe 6.0 x16 FHHL |
|
| Expansion Slots |
SKU #1 : 2 x PCIe 6.0 x16 OCP 3.0 2 x PCIe 6.0 x16 FHFL (double-width) SKU #2 : 2 x PCIe 6.0 x16 OCP 3.0 3 x PCIe 6.0 x16 FHFL (double-width) or 4 x PCIe 6.0 x16 FHHL |

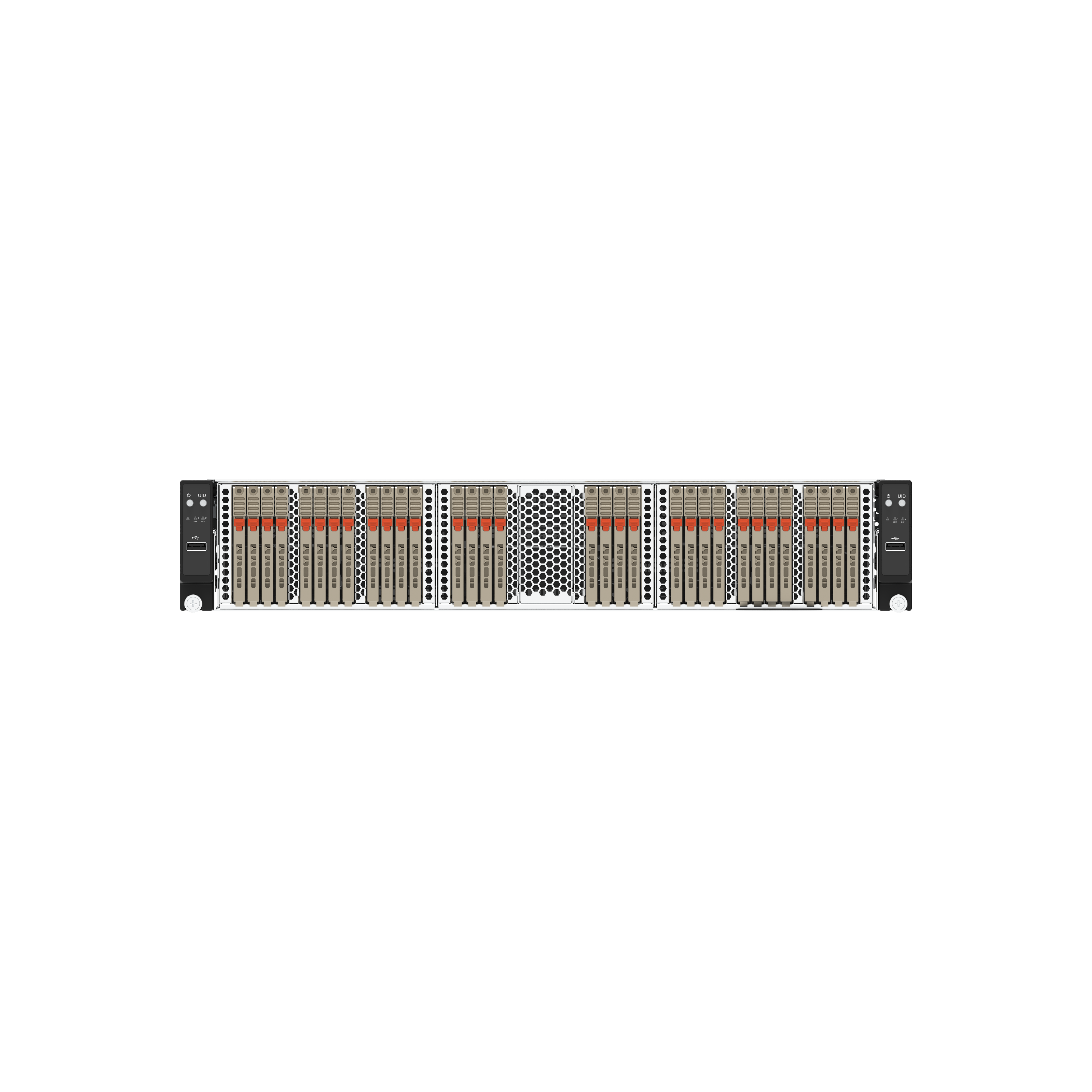

| Storage Bays | |
|
SKU #1 : 32 x E3.S NVMe PCIe 6.0 x4 SKU #2 : 24 x 2.5" U.2 NVMe PCIe 5.0 x4 |
|
| Storage Bays |
SKU #1 : 32 x E3.S NVMe PCIe 6.0 x4 SKU #2 : 24 x 2.5" U.2 NVMe PCIe 5.0 x4 |
| Onboard Storage | |
| 2 x M.2 22110/2280 NVMe | |
| Onboard Storage | 2 x M.2 22110/2280 NVMe |
| Management | |
| Aspeed AST2700 | |
| Management | Aspeed AST2700 |
| Security | |
|
TPM 2.0 PFR 3.0 (Factory Option) |
|
| Security |
TPM 2.0 PFR 3.0 (Factory Option) |
| Networking Interface | |
| 1 x IPMI RJ45 | |
| Networking Interface | 1 x IPMI RJ45 |
| Front I/O Ports | |
|
2 x USB 2.0 Reset button Power button UID button |
|
| Front I/O Ports |
2 x USB 2.0 Reset button Power button UID button |

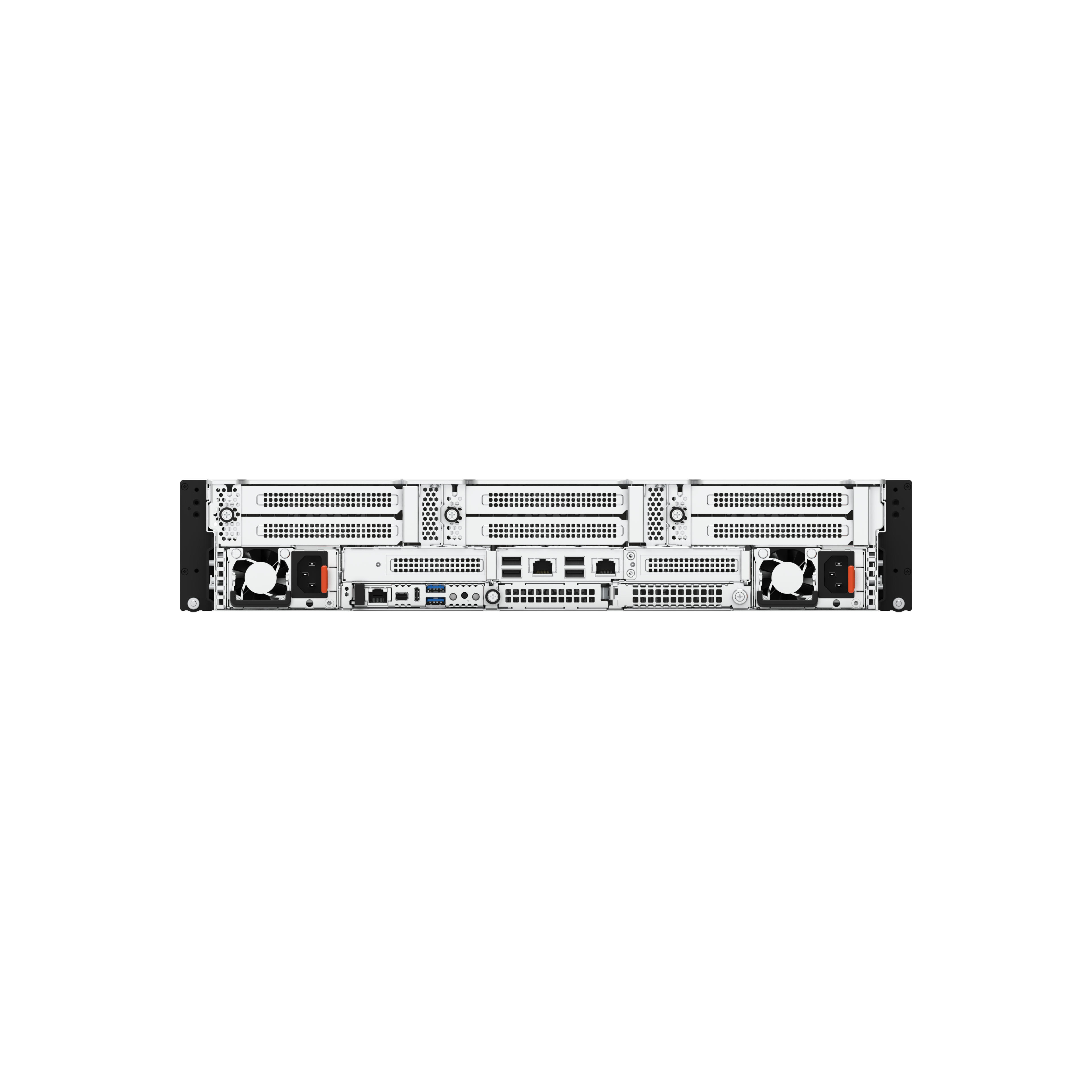

| Rear I/O Ports | |
|
1 x IPMI RJ45 2 x USB 3.0 Type-A 1 x Type-C Console 1 x MiniDP Reset Button UID Button/LED Power Button/LED Status LED |
|
| Rear I/O Ports |
1 x IPMI RJ45 2 x USB 3.0 Type-A 1 x Type-C Console 1 x MiniDP Reset Button UID Button/LED Power Button/LED Status LED |
| Power Supply | |
| 1+1 3200W Titanium CRPS / M-CRPS | |
| Power Supply | 1+1 3200W Titanium CRPS / M-CRPS |
| Fans | |
| 6 x 6056 fans | |
| Fans | 6 x 6056 fans |
