GS202-2T1S
2U 2-Socket, Intel® Xeon® 6 High Performance Server
Key Features
| Form Factor | |
| Form Factor | |
|
Chassis Form Factor 2U |
|
|
Chassis Dimension (W x H x D) 438 x 87 x 770.2 mm 17.2 x 3.4 x 30.3 inch |
|
|
Mainboard Form Factor Full Width MB |
|
|
Mainboard Dimension 427.98 x 484.86 mm |
|
| Processor | |
| Processor | |
|
Number of Processors 2 |
|
|
Processor Type Intel® Xeon® 6500P/6700P/6700E |
|
|
Max. TDP Support Up to 350W [Note] The maximum supported processor TDP is dependent on the system configuration |
|
| GPU | |
|
2 x Dual-slot PCIe GPUs (up to 350W) [Note] With GPU, the CPU TDP is up to 250W at 30°C ambient fan normal condition |
|
| GPU |
2 x Dual-slot PCIe GPUs (up to 350W) [Note] With GPU, the CPU TDP is up to 250W at 30°C ambient fan normal condition |
| Memory | |
| Memory | |
|
Total Slots 32 |
|
|
Memory Type DDR5 RDIMM (Only DDR5-6400 Rated Support): 1DPC: up to 6400MT/s 2DPC: up to 5200MT/S |
|
|
DIMM Capacity (GB per DIMM) 32GB, 64GB, 128GB |
|
| Onboard Storage | |
| 2 x M.2 NVMe SSD 2280/22110 | |
| Onboard Storage | 2 x M.2 NVMe SSD 2280/22110 |
| Management | |
| Aspeed AST2600 | |
| Management | Aspeed AST2600 |
| Security | |
|
1 x TPM 2.0 1 x PFR 3.0 (Factory Option) |
|
| Security |
1 x TPM 2.0 1 x PFR 3.0 (Factory Option) |
| Networking Interface | |
|
1 x OCP 3.0 NIC 1 x RJ45 dedicated IPMI Lan 1 x RJ45 1GbE |
|
| Networking Interface |
1 x OCP 3.0 NIC 1 x RJ45 dedicated IPMI Lan 1 x RJ45 1GbE |

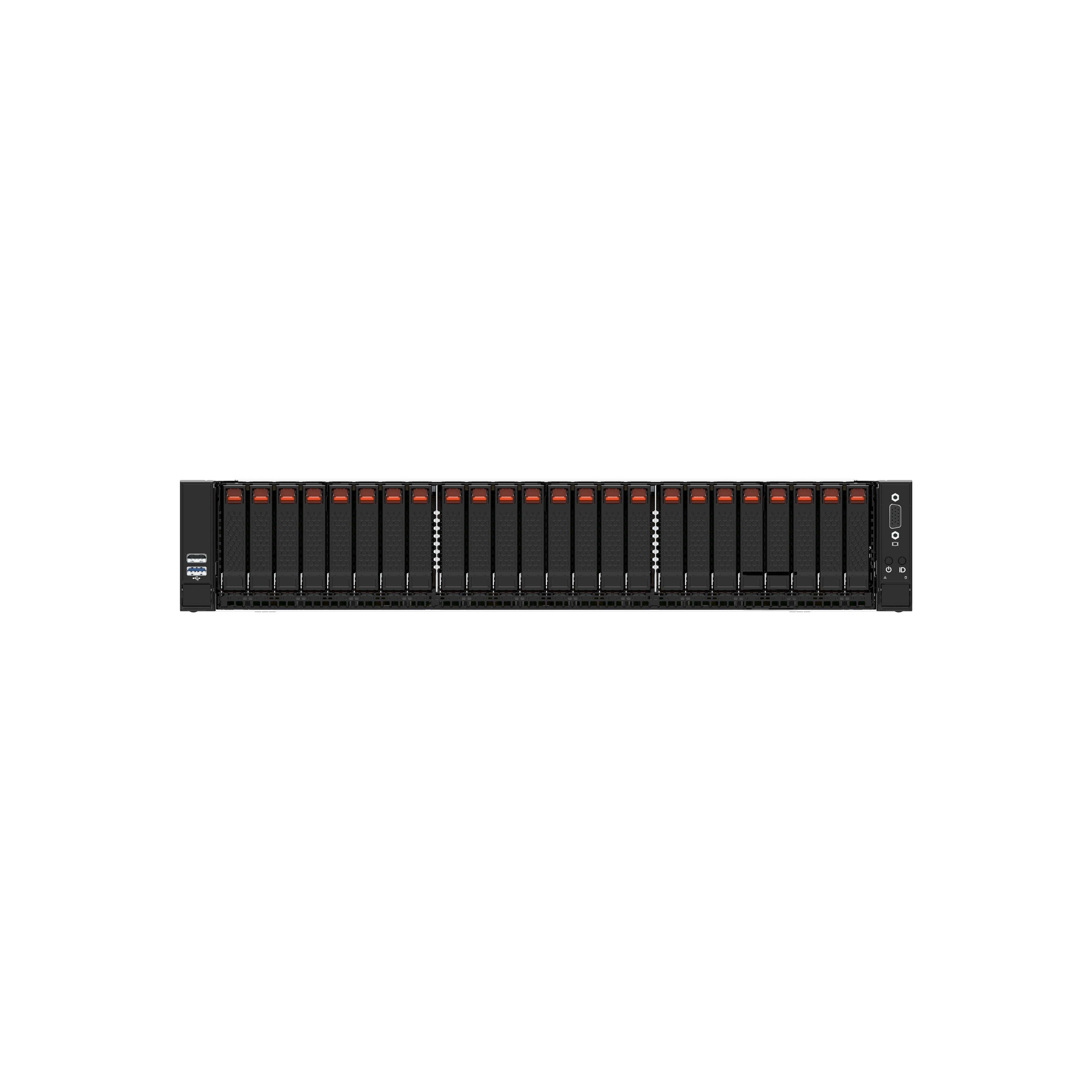

| Front I/O Ports | |
|
2 x USB 2.0 1 x VGA 1 x Power button 1 x ID button |
|
| Front I/O Ports |
2 x USB 2.0 1 x VGA 1 x Power button 1 x ID button |

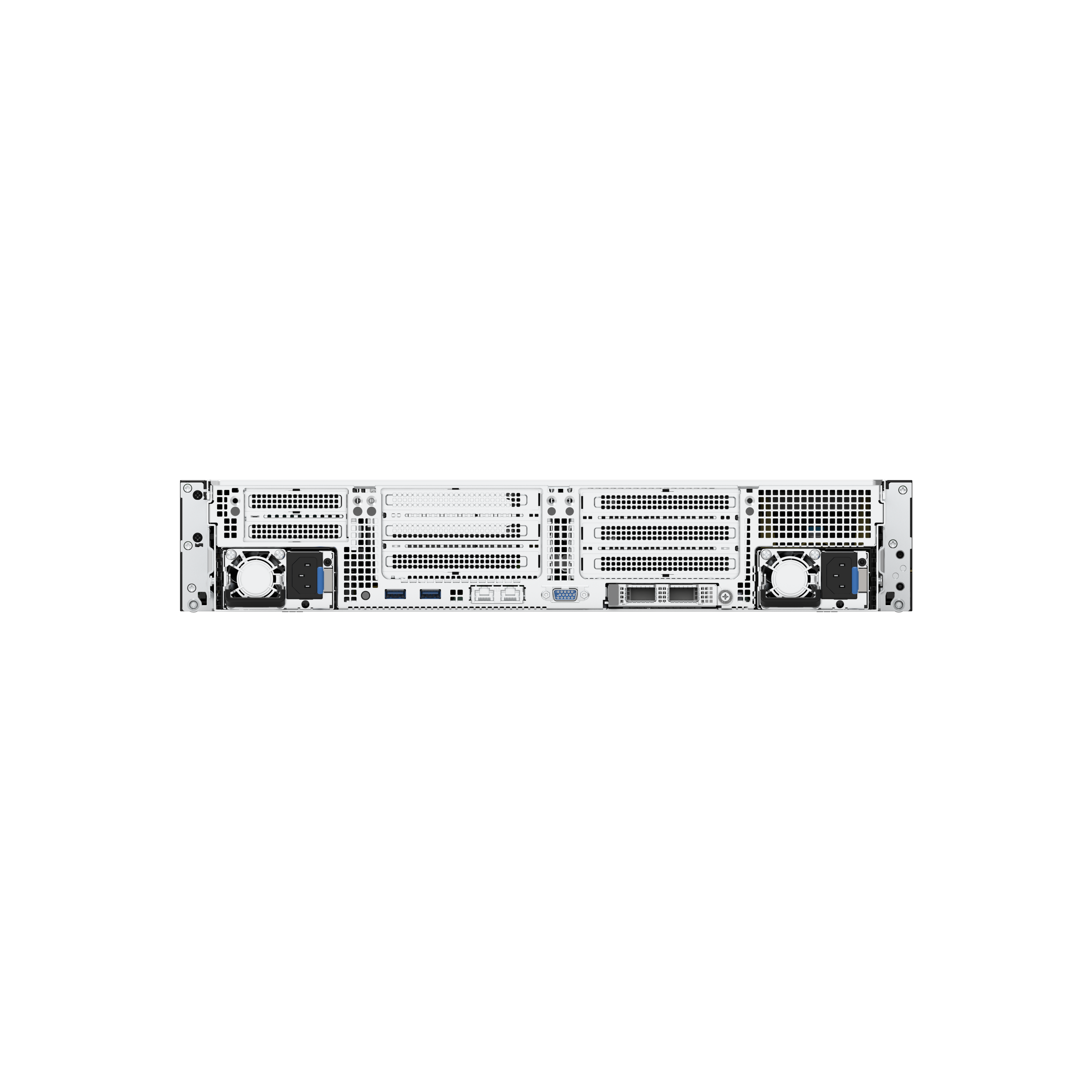

| Rear I/O Ports | |
|
2 x USB 3.2 Gen1 1 x VGA |
|
| Rear I/O Ports |
2 x USB 3.2 Gen1 1 x VGA |
| OS Support | |
|
RedHat RHEL 9.4 Ubuntu 24.04.1 LTS Windows Server 2022 |
|
| OS Support |
RedHat RHEL 9.4 Ubuntu 24.04.1 LTS Windows Server 2022 |
| Power Supply | |
| 1+1 2000W/2400W Titanium CRPS | |
| Power Supply | 1+1 2000W/2400W Titanium CRPS |
| Fans | |
| 6 x 6056 Fans | |
| Fans | 6 x 6056 Fans |
| Operating Environment | |
|
Ambient operating temperature range: 5°C to +35 °C Ambient Non-operating temperature: -40°C to +68 °C Operating relative humidity: 10% to 90%, non-condensing Non-operating relative humidity: up to 93%, non-condensing |
|
| Operating Environment |
Ambient operating temperature range: 5°C to +35 °C Ambient Non-operating temperature: -40°C to +68 °C Operating relative humidity: 10% to 90%, non-condensing Non-operating relative humidity: up to 93%, non-condensing |
