NEW
AS800-2T0-8H1

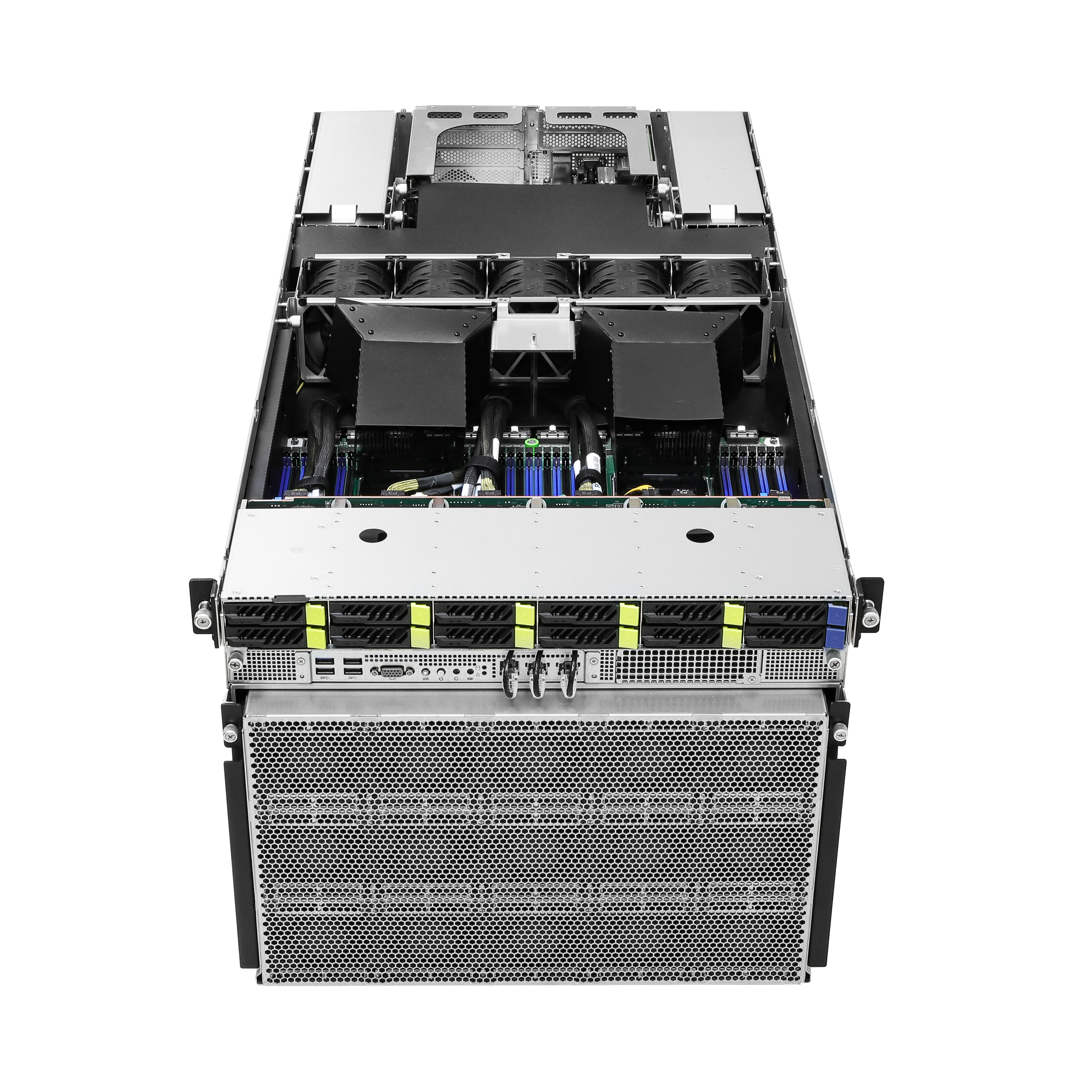

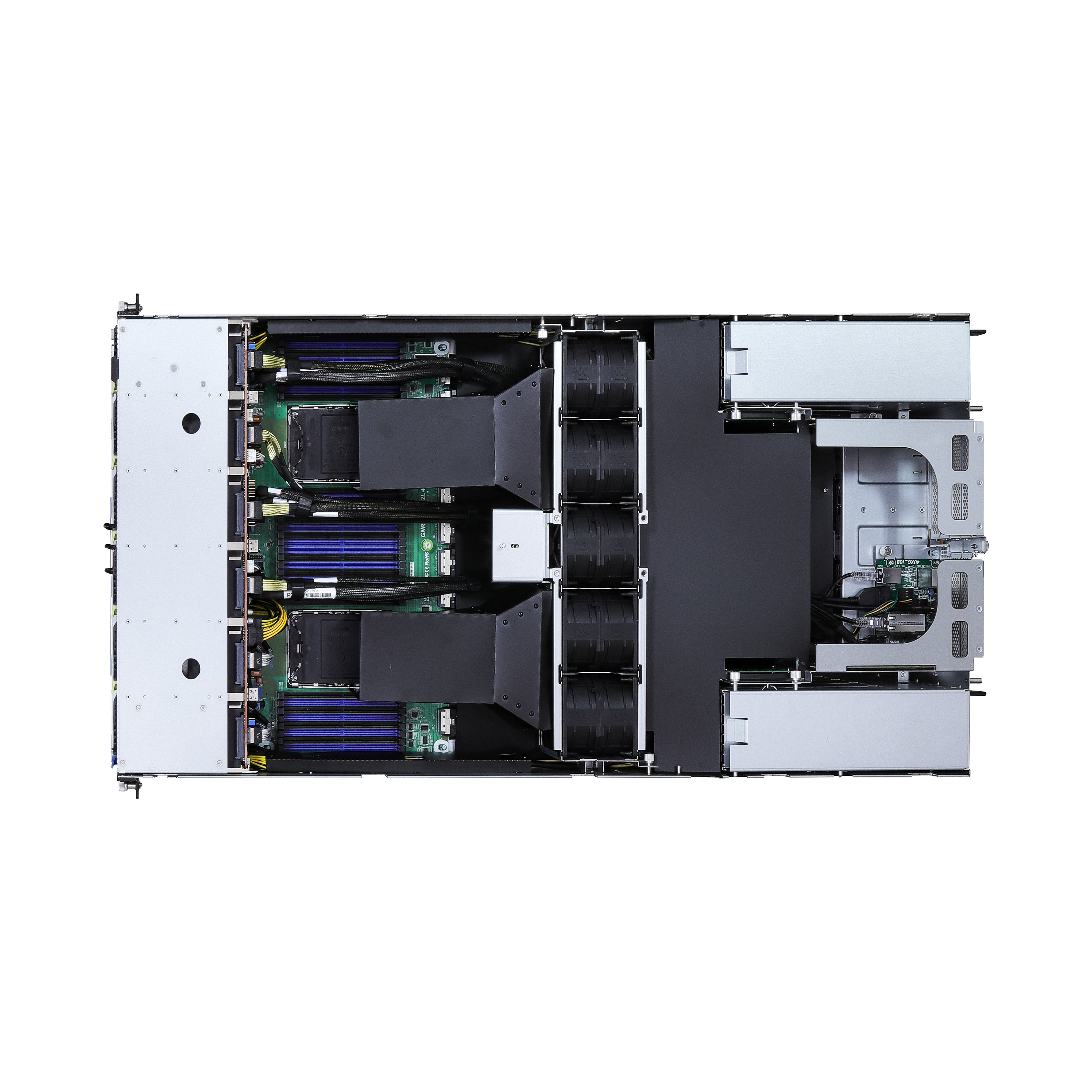

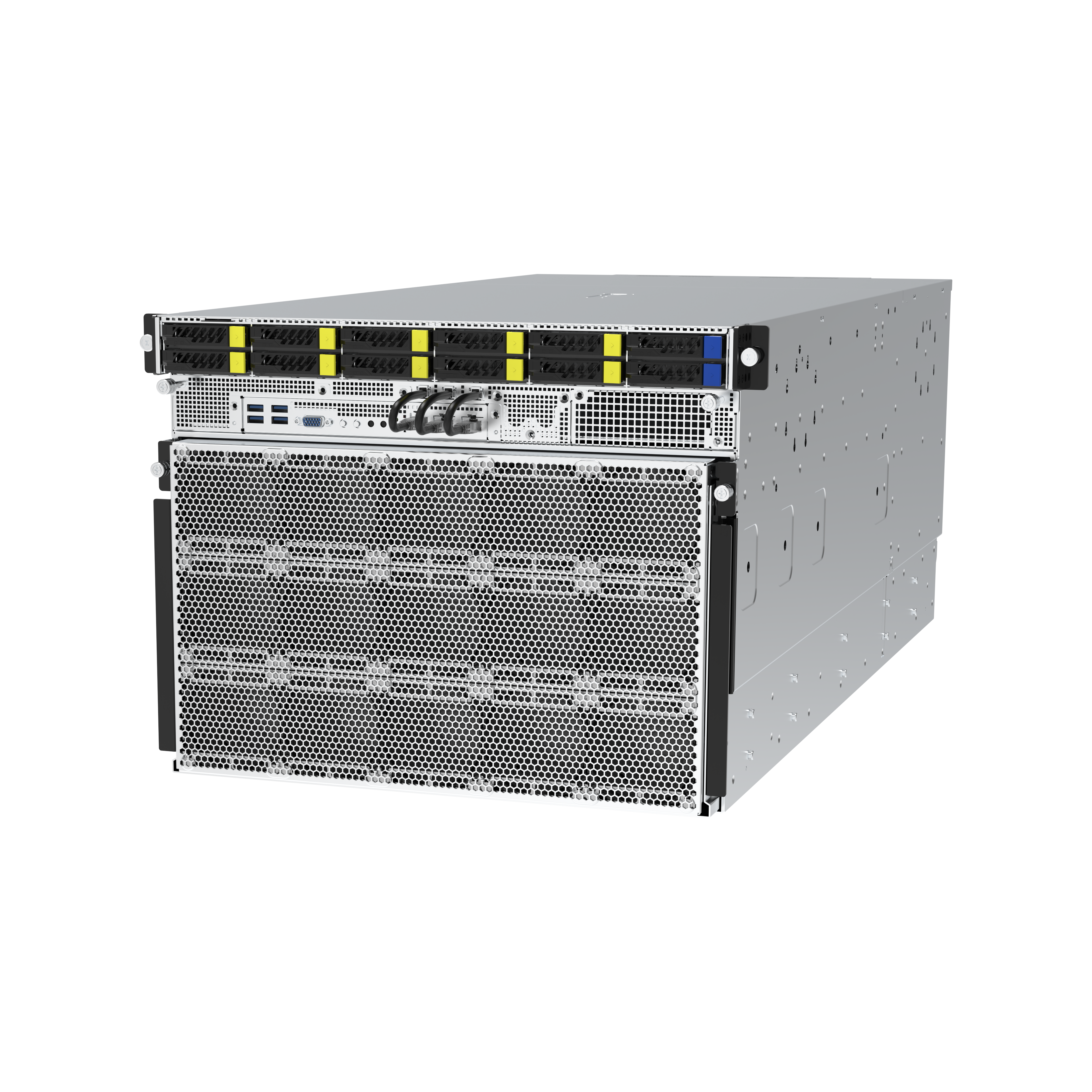

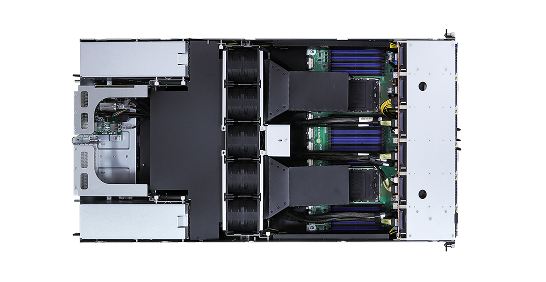

8U 2-Socket NVIDIA HGX™ B200 8-GPU System
Propelling the Data Center into a New Era of Accelerated Computing and Generative AI
Key Features
| Form Factor | |
| Form Factor | |
|
Chassis Form Factor 8U |
|
|
Chassis Dimension (W x H x D) 448 x 353.6 x 930 mm |
|
| Processor | |
| Processor | |
|
Number of Processors 2 |
|
|
Processor Type 5th/4th Gen Intel® Xeon® Scalable processors |
|
|
Max. TDP Support 350W |
|
| GPU | |
| NVIDIA HGXTM B200 8-GPU, 1000W TDP | |
| GPU | NVIDIA HGXTM B200 8-GPU, 1000W TDP |
| Memory | |
| Memory | |
|
Total Slots 32 |
|
|
Memory Type 1DPC: DDR5 RDIMM, 5600 MT/s 2DPC: DDR5 RDIMM, 4400 MT/s |
|
|
DIMM Capacity (GB per DIMM) RDIMM: 96GB RDIMM-3DS: 2H- 128 GB / 4H- 256 GB |
|
| Expansion Slots | |
|
8 x PCIe 5.0 x16 HHHL 2 x PCIe 5.0 x16 FHHL |
|
| Expansion Slots |
8 x PCIe 5.0 x16 HHHL 2 x PCIe 5.0 x16 FHHL |
| Storage Bays | |
|
10 x 2.5" NVMe 2 x 2.5" SATA |
|
| Storage Bays |
10 x 2.5" NVMe 2 x 2.5" SATA |
| Onboard Storage | |
| 2 x M.2 2280/22110 NVMe | |
| Onboard Storage | 2 x M.2 2280/22110 NVMe |
| Management | |
| Aspeed AST2600 | |
| Management | Aspeed AST2600 |
| Security | |
| TPM 2.0 | |
| Security | TPM 2.0 |
| Networking Interface | |
|
2 x 1GbE RJ45 1 x IPMI RJ45 |
|
| Networking Interface |
2 x 1GbE RJ45 1 x IPMI RJ45 |

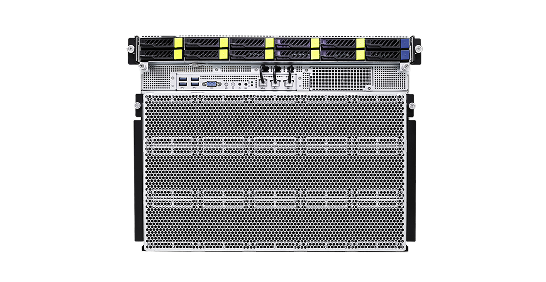

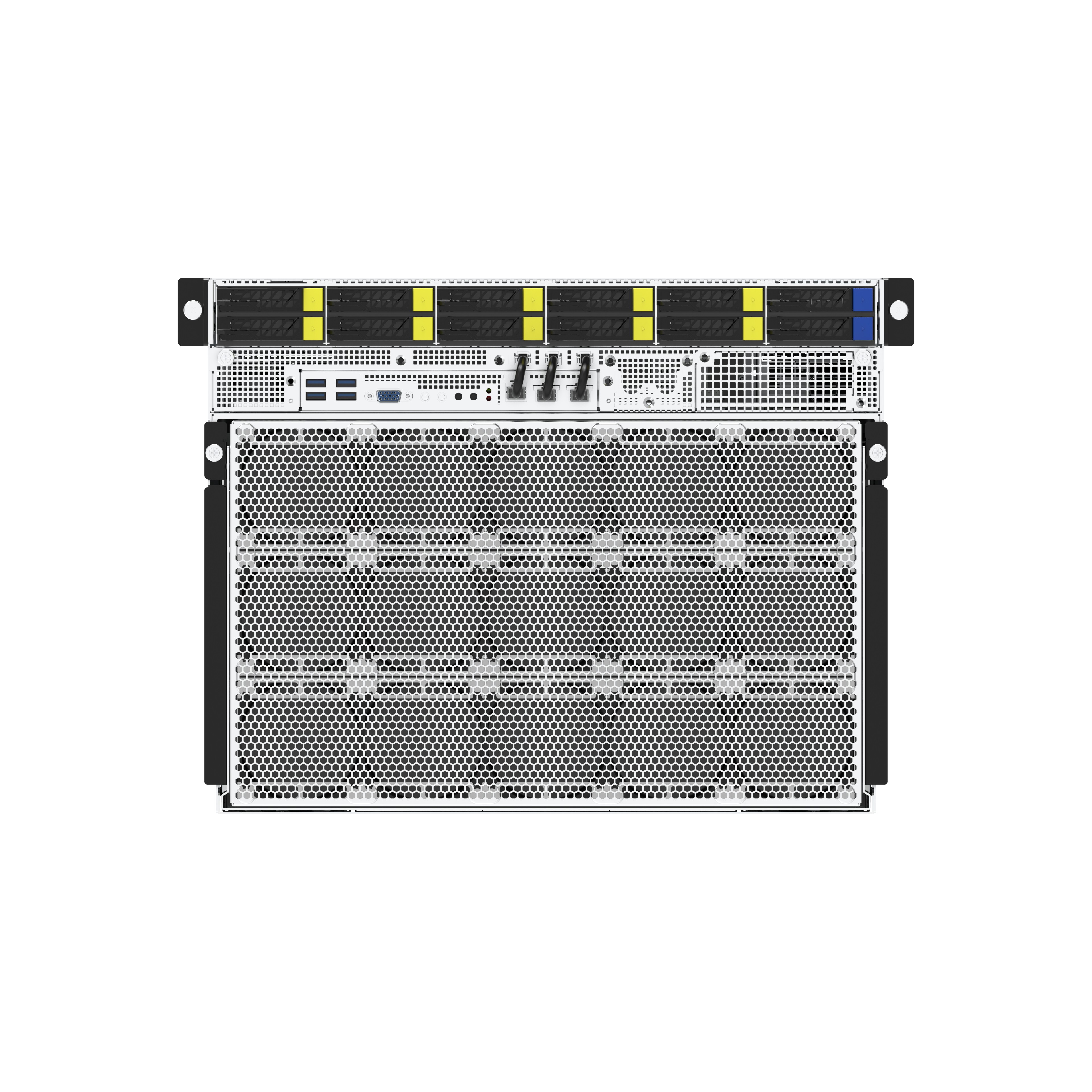

| Front I/O Ports | |
|
2 x 1GbE RJ45 1 x IPMI RJ45 4 x USB 3.2 Gen1 1 x VGA 1 x Power button LED |
|
| Front I/O Ports |
2 x 1GbE RJ45 1 x IPMI RJ45 4 x USB 3.2 Gen1 1 x VGA 1 x Power button LED |

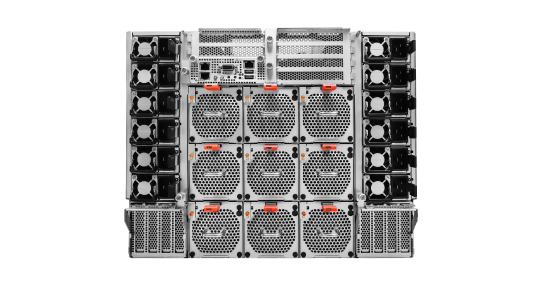

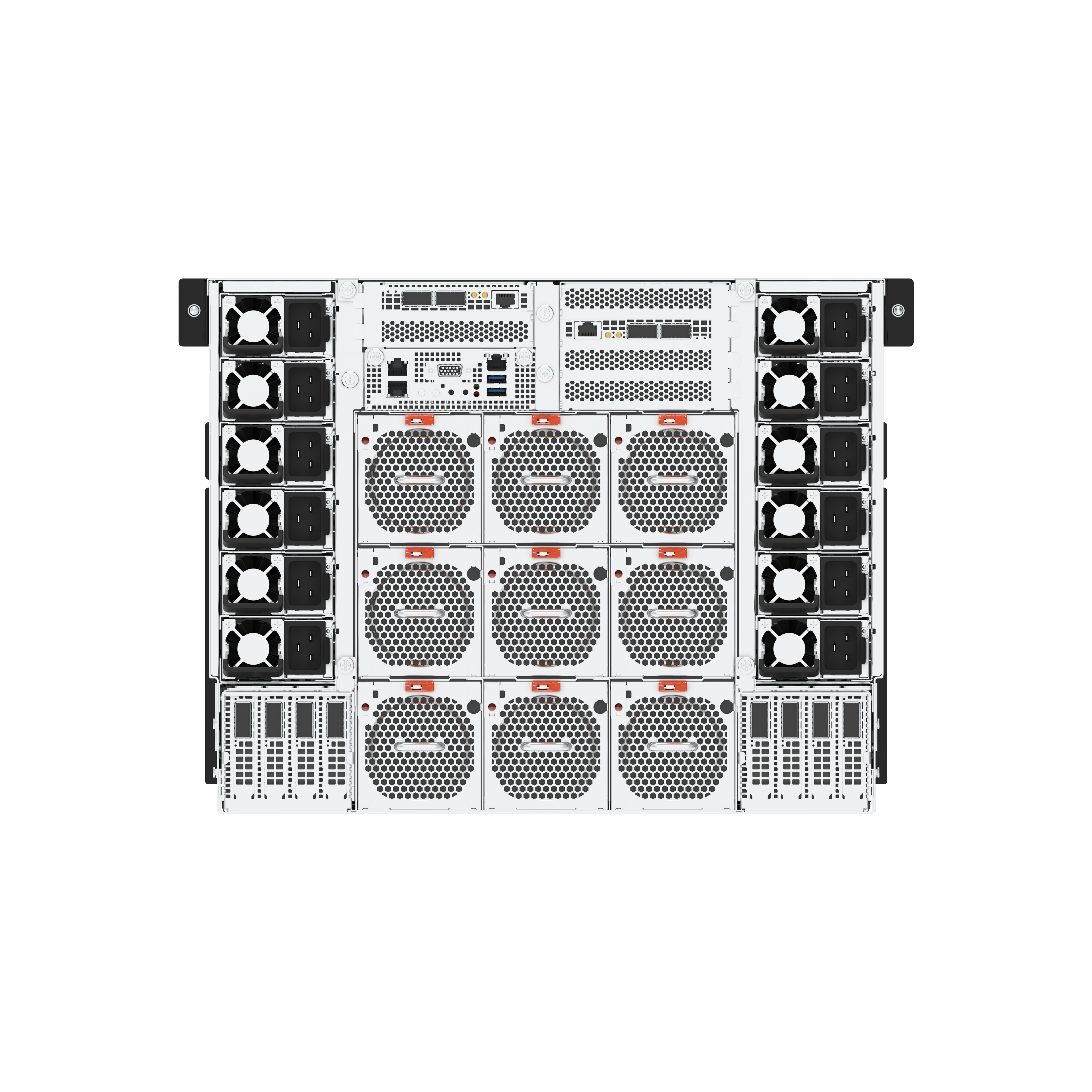

| Rear I/O Ports | |
|
2 x USB 3.2 Gen1 1 x VGA 1 x UID button |
|
| Rear I/O Ports |
2 x USB 3.2 Gen1 1 x VGA 1 x UID button |
| Power Supply | |
| 6+6 3000W Titanium CRPS | |
| Power Supply | 6+6 3000W Titanium CRPS |
| Fans | |
| 29 x 8080 fans + 4 x 4040 fans | |
| Fans | 29 x 8080 fans + 4 x 4040 fans |
| Operating Environment | |
|
Operating temperature: 10°C to 35°C Non-operating temperature: -40°C to 70°C Non-operating humidity: 20% to 90% (Non- condensing) |
|
| Operating Environment |
Operating temperature: 10°C to 35°C Non-operating temperature: -40°C to 70°C Non-operating humidity: 20% to 90% (Non- condensing) |
