NEW
AS404-2A1-8I2

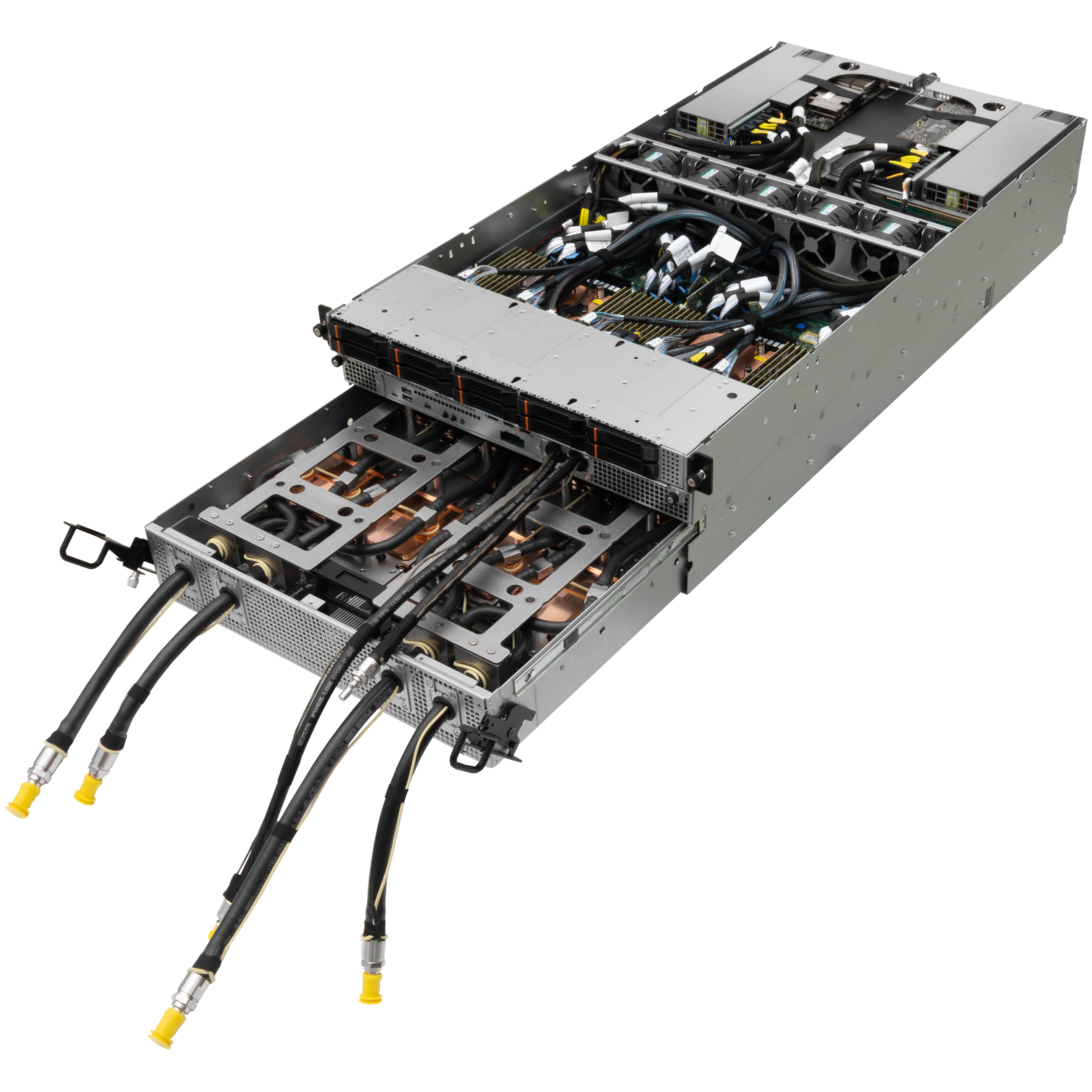

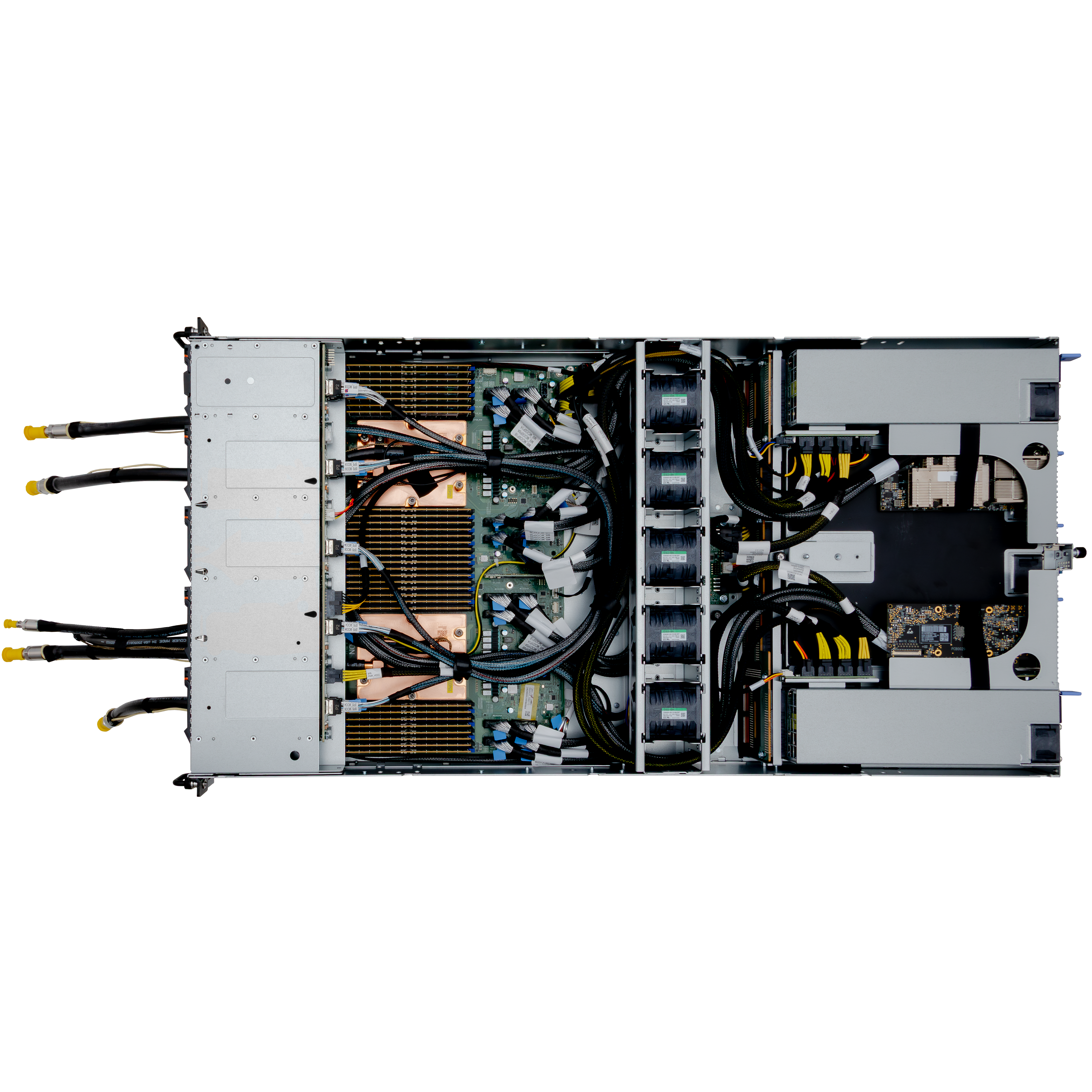

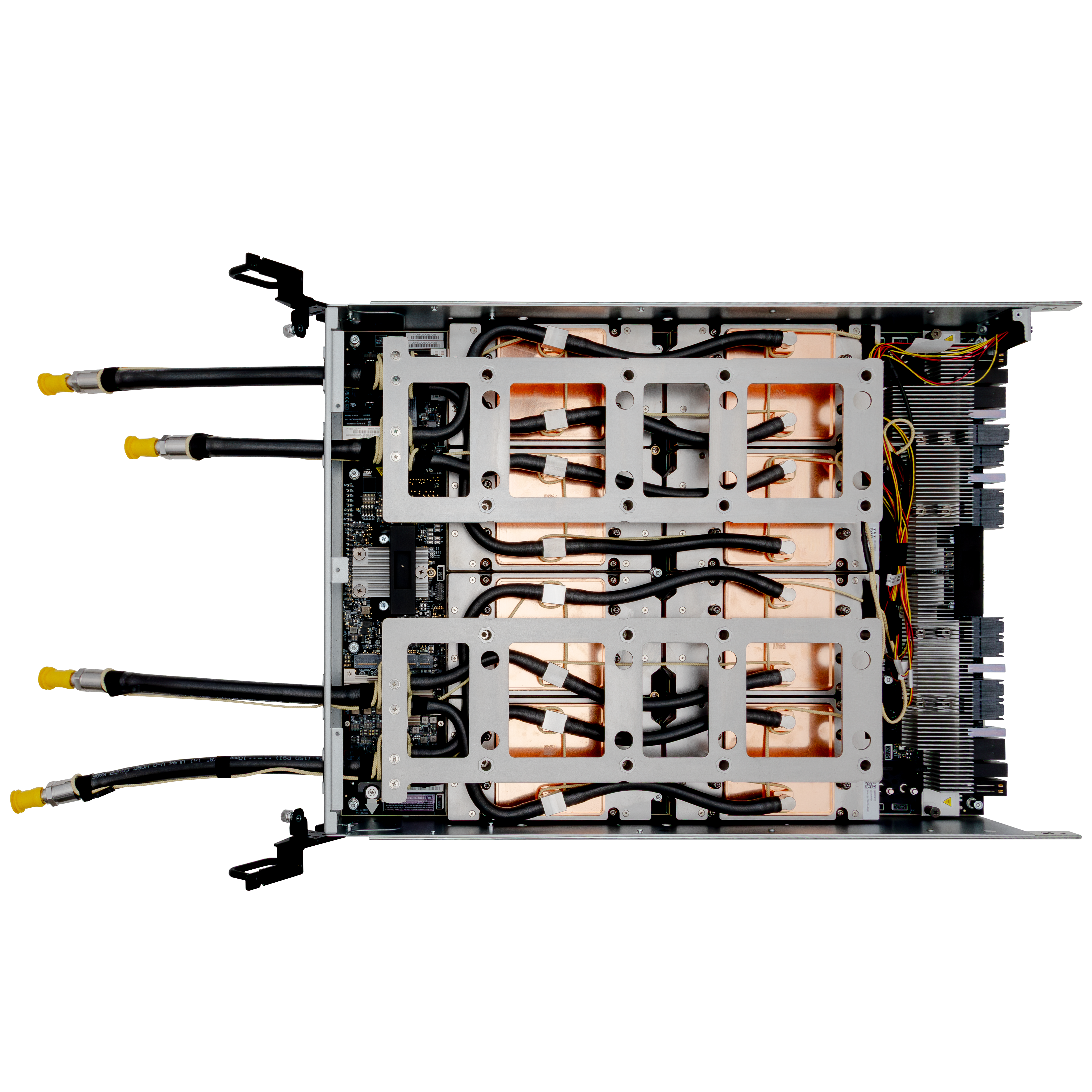

4U 2-Socket, Liquid-Cooled, AMD EPYC™ 9005 with AMD Instinct™ MI355X 8-GPU System, Ultimate AI & HPC Performance
Key Features
| Form Factor | |
| Form Factor | |
|
Chassis Form Factor 4U |
|
|
Chassis Dimension (W x H x D) 448 x 175 x 900 mm 17.6 x 6.9 x 35.4 inch |
|
| Processor | |
| Processor | |
|
Number of Processors 2 |
|
|
Processor Type AMD EPYC™ 9005 processors |
|
|
Max. TDP Support 500W |
|
| GPU | |
| AMD Instinct™ MI355X 8-GPU, 1400W TDP | |
| GPU | AMD Instinct™ MI355X 8-GPU, 1400W TDP |
| Memory | |
| Memory | |
|
Total Slots 32 x DDR5 DIMM slots |
|
|
Memory Type DDR5 RDIMM (6400 MT/s rated): 5200 MT/s when populated in DIMM 1 4400 MT/s (1R) / 4000 MT/s (2R) when populated in DIMM 1 and DIMM0 |
|
| Expansion Slots | |
|
8 x PCIe 5.0 x16 HHHL for GPU NIC 2 x PCIe 5.0 x16 FHHL for system NIC |
|
| Expansion Slots |
8 x PCIe 5.0 x16 HHHL for GPU NIC 2 x PCIe 5.0 x16 FHHL for system NIC |
| Storage Bays | |
|
8 x 2.5" U.2 NVMe PCIe 5.0 x4 2 x 2.5" U.2 NVMe PCIe 5.0 x4 for OS |
|
| Storage Bays |
8 x 2.5" U.2 NVMe PCIe 5.0 x4 2 x 2.5" U.2 NVMe PCIe 5.0 x4 for OS |
| Management | |
| IPMI 2.0 (Aspeed AST2600) | |
| Management | IPMI 2.0 (Aspeed AST2600) |
| Security | |
| TPM 2.0 | |
| Security | TPM 2.0 |
| Networking Interface | |
|
1 x 1GbE RJ45 1 x IPMI RJ45 |
|
| Networking Interface |
1 x 1GbE RJ45 1 x IPMI RJ45 |

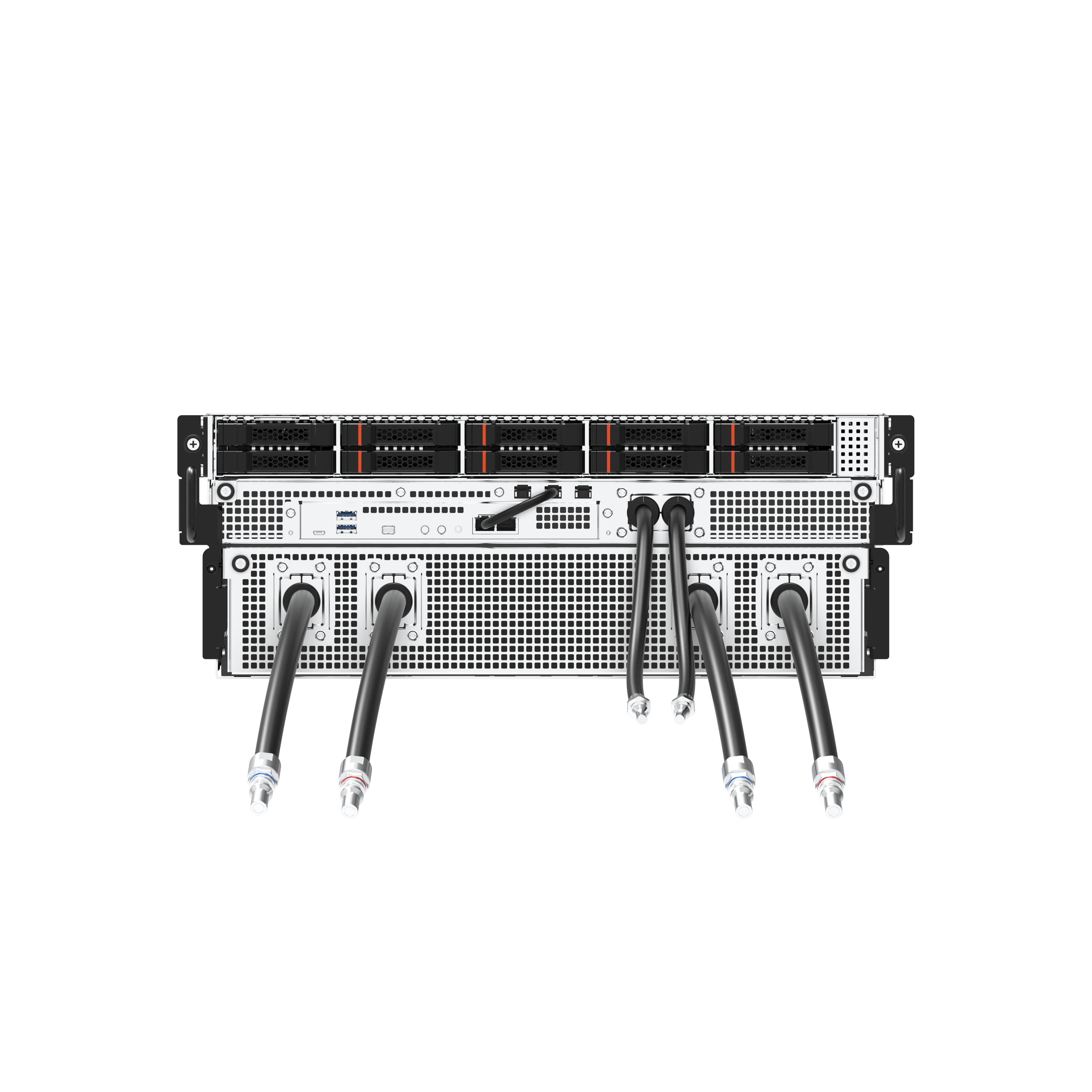

| Front I/O Ports | |
|
1 x 1GbE RJ45 1 x IPMI RJ45 2 x USB 3.0 1 x Mini-DP Power button / UID button / reset button / NMI button |
|
| Front I/O Ports |
1 x 1GbE RJ45 1 x IPMI RJ45 2 x USB 3.0 1 x Mini-DP Power button / UID button / reset button / NMI button |

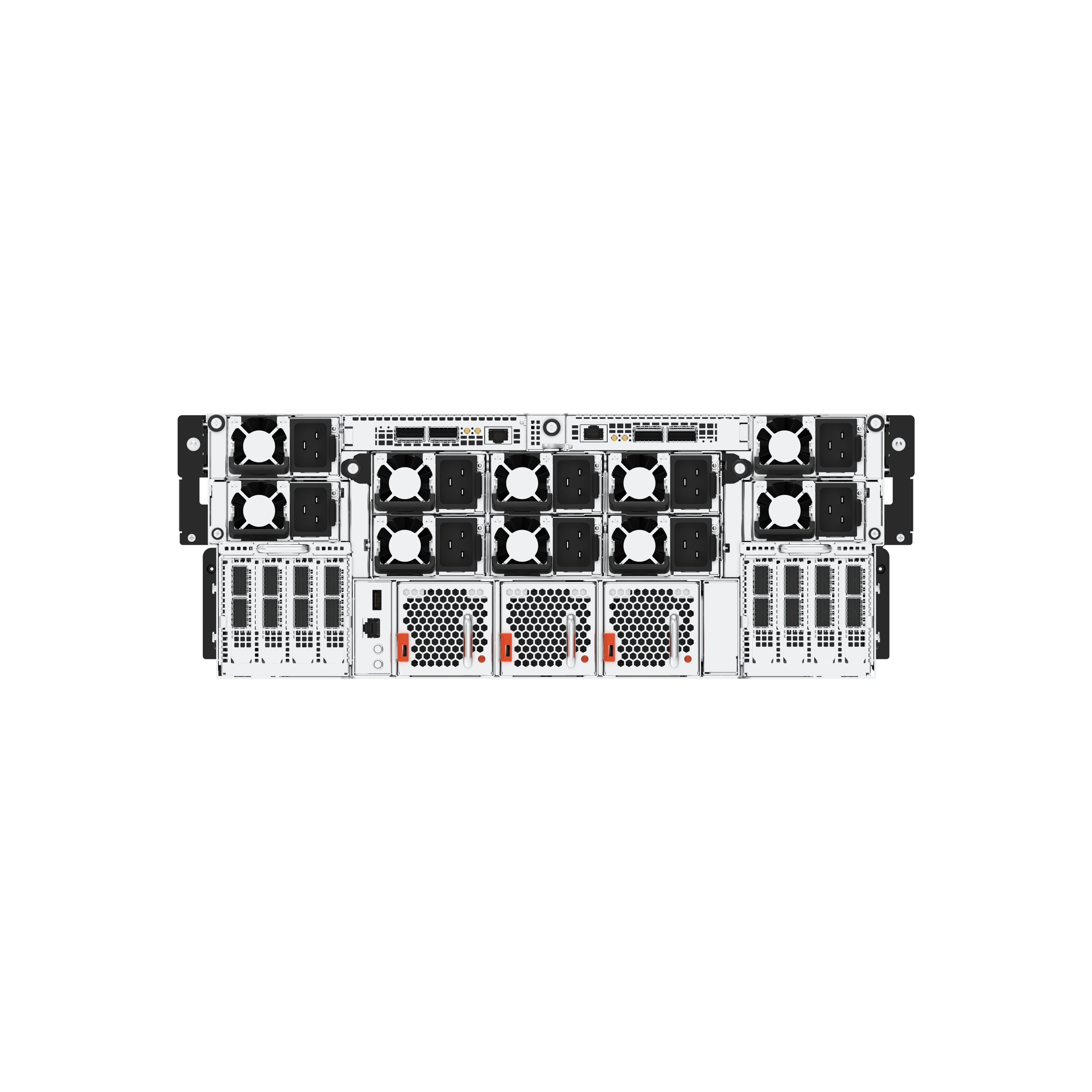

| Rear I/O Ports | |
|
1 x USB 3.0 1 x IPMI RJ45, shares with front panel Power button / UID button |
|
| Rear I/O Ports |
1 x USB 3.0 1 x IPMI RJ45, shares with front panel Power button / UID button |
| Power Supply | |
| 5+5 80-PLUS Titanium, 3000W CRPS | |
| Power Supply | 5+5 80-PLUS Titanium, 3000W CRPS |
| Fans | |
|
Liquid-cooled 8 x 6056 fans 4 x 4056 fans |
|
| Fans |
Liquid-cooled 8 x 6056 fans 4 x 4056 fans |
| Operating Environment | |
|
Ambient operating temperature range: 5°C to 35 °C Ambient non-operating temperature: -40°C to 68 °C Operating relative humidity: 10% to 90% (non-condensing) Non-operating relative humidity: up to 93% (non-condensing) |
|
| Operating Environment |
Ambient operating temperature range: 5°C to 35 °C Ambient non-operating temperature: -40°C to 68 °C Operating relative humidity: 10% to 90% (non-condensing) Non-operating relative humidity: up to 93% (non-condensing) |
