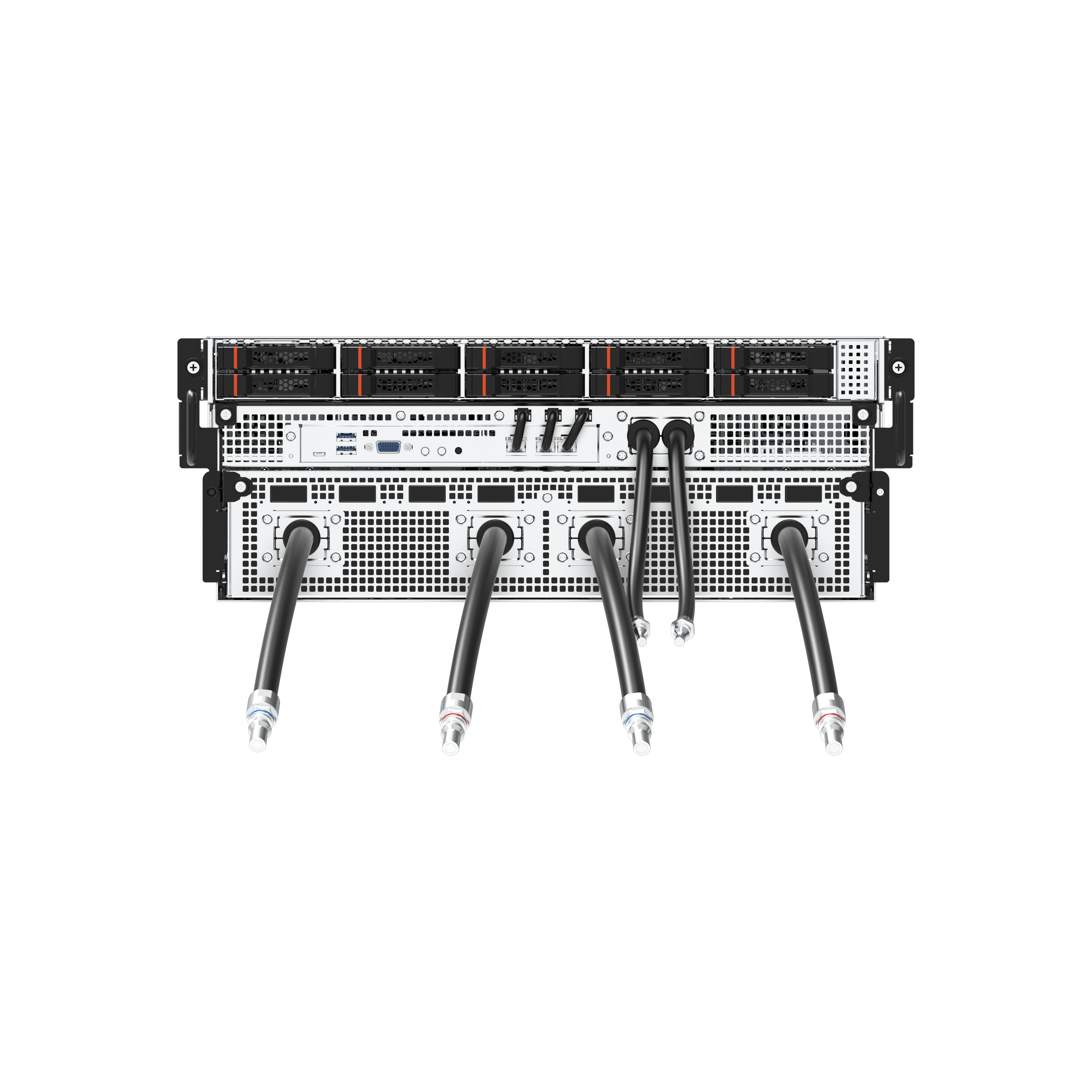

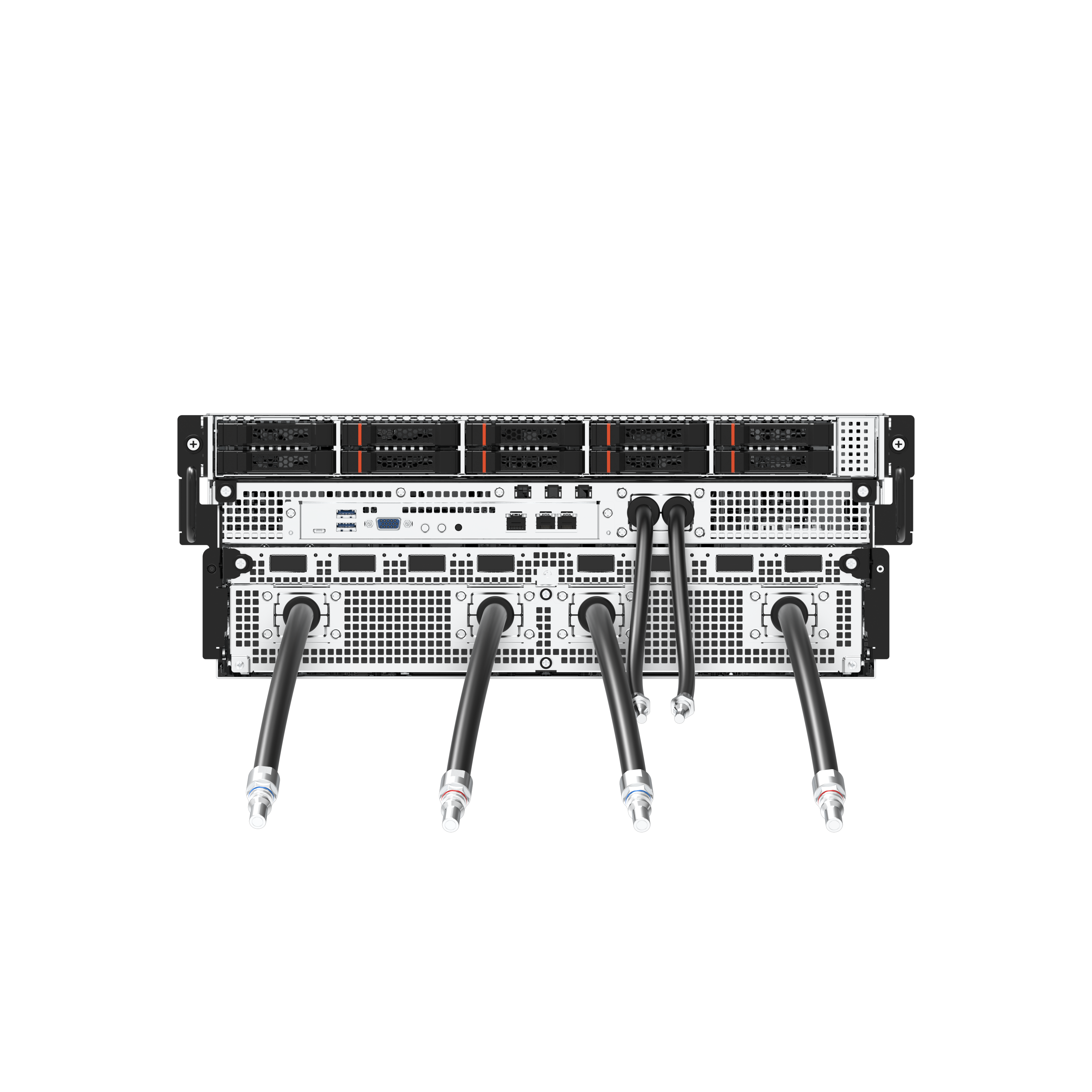

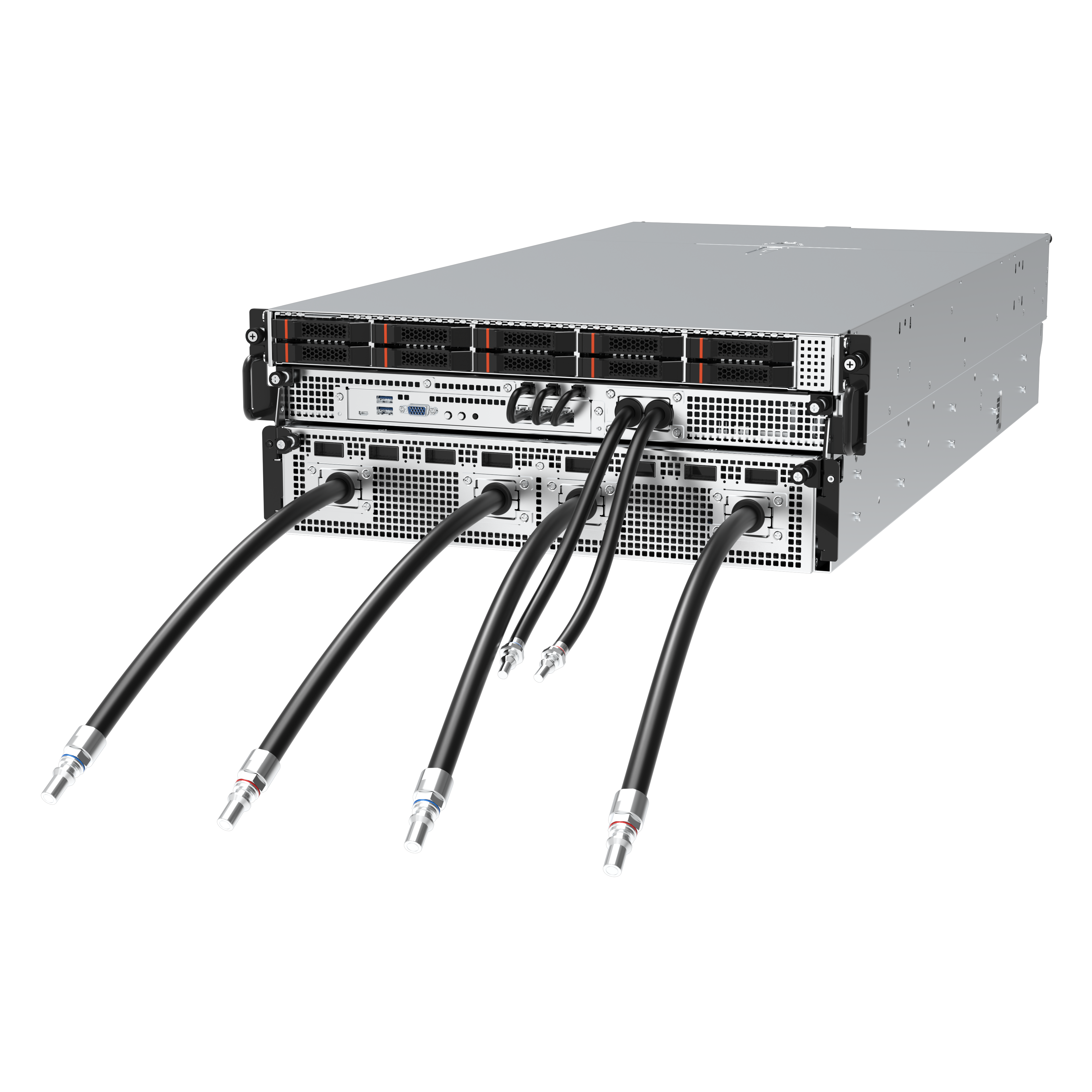

AS402-2T1-8H2
4U 2-Socket, NVIDIA HGX™ B300 8-GPU, Built for the Age of AI Reasoning for Every Data Center
- ⦁ NVIDIA HGX™ B300 8-GPU, TDP up to 1100W
- ⦁ Dual Intel® Xeon® 6 processors, TDP up to 350W
- ⦁ 32 x DDR5 DIMM slots
- ⦁ GPU memory 2.3TB HBM3e (8 x 288GB)
- ⦁ 8 x U.2 NVMe SSD PCIe 5.0 x4 + 2 x U.2 NVMe SSD PCIe 5.0 x5 for OS
- ⦁ 2 x PCIe 5.0 x16 FHHL
- ⦁ 8 x Integrated NVIDIA ConnectX®-8 OSFP Ports (800Gb/s)
- ⦁ 5+5 3000W Titanium CRPS
Key Features
- 1. NVIDIA HGX™ B300 8-GPU, TDP up to 1100W
- 2. Dual Intel® Xeon® 6 processors, TDP up to 350W
- 3. 32 x DDR5 DIMM slots
- 4. GPU memory 2.3TB HBM3e (8 x 288GB)
- 5. 8 x U.2 NVMe SSD PCIe 5.0 x4 + 2 x U.2 NVMe SSD PCIe 5.0 x5 for OS
- 6. 2 x PCIe 5.0 x16 FHHL
- 7. 8 x Integrated NVIDIA ConnectX®-8 OSFP Ports (800Gb/s)
- 8. 5+5 3000W Titanium CRPS
| Form Factor | |
| Form Factor | |
|
Chassis Form Factor 4U |
|
|
Chassis Dimension (W x H x D) 448 x 175 x 900 mm |
|

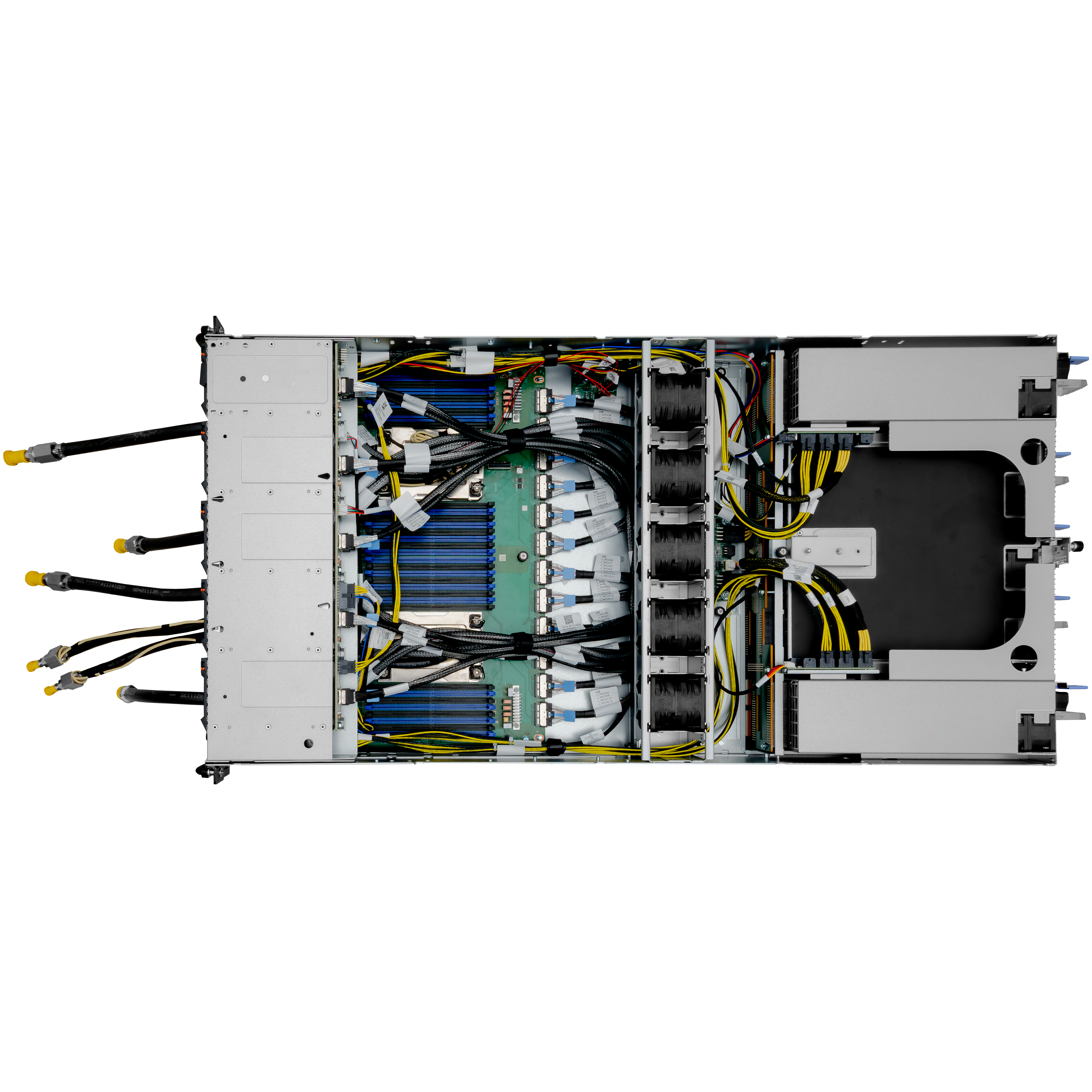

| Processor | |
| Processor | |
|
Number of Processors 2 |
|
|
Processor Type Intel® Xeon® 6 |
|
|
Max. TDP Support 350W |
|

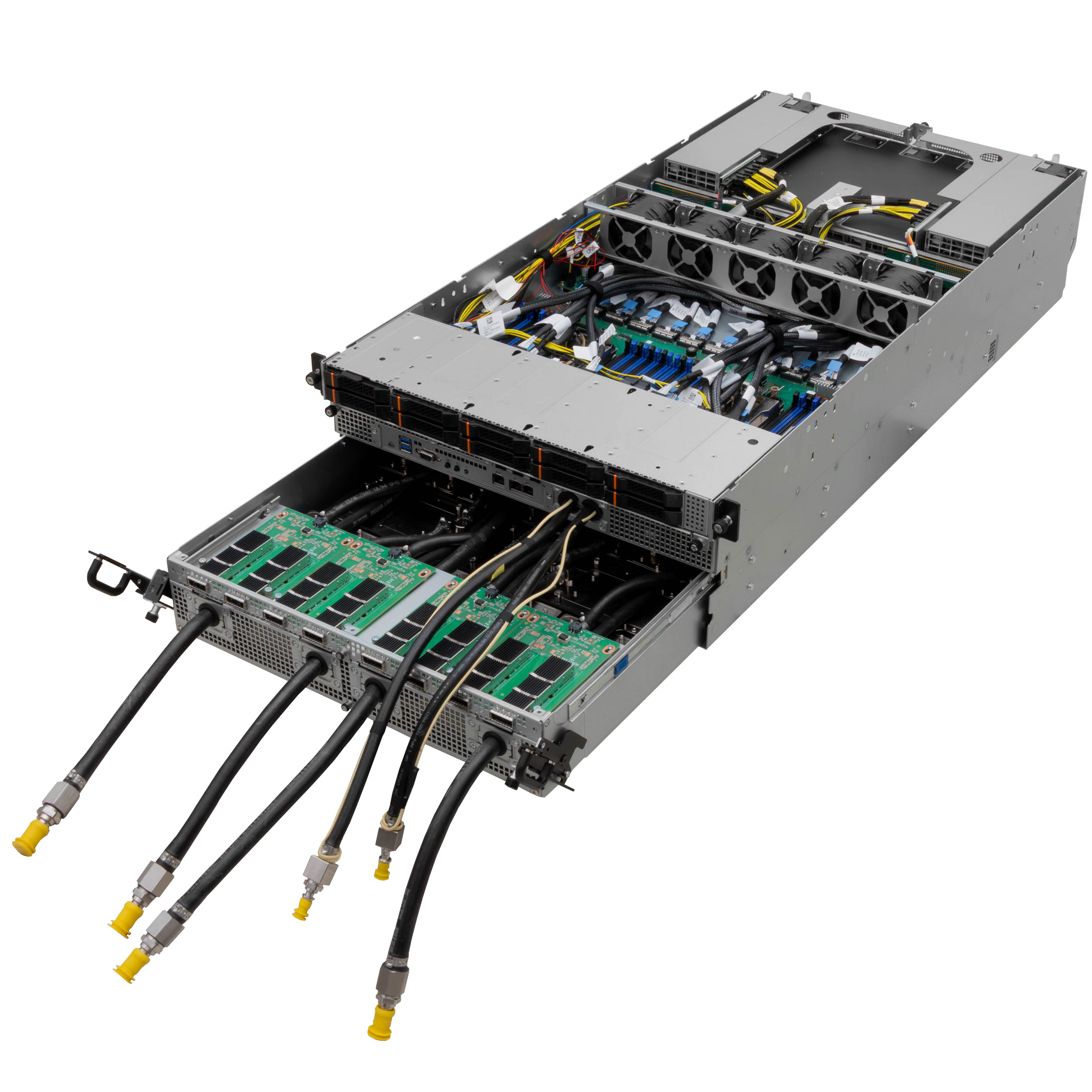

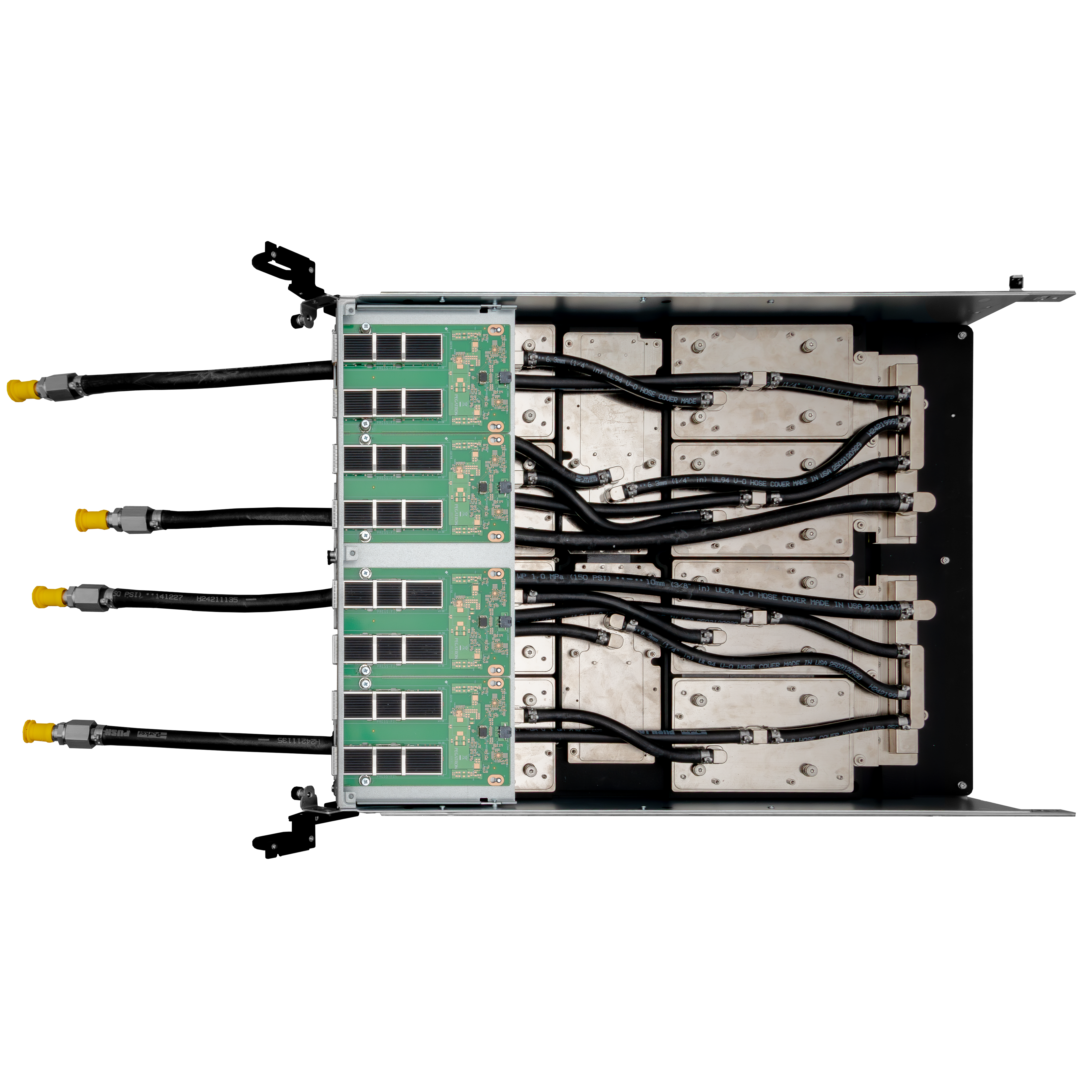

| GPU | |
| NVIDIA HGX™ B300 8-GPU, TDP up to 1100W | |
| GPU | NVIDIA HGX™ B300 8-GPU, TDP up to 1100W |
| Memory | |
| Memory | |
|
Total Slots 32 x DDR5 DIMM slots |
|
|
Memory Type 1DPC: 6400MT/s 2DPC: 5200 MT/s |
|
| Expansion Slots | |
| Expansion Slots | |
|
SKU - #1 2 x PCIe 5.0 x16 FHHL |
|
| Storage Bays | |
| Storage Bays | |
|
SKU - #1 8 x PCIe 5.0 x4 U.2 2 x PCIe 5.0 x4 U.2 for OS |
|
| Management | |
| IPMI2.0 (Aspeed AST2600) | |
| Management | IPMI2.0 (Aspeed AST2600) |
| Security | |
| TPM 2.0 | |
| Security | TPM 2.0 |
| Networking Interface | |
| 8 x Integrated NVIDIA ConnectX®-8 OSFP Ports (800Gb/s) | |
| Networking Interface | 8 x Integrated NVIDIA ConnectX®-8 OSFP Ports (800Gb/s) |
| Front I/O Ports | |
|
Power Button/Reset Button/NMI Button/UID Button 4 x USB 3.0 port 1 x DB15 1 x IPMI RJ-45, 2 x RJ-45 1G Base-T via i350 |
|
| Front I/O Ports | Power Button/Reset Button/NMI Button/UID Button 4 x USB 3.0 port 1 x DB15 1 x IPMI RJ-45, 2 x RJ-45 1G Base-T via i350 |

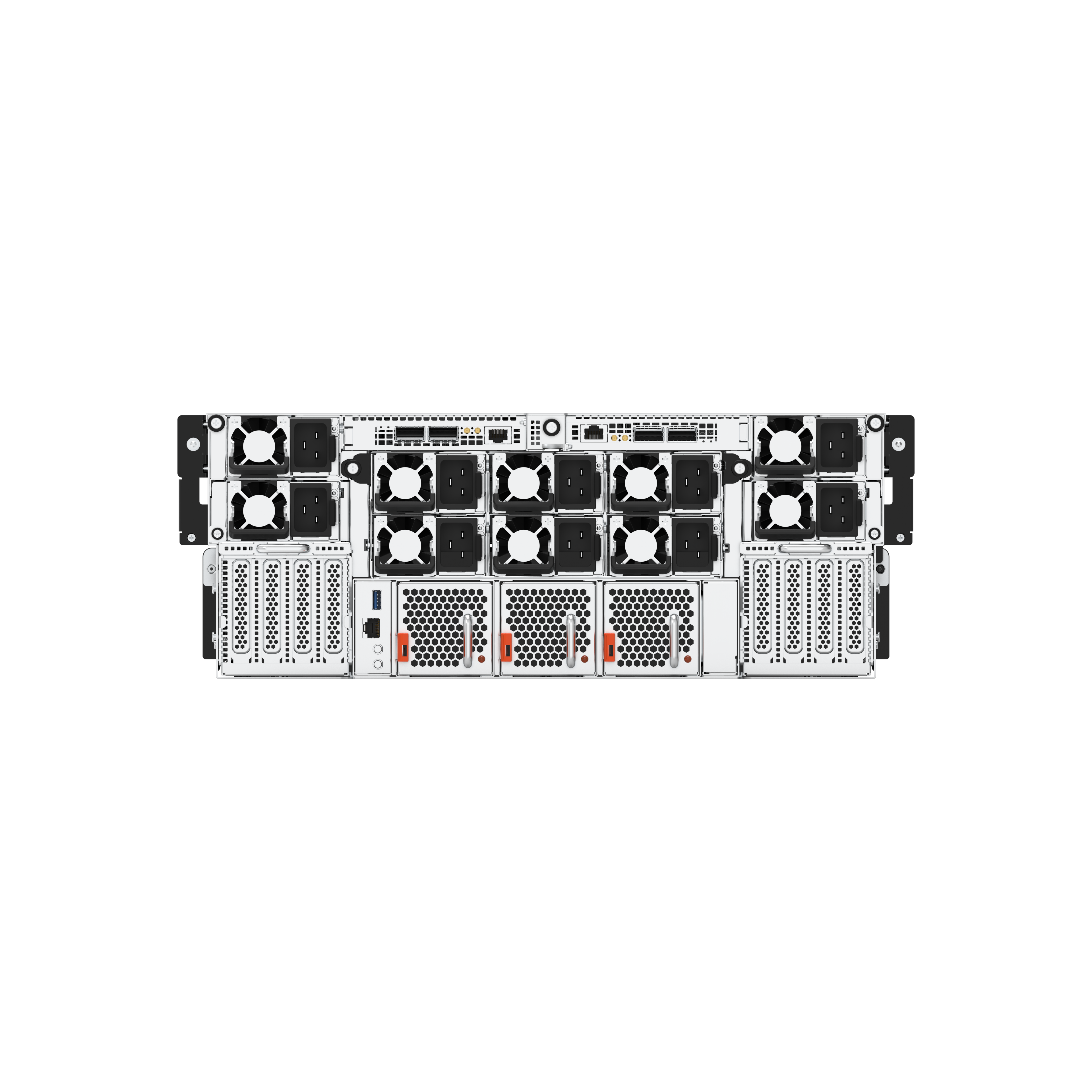

| Rear I/O Ports | |
|
UID Button 2 x USB 3.0 port 1 x DB15 1 x IPMI RJ-45, shares with front panel 2 x RJ-45 1G Base-T via i350, shares with front panel |
|
| Rear I/O Ports | UID Button 2 x USB 3.0 port 1 x DB15 1 x IPMI RJ-45, shares with front panel 2 x RJ-45 1G Base-T via i350, shares with front panel |
| OS Support | |
|
Red Hat Enterprise Linux 9.2 or later Ubuntu 22.04 LTS |
|
| OS Support | Red Hat Enterprise Linux 9.2 or later Ubuntu 22.04 LTS |
| Power Supply | |
| 5+5 3000W Titanium CRPS | |
| Power Supply | 5+5 3000W Titanium CRPS |
| Fans | |
| 10 x 6056 Fans | |
| Fans | 10 x 6056 Fans |
| Operating Environment | |
|
Ambient operating temperature range: 5°C to +35 °C Ambient non-operating temperature: -40°C to +68 °C Operating relative humidity: 10% to 90% (non-condensing) Non-operating relative humidity: up to 93% (non-condensing) |
|
| Operating Environment | Ambient operating temperature range: 5°C to +35 °C Ambient non-operating temperature: -40°C to +68 °C Operating relative humidity: 10% to 90% (non-condensing) Non-operating relative humidity: up to 93% (non-condensing) |
