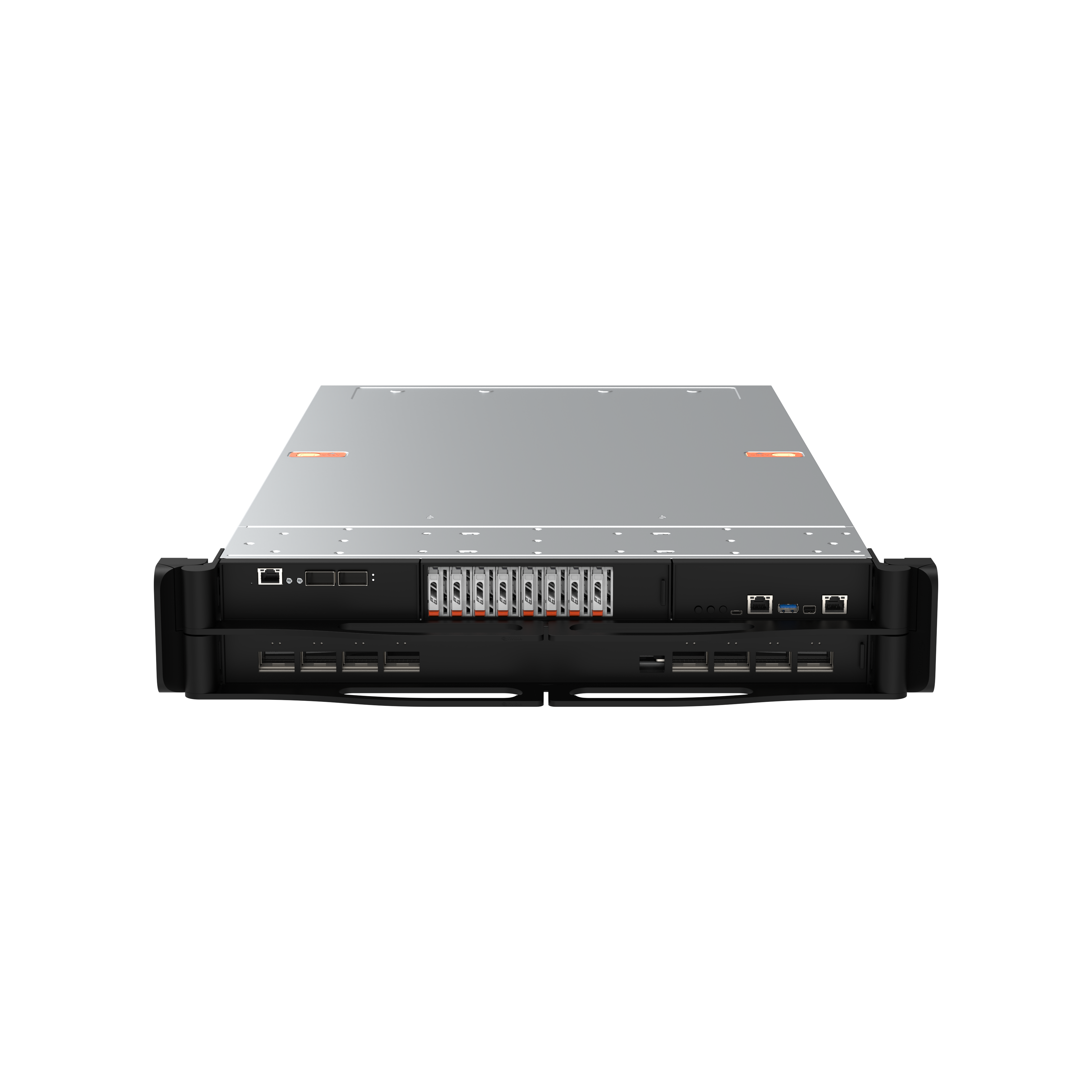

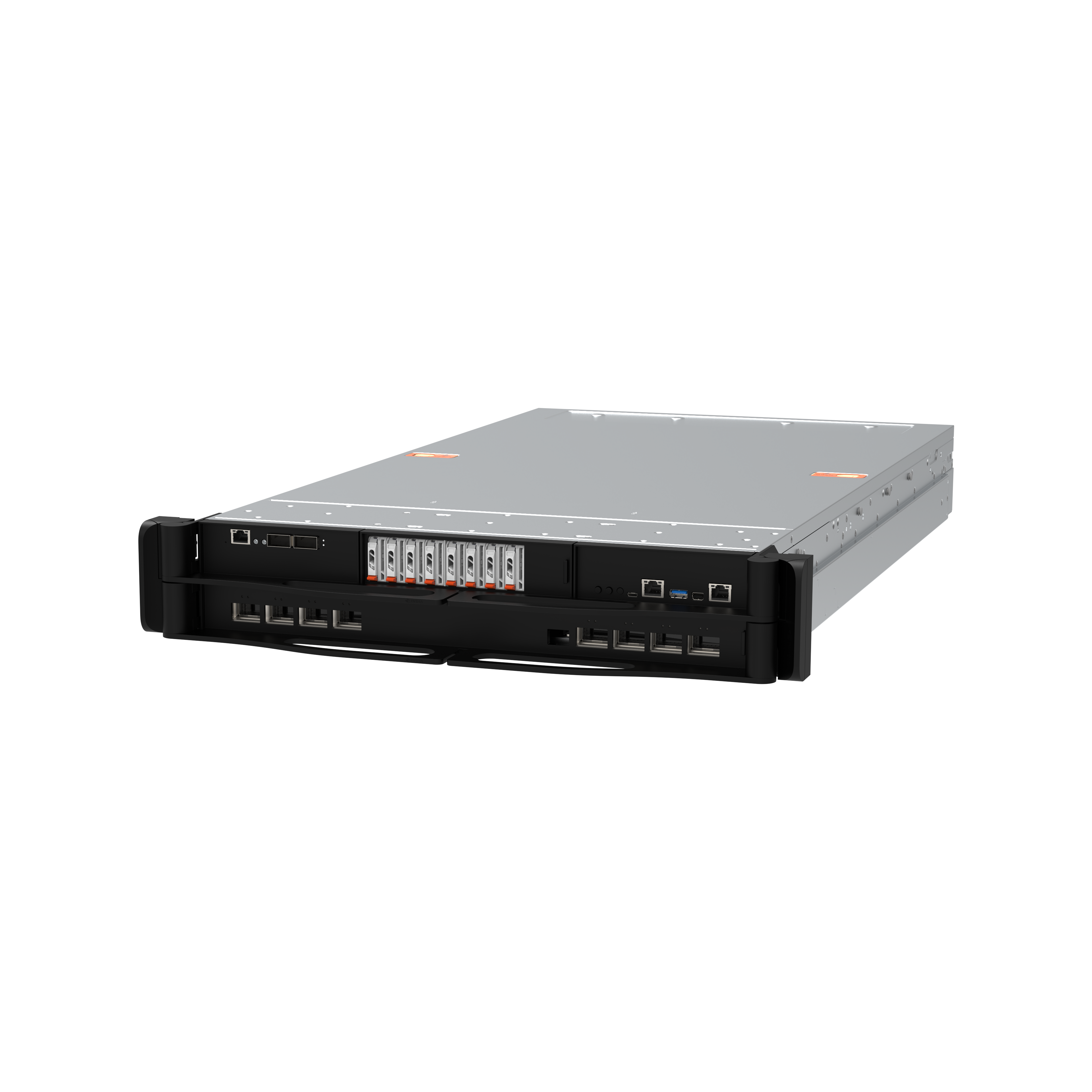

AS210-2T1-8H3

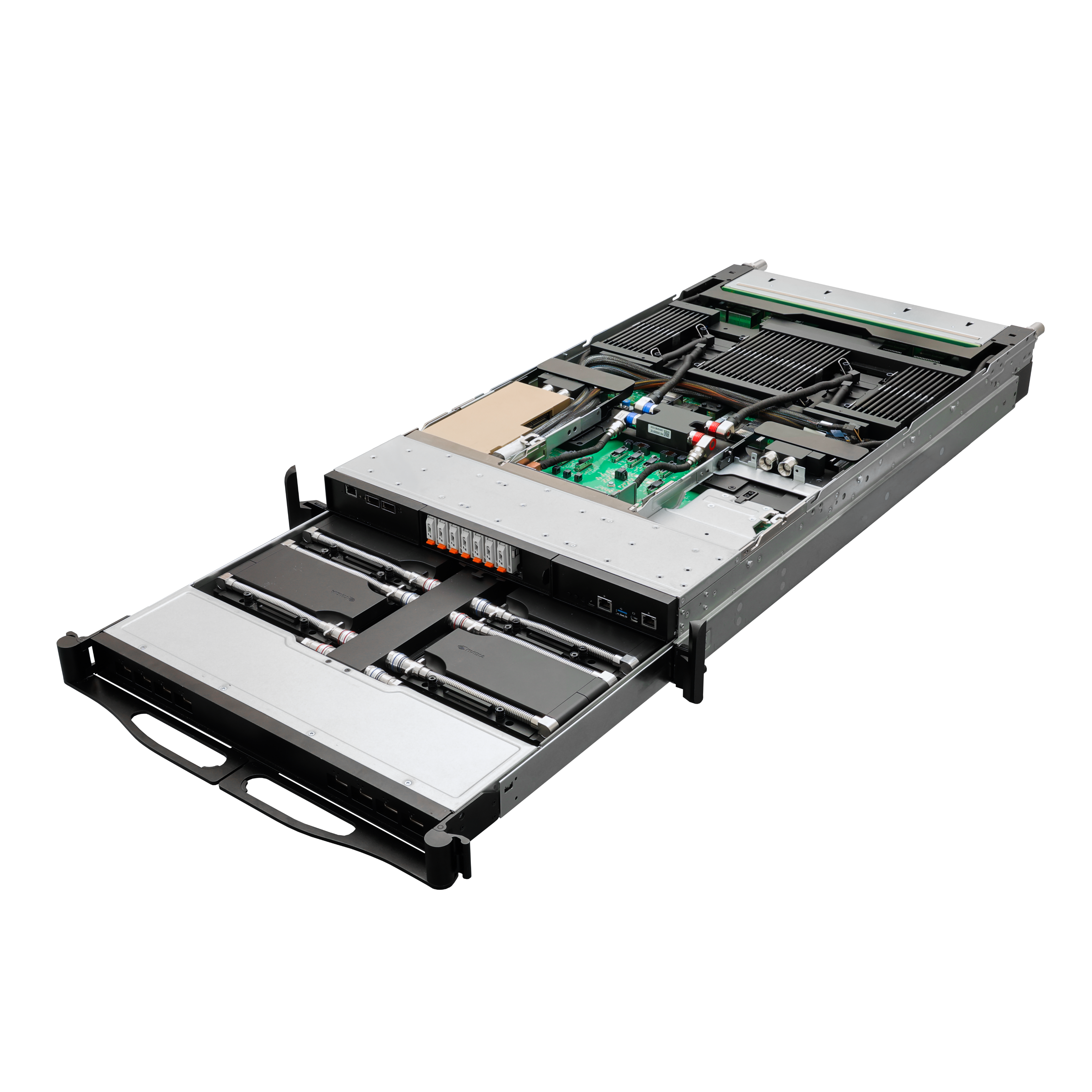

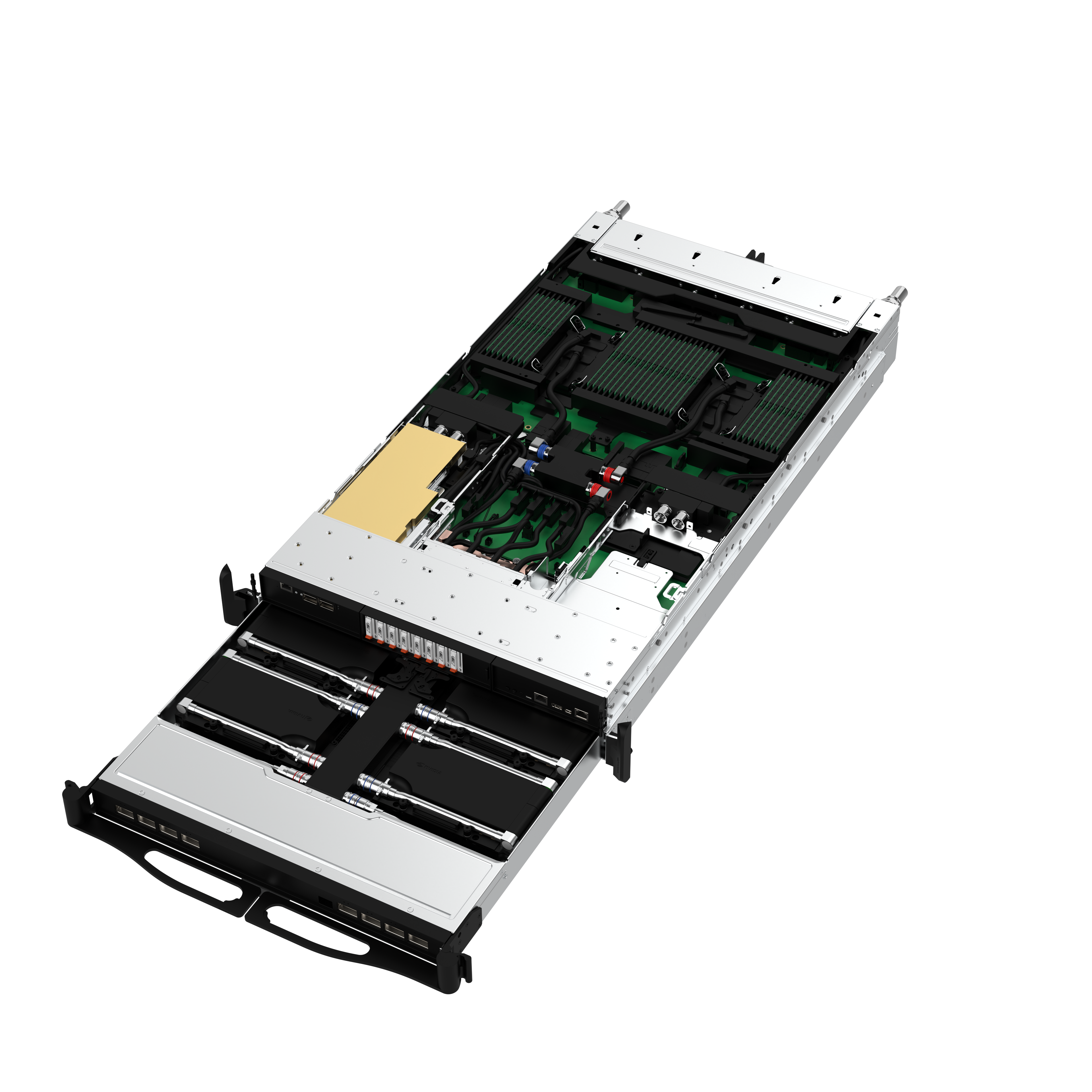

2U Liquid-cooled, NVIDIA HGX™ Rubin NVL8 system, built to accelerate AI and HPC in every data center.
Key Features
| Form Factor | |
| Form Factor | |
|
Chassis Form Factor 2U |
|
|
Chassis Dimension (W x H x D) 448 x 87 x 800 mm 17.6 x 3.4 x 31.5 inch |
|
| Processor | |
| Processor | |
|

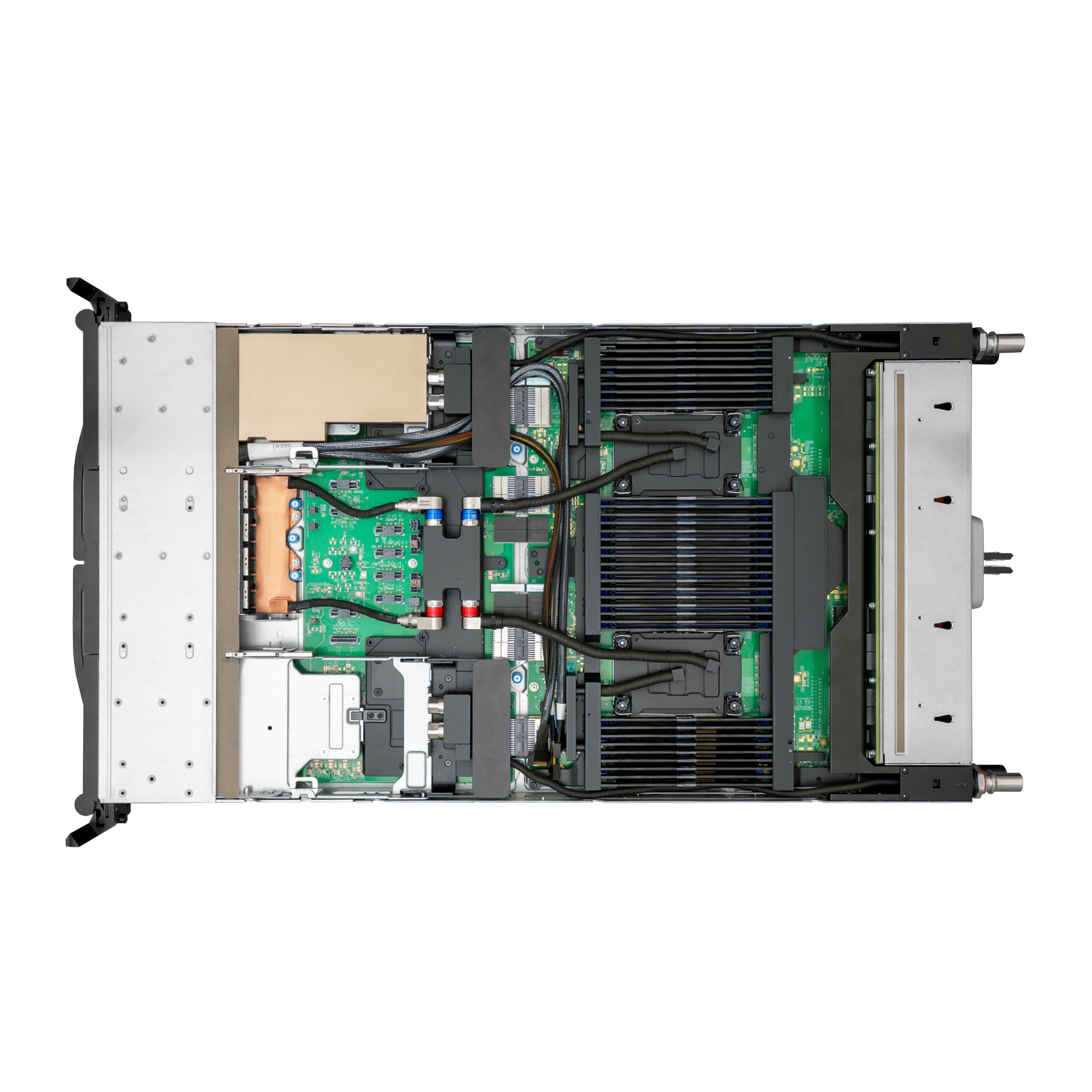

Number of Processors 2 |
|
|
Processor Type Intel® Xeon® 6 processors |
|
|
Max. TDP Support 350W |
|
| GPU | |

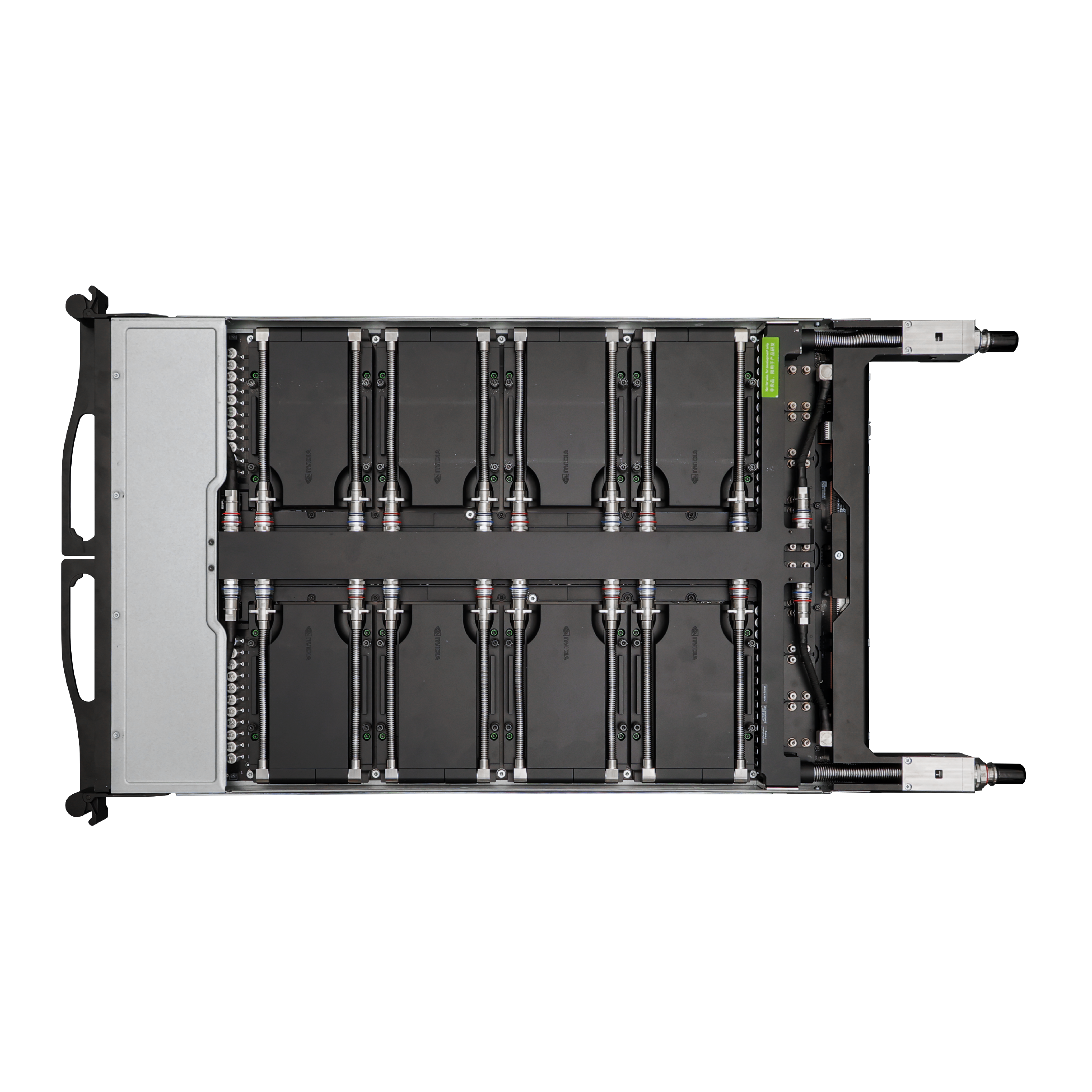

| NVIDIA HGX™ Rubin 8-GPU, 2300W TDP | |
| GPU | NVIDIA HGX™ Rubin 8-GPU, 2300W TDP |
| Memory | |
| Memory | |
|
Total Slots 32 x DDR5 DIMM slots |
|
|
Memory Type 1DPC: DDR5 RDIMM up to 6400 MT/s 2DPC: DDR5 RDIMM up to 5200 MT/s |
|
|
DIMM Capacity (GB per DIMM) 32GB, 64GB, 128GB |
|
| Storage Bays | |
| Storage Bays | |
|
SKU - #1 8 x E1.S NVMe |
|
| Onboard Storage | |
| 2 x M.2 2280/22110 NVMe | |
| Onboard Storage | 2 x M.2 2280/22110 NVMe |
| Management | |
| Aspeed AST2600 | |
| Management | Aspeed AST2600 |
| Security | |
| TPM 2.0 | |
| Security | TPM 2.0 |
| Networking Interface | |
|
8 x Integrated NVIDIA ConnectX®-9 SuperNICTM ports (800Gb/s) 1 x NVIDIA BlueField®-4 Adapters (NDR, 2 x 400G) for N-S Networking |
|
| Networking Interface |
8 x Integrated NVIDIA ConnectX®-9 SuperNICTM ports (800Gb/s) 1 x NVIDIA BlueField®-4 Adapters (NDR, 2 x 400G) for N-S Networking |

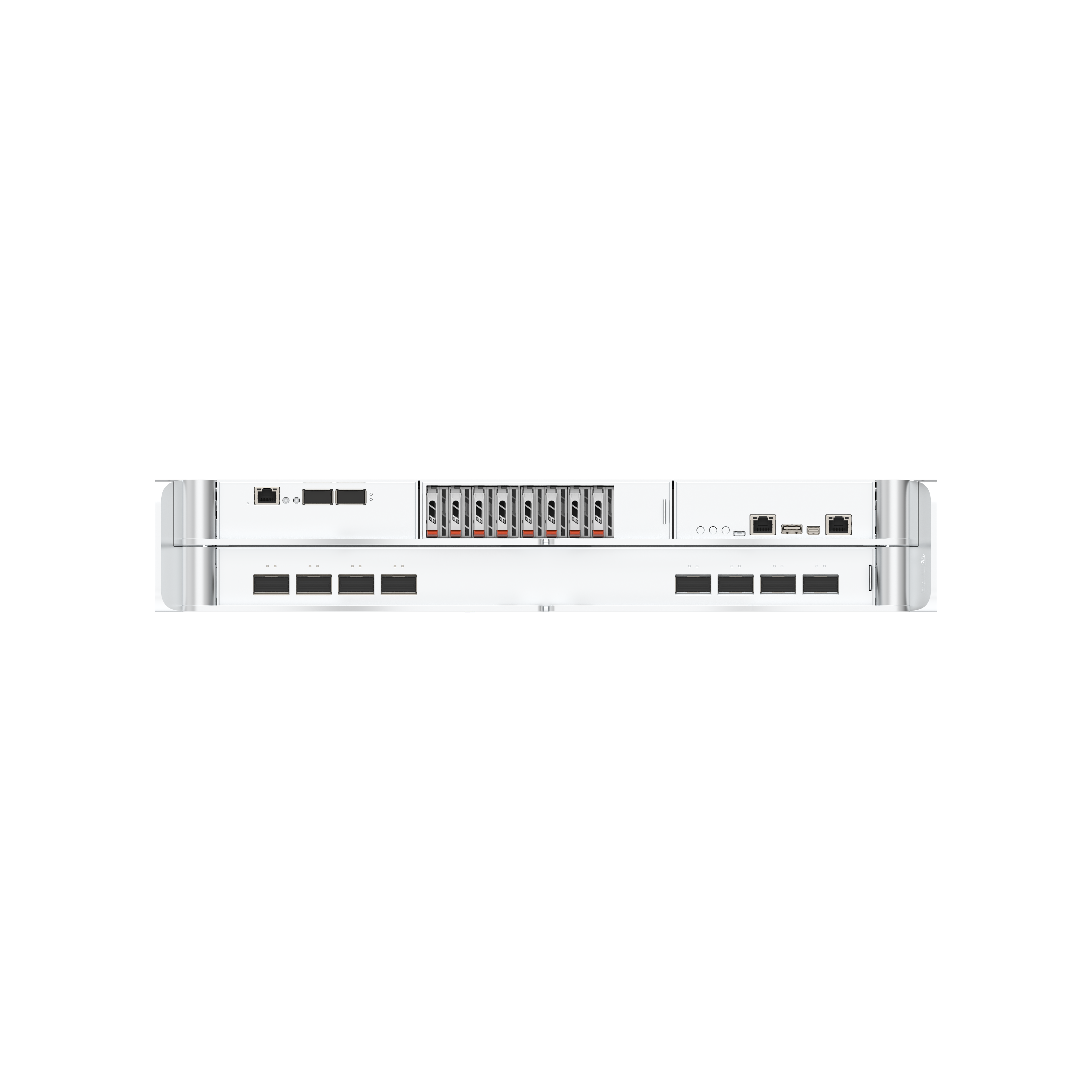

| Front I/O Ports | |
|
1 x IPMI RJ-45 1 x USB type A (support USB 3.0/USB 2.0) 1 x Micro USB for debug (UART interface) 1 x RJ-45 1G Base-T (I210) 1 x MiniDP Power button with LED / UID button / Status LED |
|
| Front I/O Ports |
1 x IPMI RJ-45 1 x USB type A (support USB 3.0/USB 2.0) 1 x Micro USB for debug (UART interface) 1 x RJ-45 1G Base-T (I210) 1 x MiniDP Power button with LED / UID button / Status LED |
| Power Supply | |

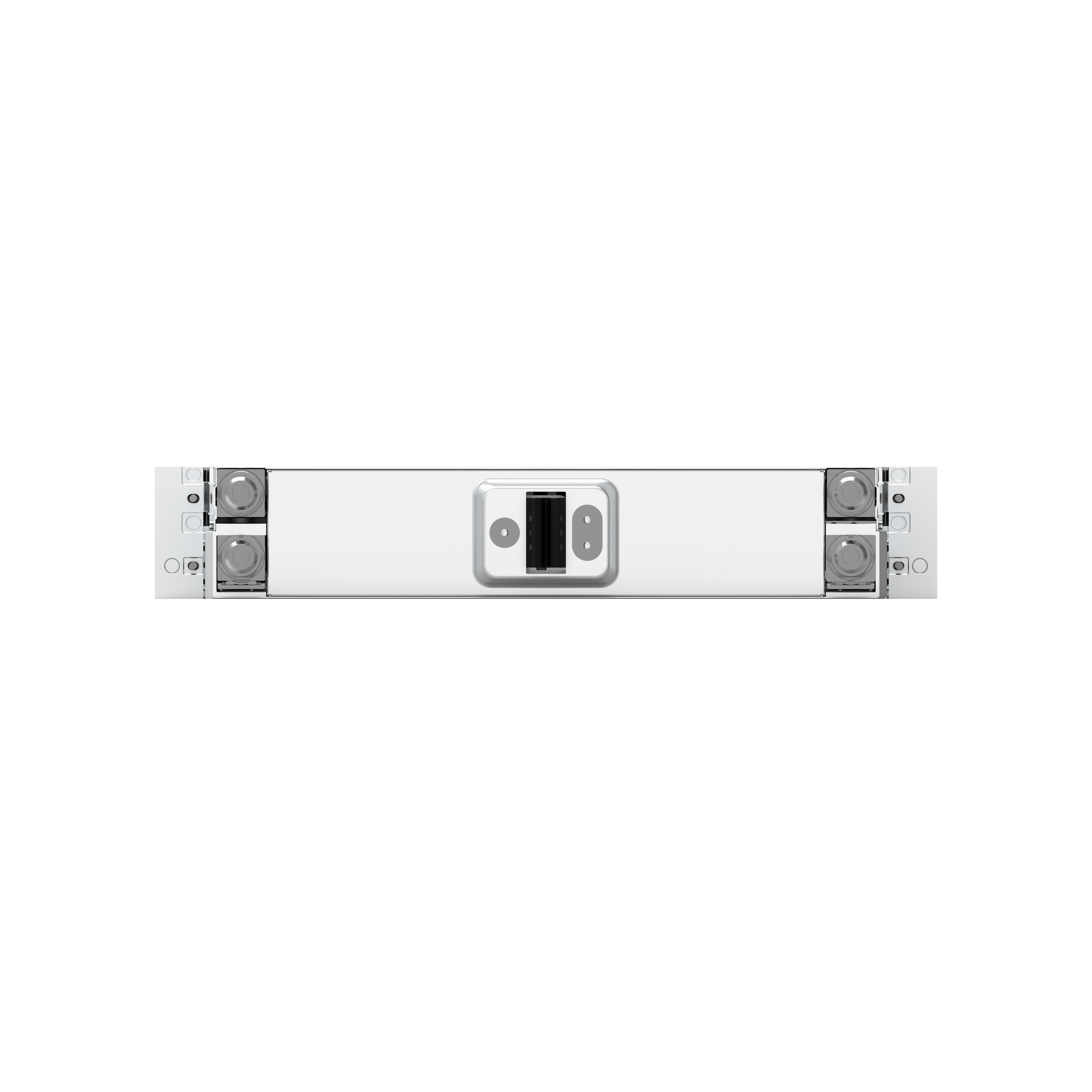

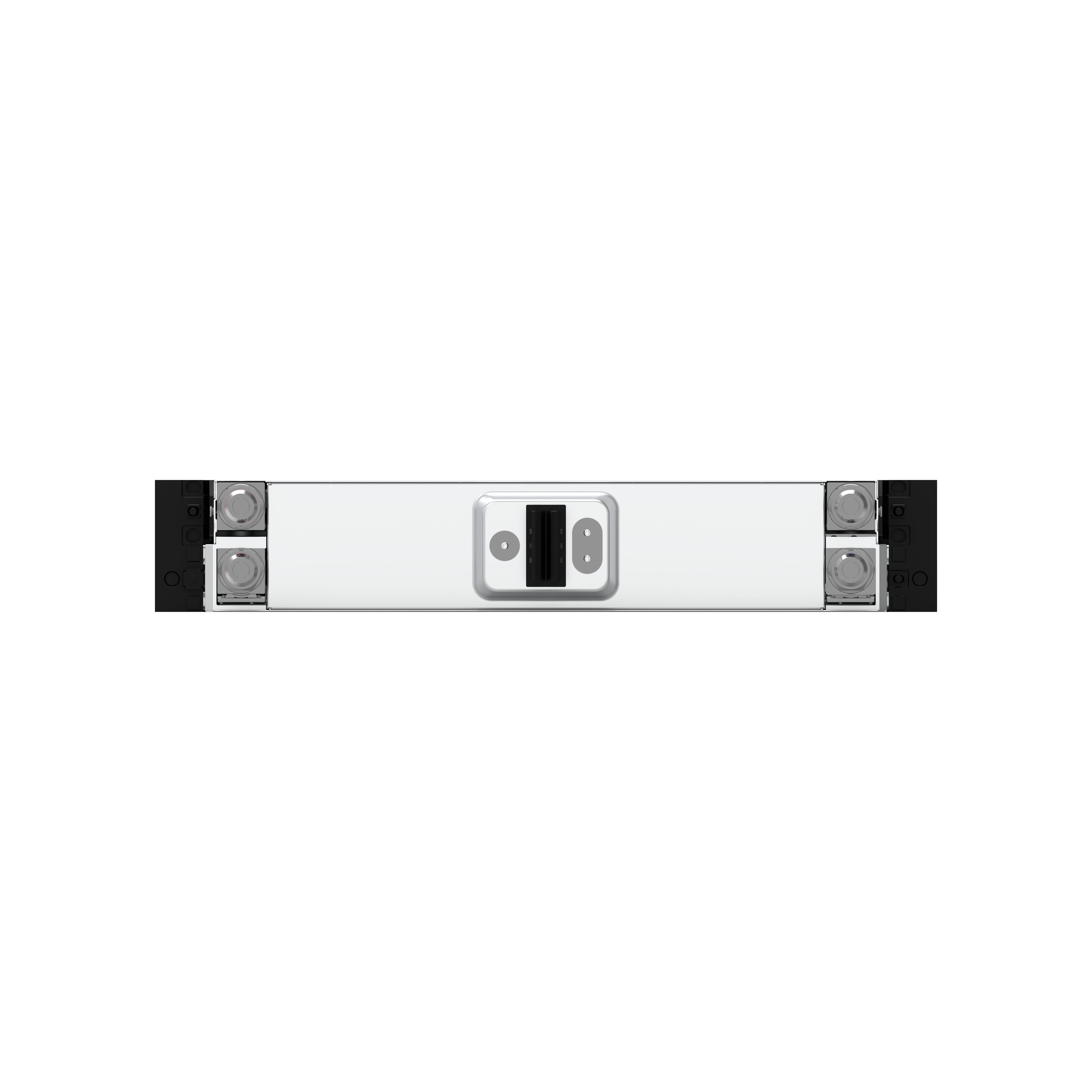

| ORv3 54VDC busbar | |
| Power Supply | ORv3 54VDC busbar |
| Fans | |
| Fully liquid-cooled | |
| Fans | Fully liquid-cooled |
