AS205-2T1
2U 2-Socket, 4-GPU PCIe, NVIDIA MGX™ System Modular Building Blocks for NVIDIA RTX PRO™ Server and OVX™ AI Server
- ⦁ Up to 4 dual-slot PCIe GPUs, TDP up to 600W
- ⦁ Support NVIDIA H200 NVL, RTX PRO™ 6000 Blackwell Server Edition, and L40S
- ⦁ Dual Intel® Xeon® 6700E/6500P/6700P Processors, TDP up to 350W
- ⦁ 32x DDR5 DIMM slots, up to 6400MT/s
- ⦁ Up to 8x E1.S NVMe
- ⦁ 3x PCIe 5.0 x16 SS FHFL for 1x NVIDIA BlueField®-3 DPU and 2x NVIDIA ConnectX®-7 NICs
- ⦁ 3+1 2000W/2400W Titanium CRPS
Key Features
- 1. Up to 4 dual-slot PCIe GPUs, TDP up to 600W
- 2. Support NVIDIA H200 NVL, RTX PRO™ 6000 Blackwell Server Edition, and L40S
- 3. Dual Intel® Xeon® 6700E/6500P/6700P Processors, TDP up to 350W
- 4. 32x DDR5 DIMM slots, up to 6400MT/s
- 5. Up to 8x E1.S NVMe
- 6. 3x PCIe 5.0 x16 SS FHFL for 1x NVIDIA BlueField®-3 DPU and 2x NVIDIA ConnectX®-7 NICs
- 7. 3+1 2000W/2400W Titanium CRPS
| Form Factor | |
| Form Factor | |
|
Chassis Form Factor MGX 2U |
|
|
Chassis Dimension (W x H x D) 438 x 88 x 900 mm 17.3 x 3.5 x 35.4 inch |
|
|
Mainboard Form Factor MGX Board |
|
|
Mainboard Dimension 424.5 x 305.6 mm |
|
| Processor | |
| Processor | |
|
Number of Processors 2 |
|
|
Processor Type Intel® Xeon® 6500P/6700P/6700E |
|
|
Max. TDP Support 350W w/ 4pcs L40S 270W w/ 4pcs H200 NVL, RTX PRO™ 6000 Blackwell Server Edition |
|
| GPU | |
|
4 x DS PCIe GPU up to 600W (NVIDIA H200 NVL, RTX PRO™ 6000 Blackwell Server Edition, L40S) *RTX PRO 6000 is supported at 30°C ambient |
|
| GPU | 4 x DS PCIe GPU up to 600W (NVIDIA H200 NVL, RTX PRO™ 6000 Blackwell Server Edition, L40S) *RTX PRO 6000 is supported at 30°C ambient |
| Memory | |
| Memory | |
|
Total Slots 32 |
|
|
Memory Type 1DPC: DDR5 RDIMM up to 6400 MT/s 2DPC: DDR5 RDIMM up to 5200 MT/s |
|
|
DIMM Capacity (GB per DIMM) 32GB, 64GB, 128GB |
|
| Expansion Slots | |
| Expansion Slots | |
|
4 x PCIe Gen5 x16 for L40S/H200 NVL/RTX PRO™ 6000 Blackwell Server Edition 3 x PCIe 5.0 x16 slots for 1 x NVIDIA BlueField®-3 DPU and 2 x NVIDIA ConnectX®-7 NICs |
|
| Storage Bays | |
| Storage Bays | |
|
#1 w/ L40S 8 x PCIe Gen5 x4 E1.S NVMe #2 w/ H200 NVL/RTX PRO™ 6000 Blackwell Server Edition 6 x PCIe Gen5 x4 E1.S NVMe |
|
| Onboard Storage | |
| 2 x M.2 2280/22110 NVMe | |
| Onboard Storage | 2 x M.2 2280/22110 NVMe |
| Management | |
| DC-SCI BMC Management (Aspeed AST2600 as BMC hardware solution) | |
| Management | DC-SCI BMC Management (Aspeed AST2600 as BMC hardware solution) |
| Security | |
| TPM 2.0 | |
| Security | TPM 2.0 |
| Networking Interface | |
| 1 x IPMI RJ45 | |
| Networking Interface | 1 x IPMI RJ45 |
| Front I/O Ports | |
| Power button LED / UID button LED / Status LED | |
| Front I/O Ports | Power button LED / UID button LED / Status LED |
| Rear I/O Ports | |
|

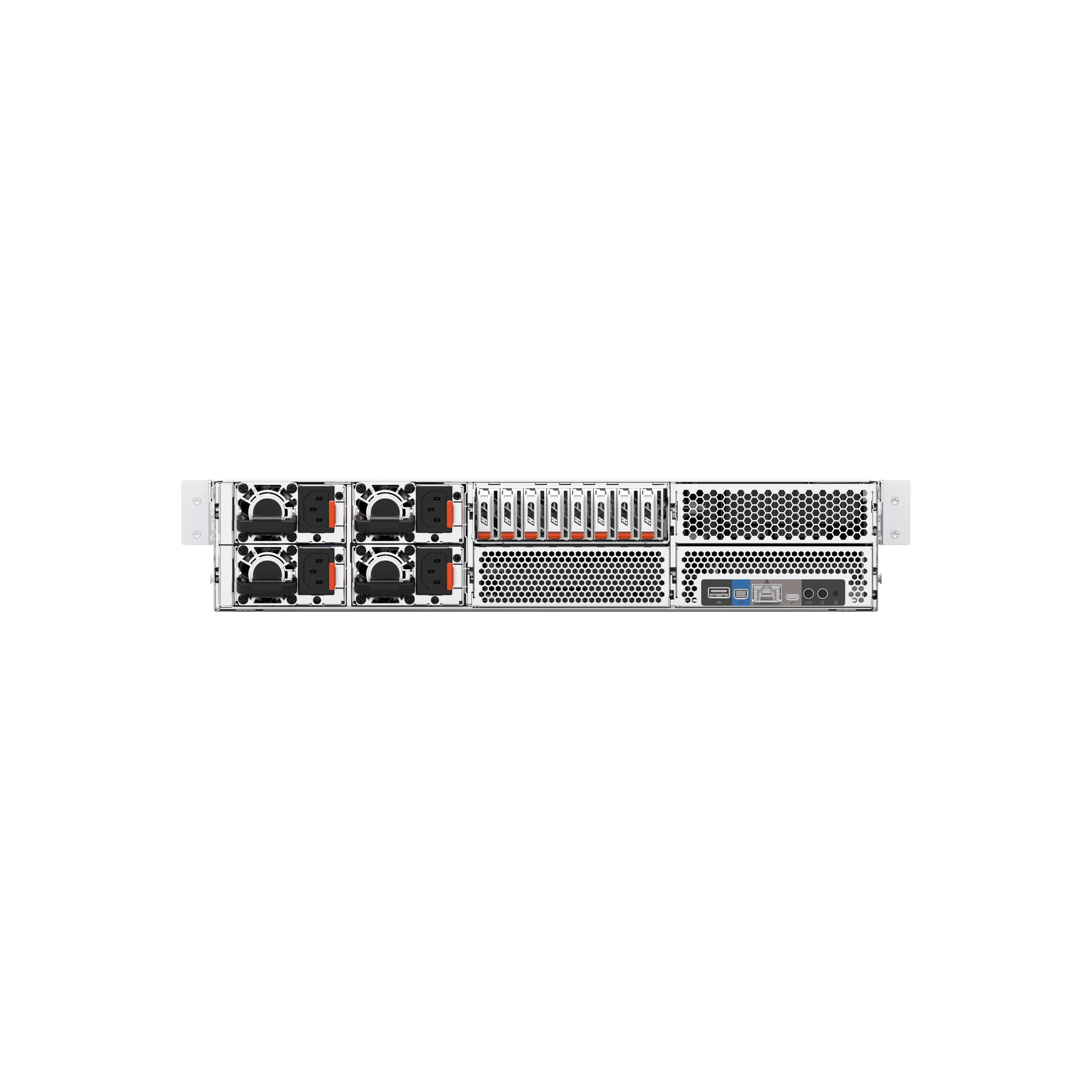

Power button LED / UID button LED / Reset button 1 x IPMI RJ45, no on-board LAN to support share-LAN through NC-SI 1 x USB 3.2 Gen 1 (5Gbps) 1 x Mini-DP 1 x Micro-USB port (for UART debug) |
|
| Rear I/O Ports | Power button LED / UID button LED / Reset button 1 x IPMI RJ45, no on-board LAN to support share-LAN through NC-SI 1 x USB 3.2 Gen 1 (5Gbps) 1 x Mini-DP 1 x Micro-USB port (for UART debug) |
| OS Support | |
|
Red Hat Enterprise Linux 9.2 or later Ubuntu 22.04 LTS |
|
| OS Support | Red Hat Enterprise Linux 9.2 or later Ubuntu 22.04 LTS |
| Power Supply | |
|
#1 w/ L40S 3+1 2000W Titanium CRPS #2 w/ H200 NVL/RTX PRO™ 6000 Blackwell Server Edition 3+1 2400W Titanium CRPS |
|
| Power Supply | #1 w/ L40S 3+1 2000W Titanium CRPS #2 w/ H200 NVL/RTX PRO™ 6000 Blackwell Server Edition 3+1 2400W Titanium CRPS |
| Fans | |
| 4 x 8080 Fans | |
| Fans | 4 x 8080 Fans |
| Operating Environment | |
|
Ambient operating temperature range: 5°C to 30 °C Ambient Non-operating temperature: -40°C to +68 °C Operating relative humidity: 10% to 85% (non-condensing) Non-operating relative humidity: up to 93% (non-condensing) |
|
| Operating Environment | Ambient operating temperature range: 5°C to 30 °C Ambient Non-operating temperature: -40°C to +68 °C Operating relative humidity: 10% to 85% (non-condensing) Non-operating relative humidity: up to 93% (non-condensing) |
