AS201-1N0

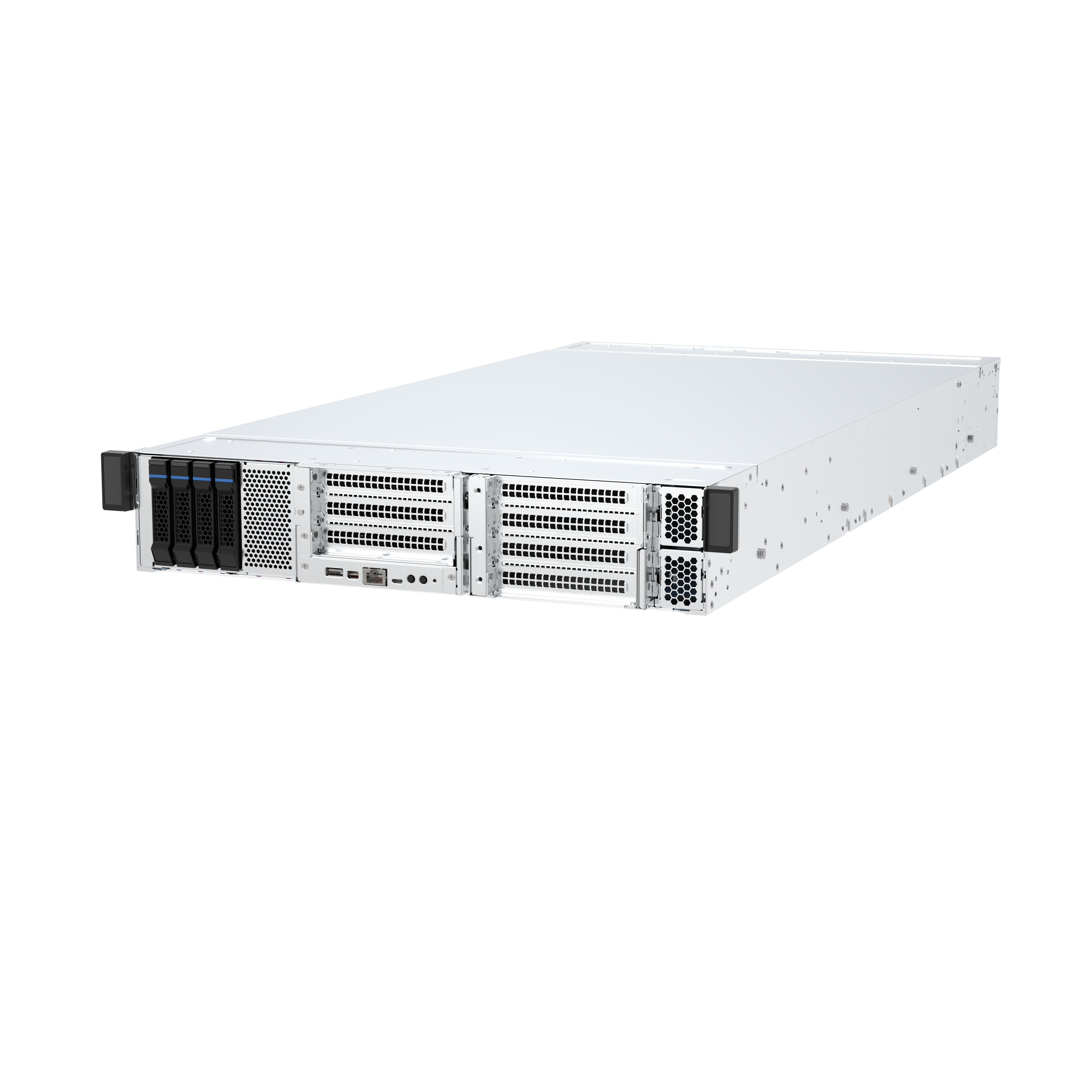

2U, NVIDIA MGX™ System with NVIDIA GH200 Grace Hopper™ Superchip
The Superchip for the Era of Accelerated Computing and Generative AI
Key Features
| Form Factor | |
| Form Factor | |
|
Chassis Form Factor MGX 2U |
|
|
Chassis Dimension (W x H x D) 438 x 88 x 900 mm 17.2 x 3.5 x 35.4 inch |
|
|
Mainboard Form Factor Micro MGX |
|
|
Mainboard Dimension 210.0 x 305.59 mm |
|
| Processor | |
| Processor | |
|
Number of Processors 1 |
|
|
Processor Type NVIDIA GH200 Grace Hopper™ Superchip |
|
|
Max. TDP Support 1000W (Superchip) |
|
| GPU | |
| Hopper™ GPU 96GB co-packaged | |
| GPU | Hopper™ GPU 96GB co-packaged |
| Memory | |
| Memory | |
|
Total Slots Onboard Memory |
|
|
Memory Type LPDDR5X |
|
|
DIMM Capacity (GB per DIMM) 48GB co-packaged |
|
| Expansion Slots | |
| Expansion Slots | |
|
SKU -#1 1 x PCIe 5.0 x16 FHFL: For NVIDIA BlueField®-3 & ConnectX®-7 card 1 x PCIe 5.0 x16 FHHL 1 x PCIe 5.0 x16 FHFL |
|
|
SKU -#2 1 x PCIe 5.0 x16 FHFL: For NVIDIA BlueField®-3 & ConnectX®-7 card 1 x PCIe 5.0 x16 FHFL |
|
| Storage Bays | |
| Storage Bays | |
|
SKU -#2 2 x 2.5” PCIe 4.0 NVMe |
|
|
SKU -#1 4 x 2.5” PCIe 4.0 NVMe |
|
| Onboard Storage | |
| 2 x M.2 2280/22110 NVMe | |
| Onboard Storage | 2 x M.2 2280/22110 NVMe |
| Management | |
| Aspeed AST2600 | |
| Management | Aspeed AST2600 |
| Security | |
| TPM 2.0 | |
| Security | TPM 2.0 |
| Networking Interface | |
| 1 x IPMI RJ45 | |
| Networking Interface | 1 x IPMI RJ45 |

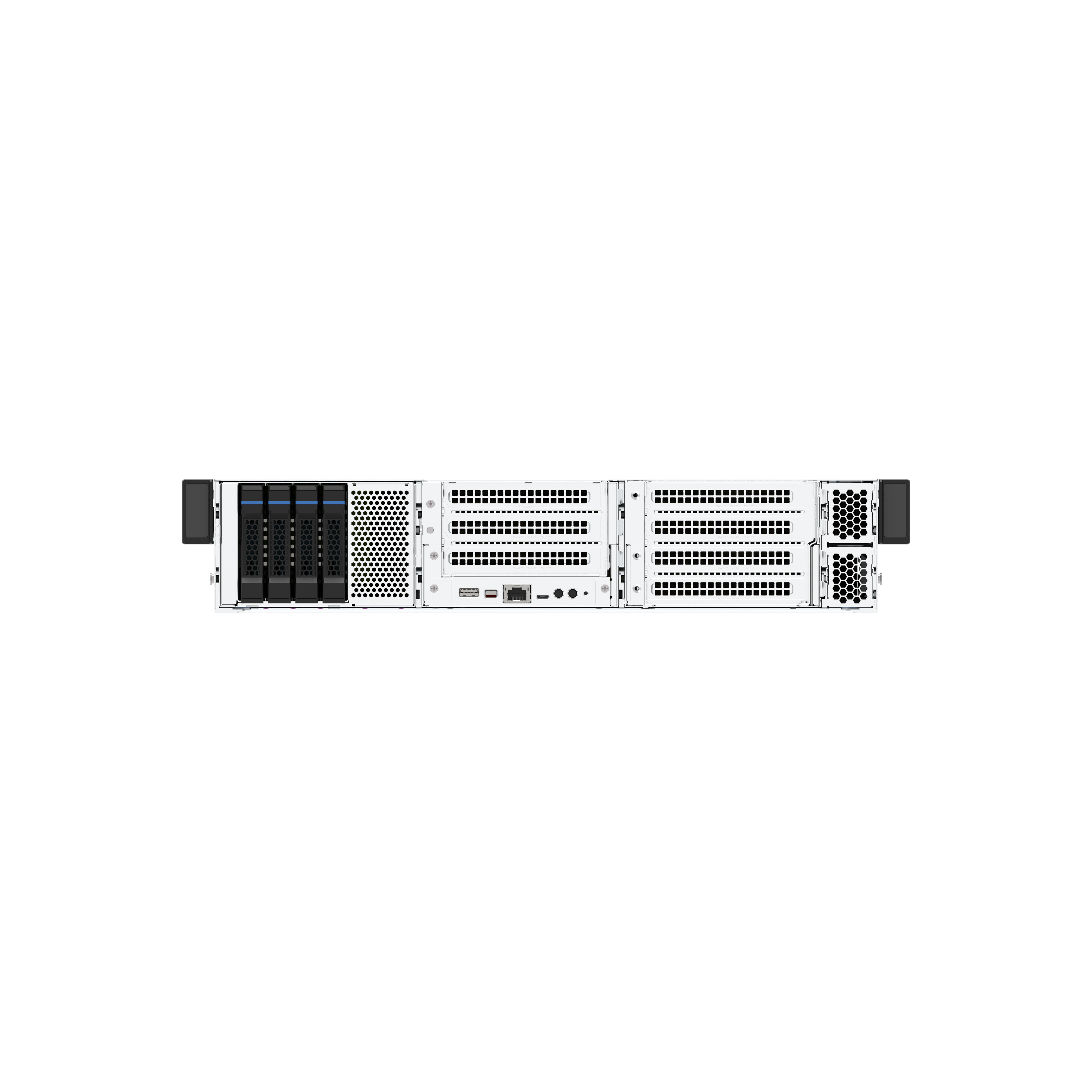

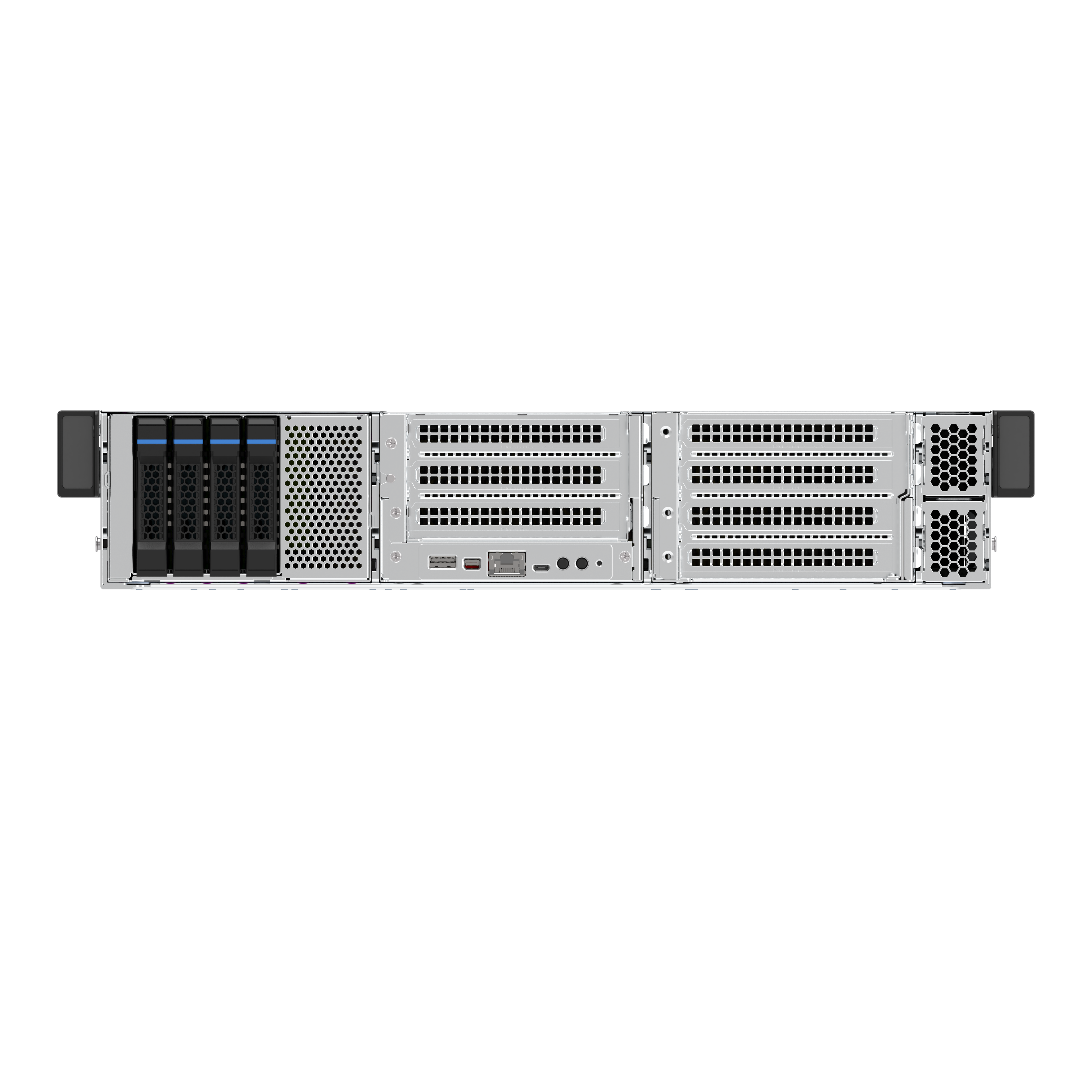

| Front I/O Ports | |
|
1 x IPMI RJ45 1 x MiniDP 1 x Micro USB COM Port 1 x Power button LED |
|
| Front I/O Ports |
1 x IPMI RJ45 1 x MiniDP 1 x Micro USB COM Port 1 x Power button LED |
| OS Support | |
| Ubuntu 22.04 LTS | |
| OS Support | Ubuntu 22.04 LTS |

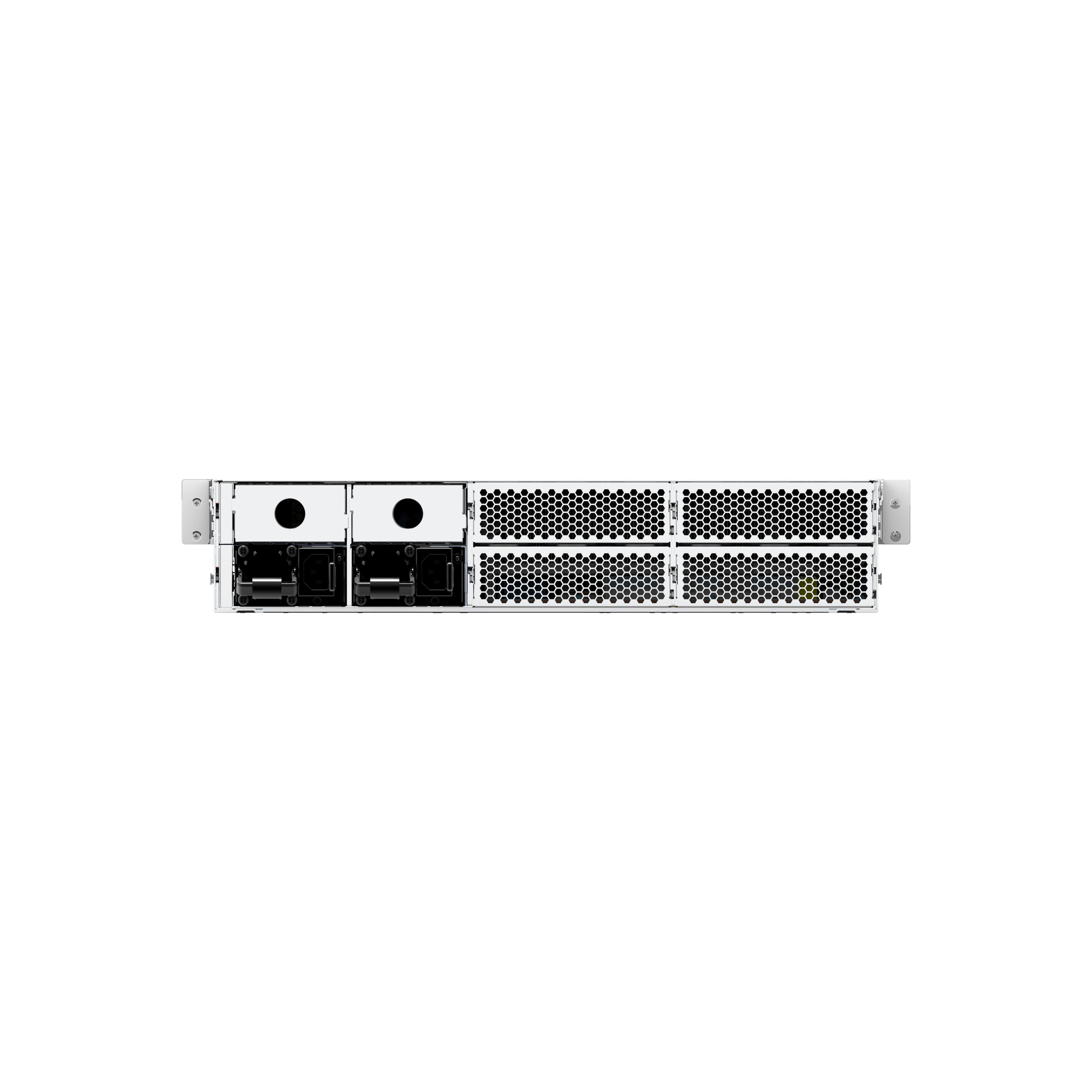

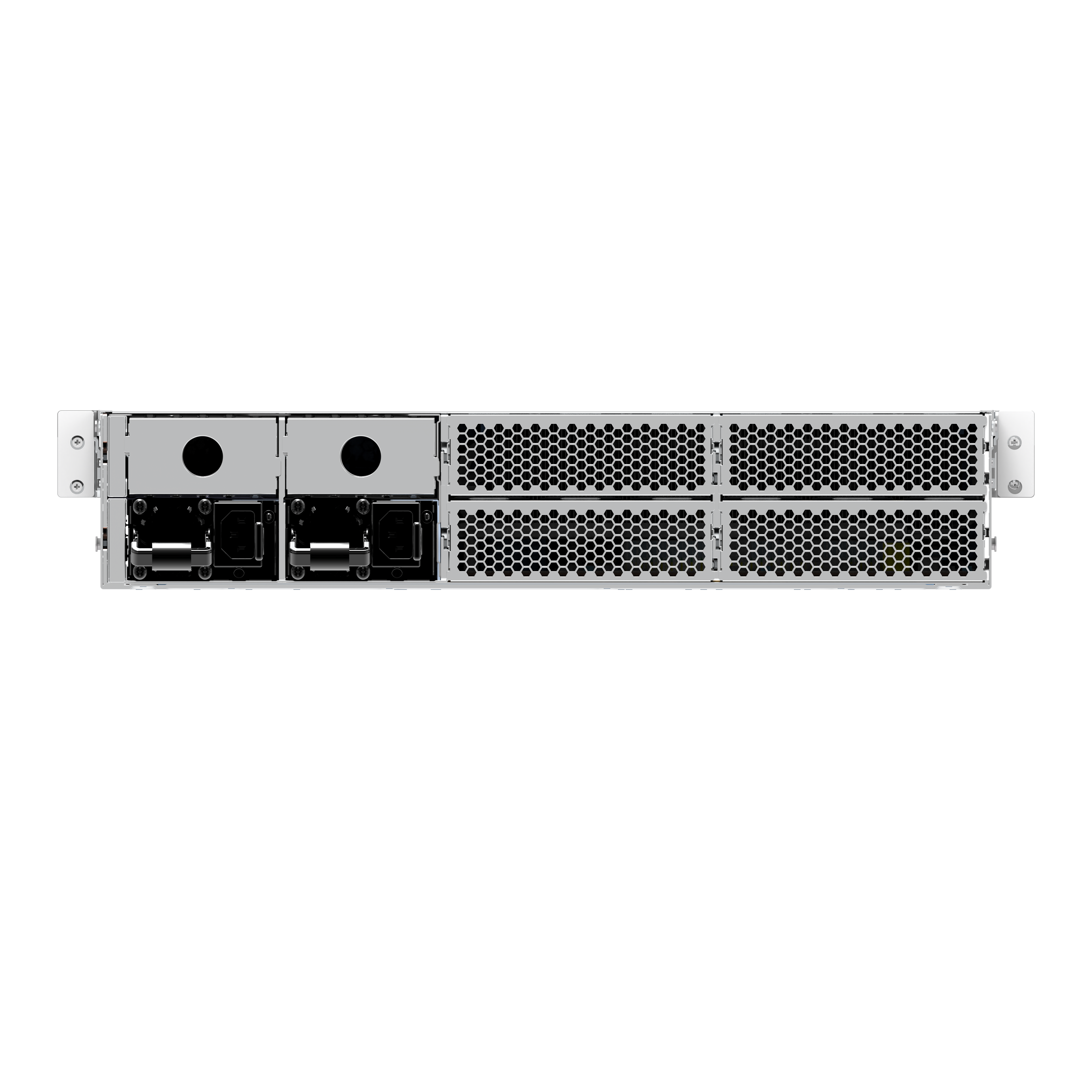

| Power Supply | |
| 1+1 2000W Titanium CRPS | |
| Power Supply | 1+1 2000W Titanium CRPS |
| Fans | |
| 6 x 6056 Fans | |
| Fans | 6 x 6056 Fans |
| Operating Environment | |
|
Operating temperature: 5°C to 35°C Operating humidity: 10% to 90% (non-condensing) Non-operating temperature: -40°C to 70°C Non-operating humidity: -55% to 85% (non-condensing) |
|
| Operating Environment |
Operating temperature: 5°C to 35°C Operating humidity: 10% to 90% (non-condensing) Non-operating temperature: -40°C to 70°C Non-operating humidity: -55% to 85% (non-condensing) |
