NEW
RA4803-72N3
NVIDIA Vera Rubin NVL72, 36 Vera CPUs and 72 Rubin GPUs, NVIDIA NVLink™ 6 Switch Tray, Building the Next Frontier of AI
Key Features
| Form Factor | |
| Form Factor | |
|

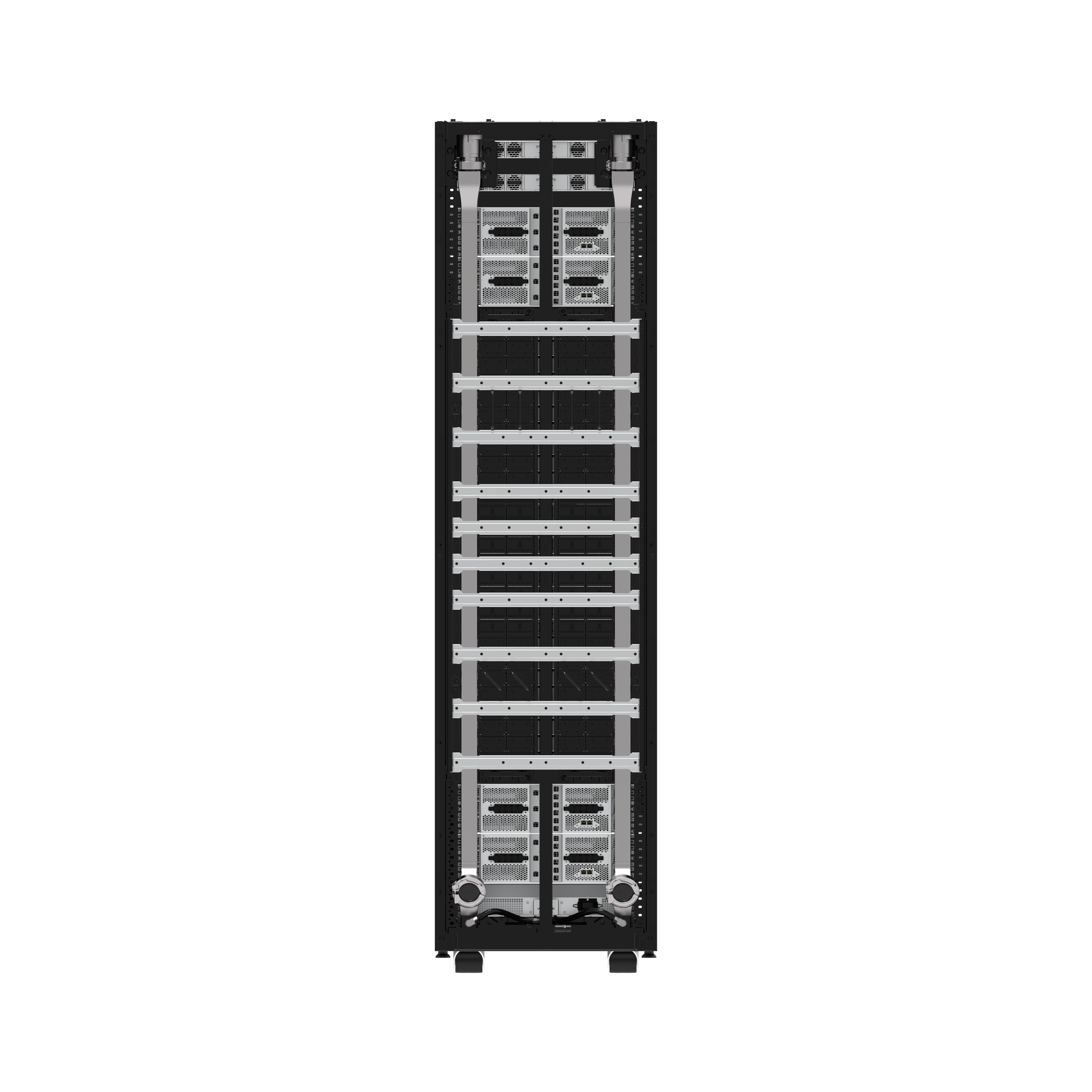

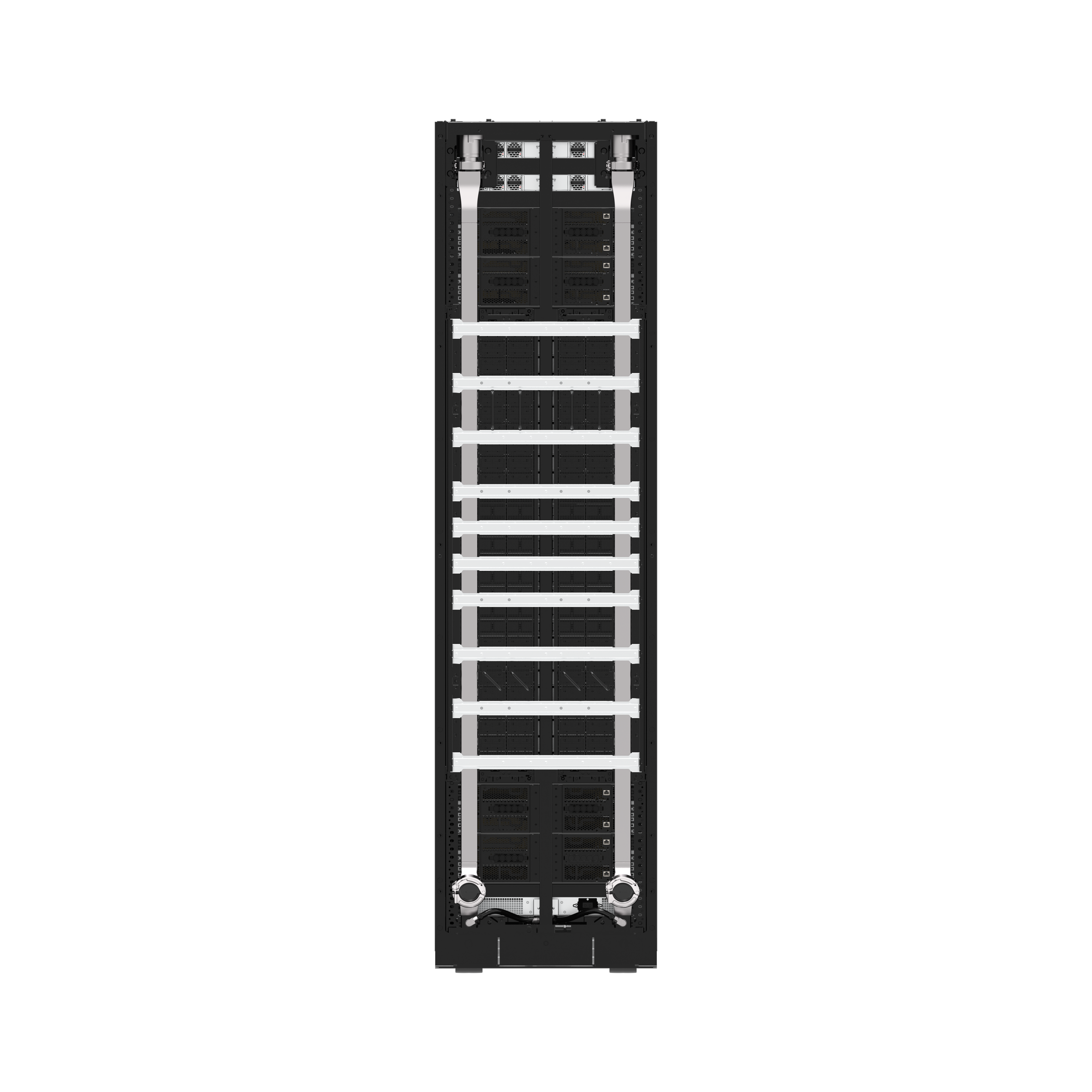

Chassis Form Factor 48U NVIDIA MGX rack 18 x Compute Tray per rack |
|
|
Chassis Dimension (W x H x D) 1U MGX chassis 438 x 43.6 x 781.2 mm 17.24 x 1.72 x 30.8 inch Rack 600 x 2300 x 1200 mm 23.6 x 90.5 x 47.2 inch |
|
| Processor | |
| Processor | |
|
Number of Processors 2 |
|
|
Processor Type NVIDIA Vera CPUs (88 Olympus cores, Arm‑compatible) |
|
|
Max. TDP Support 500W |
|
| GPU | |
| 4 x NVIDIA Rubin GPUs, 2300W TDP | |
| GPU | 4 x NVIDIA Rubin GPUs, 2300W TDP |
| Memory | |
| Memory | |
|
Memory Type Per tray: CPU: 3TB LPDDR5X per tray (2 × 1.5TB) GPU: 1,152GB HBM4 per tray (4 x 288GB) |
|
| Storage Bays | |
| Storage Bays | |
|
SKU - #1 Per tray: 4 x E1.S NVMe |
|
| Onboard Storage | |
| 1 x E1.S NVMe for OS boot | |
| Onboard Storage | 1 x E1.S NVMe for OS boot |
| Management | |
| Aspeed AST2600 | |
| Management | Aspeed AST2600 |
| Security | |
| TPM 2.0 | |
| Security | TPM 2.0 |
| Networking Interface | |
|
Per tray: 4 × NVIDIA NVLink™ Gen 6 connectors (3.6 TB/s) 4 x NVIDIA ConnectX®-9 SuperNIC™ bays (1.6Tb/s) 1 x NVIDIA BlueField®-4 B4280 DPU (dual ports 400GbE) |
|
| Networking Interface |
Per tray: 4 × NVIDIA NVLink™ Gen 6 connectors (3.6 TB/s) 4 x NVIDIA ConnectX®-9 SuperNIC™ bays (1.6Tb/s) 1 x NVIDIA BlueField®-4 B4280 DPU (dual ports 400GbE) |
| Front I/O Ports | |
| 1 x I/O module | |
| Front I/O Ports | 1 x I/O module |
| Power Supply | |
|
Power shelf 4 x 3U 110kW (6 x 18.3kW PSUs and additional bulk capacitors) |
|
| Power Supply |
Power shelf 4 x 3U 110kW (6 x 18.3kW PSUs and additional bulk capacitors) |
