NEW

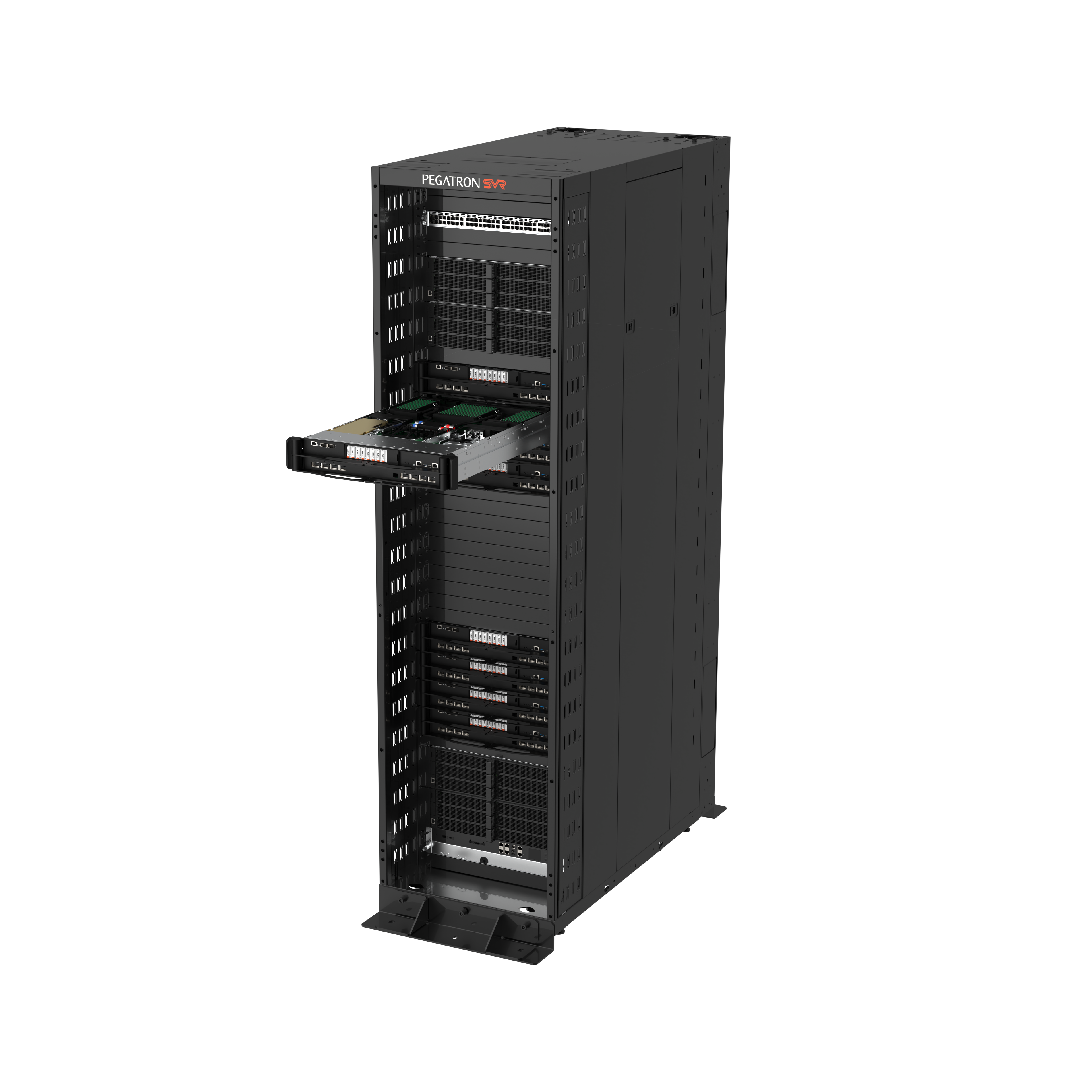

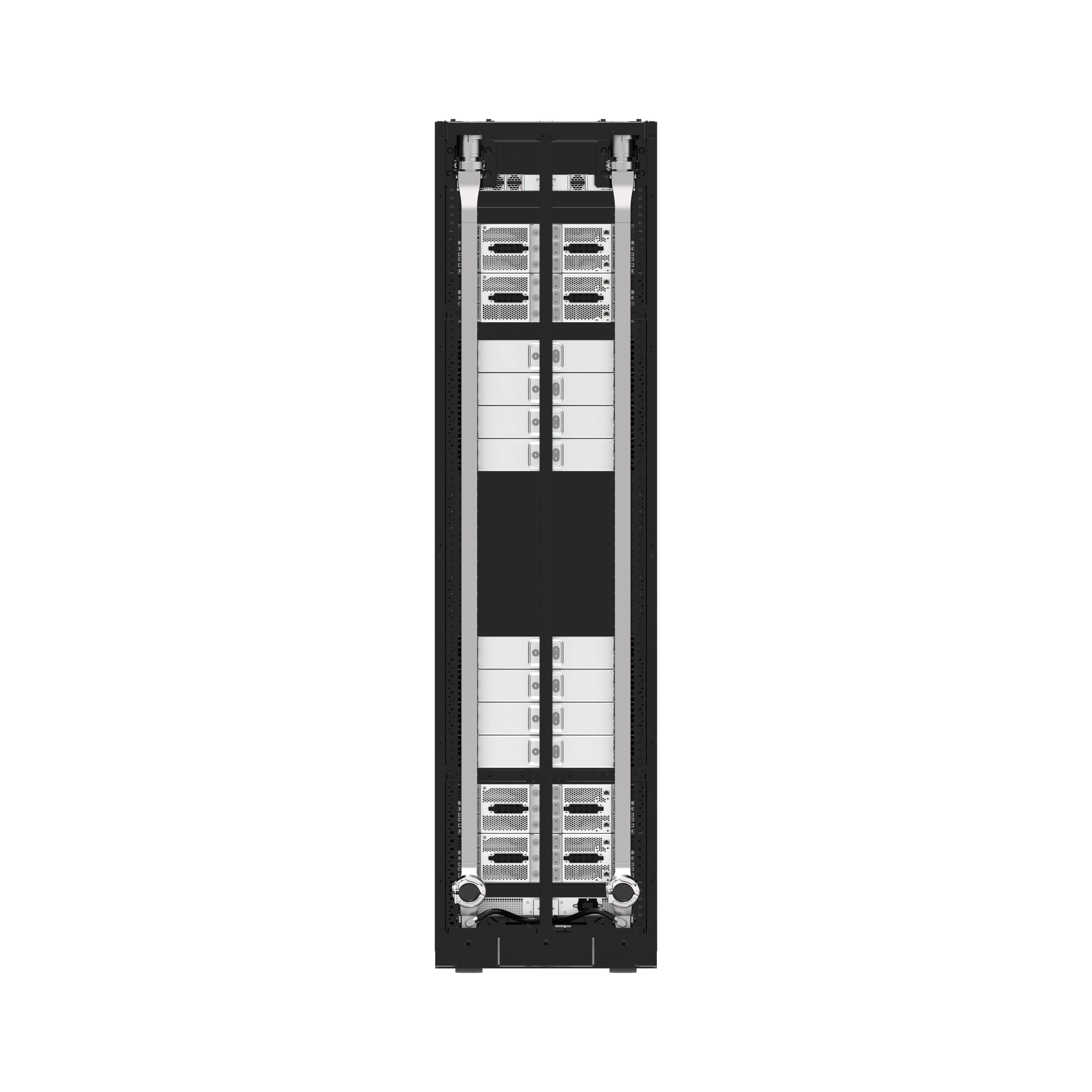

RA4800-64H3
NVIDIA HGX™ Rubin NVL8, 64 x NVIDIA HGX™ Rubin GPUs and 16 x Intel® Xeon® 6 processors, Accelerating the Next Generation of Agentic AI
Key Features
| Form Factor | |
| Form Factor | |
|
Chassis Form Factor 48U NVIDIA MGX™ Rack |
|
|
Chassis Dimension (W x H x D) Rack 600 x 2300 × 1200 mm 23.6 x 90.4 × 47.2 inch |
|
| Processor | |
| Processor | |
|
Number of Processors Per System : 2 |
|
|
Processor Type Intel® Xeon® 6 processors |
|
|
Max. TDP Support 350W |
|
| GPU | |
|
Per System : NVIDIA HGX™ Rubin 8-GPU, 2300W TDP |
|
| GPU |
Per System : NVIDIA HGX™ Rubin 8-GPU, 2300W TDP |
| Memory | |
| Memory | |
|
Memory Type Per System : CPU : 32 x DDR5 DIMM slots, up to 6400 MT/s GPU : total 2.3TB HBM4 (8 x 288GB) |
|
| Storage Bays | |
| Per System : 8 x E1.S NVMe | |
| Storage Bays | Per System : 8 x E1.S NVMe |
| Management | |
| Aspeed AST2600 | |
| Management | Aspeed AST2600 |
| Security | |
| TPM 2.0 | |
| Security | TPM 2.0 |
| Networking Interface | |
|
Per System : 8 x Integrated NVIDIA ConnectX®-9 SuperNIC™ ports (800Gb/s) 1 x NVIDIA BlueField®-4 Adapters (NDR, 2 x 400G) for N-S Networking |
|
| Networking Interface |
Per System : 8 x Integrated NVIDIA ConnectX®-9 SuperNIC™ ports (800Gb/s) 1 x NVIDIA BlueField®-4 Adapters (NDR, 2 x 400G) for N-S Networking |
| Front I/O Ports | |
|
Per System : 1 x IPMI RJ-45 1 x USB type A (support USB 3.0/USB 2.0) 1 x Micro USB for debug (UART interface) 1 x RJ-45 1G Base-T (I210) 1 x MiniDP Power button with LED / UID button System status LED |
|
| Front I/O Ports |
Per System : 1 x IPMI RJ-45 1 x USB type A (support USB 3.0/USB 2.0) 1 x Micro USB for debug (UART interface) 1 x RJ-45 1G Base-T (I210) 1 x MiniDP Power button with LED / UID button System status LED |
| Power Supply | |
|
Power shelf 4 x 3U 110kW (6 x 18.3kW PSUs and additional bulk capacitors) |
|
| Power Supply |
Power shelf 4 x 3U 110kW (6 x 18.3kW PSUs and additional bulk capacitors) |
