NEW

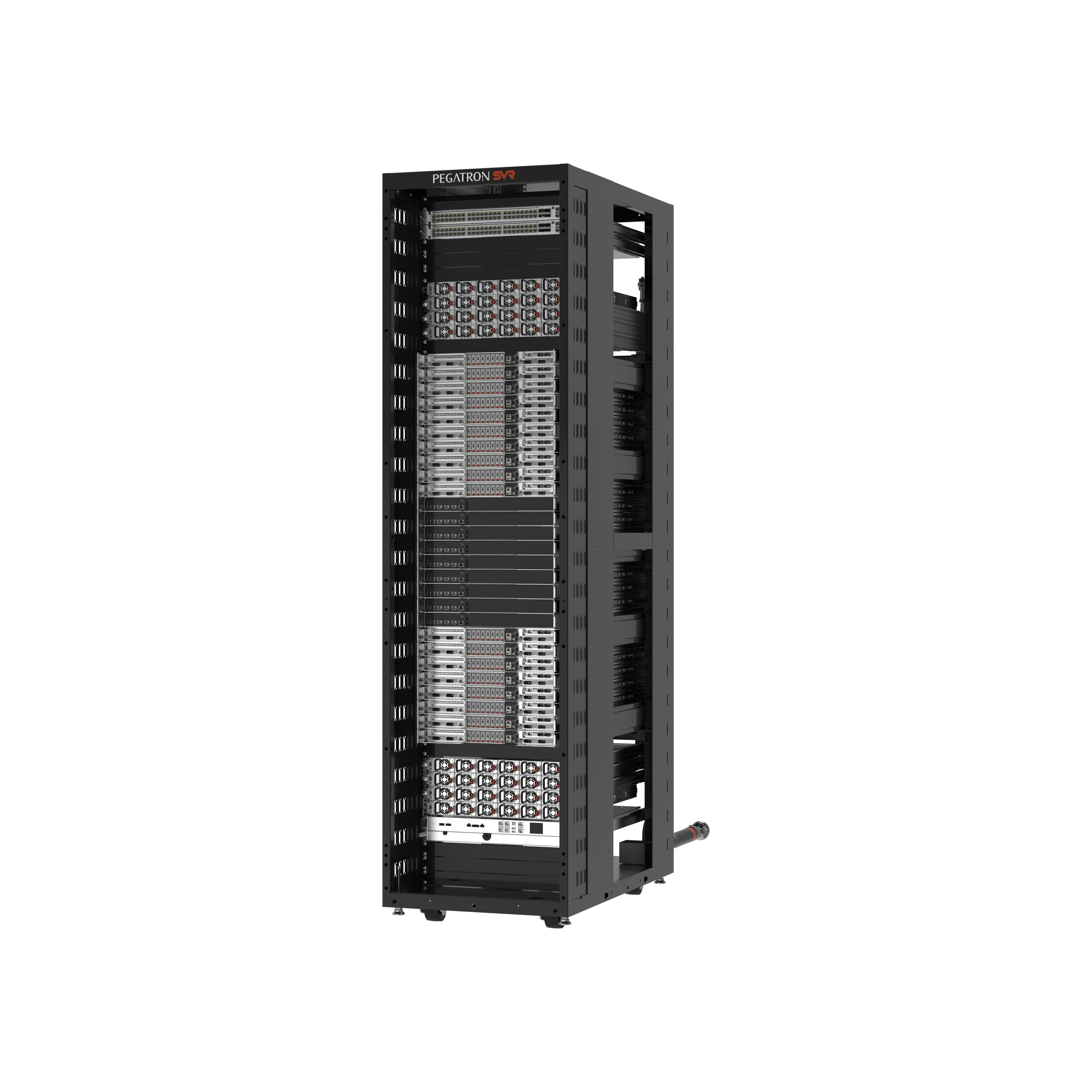

RA4802-72N2

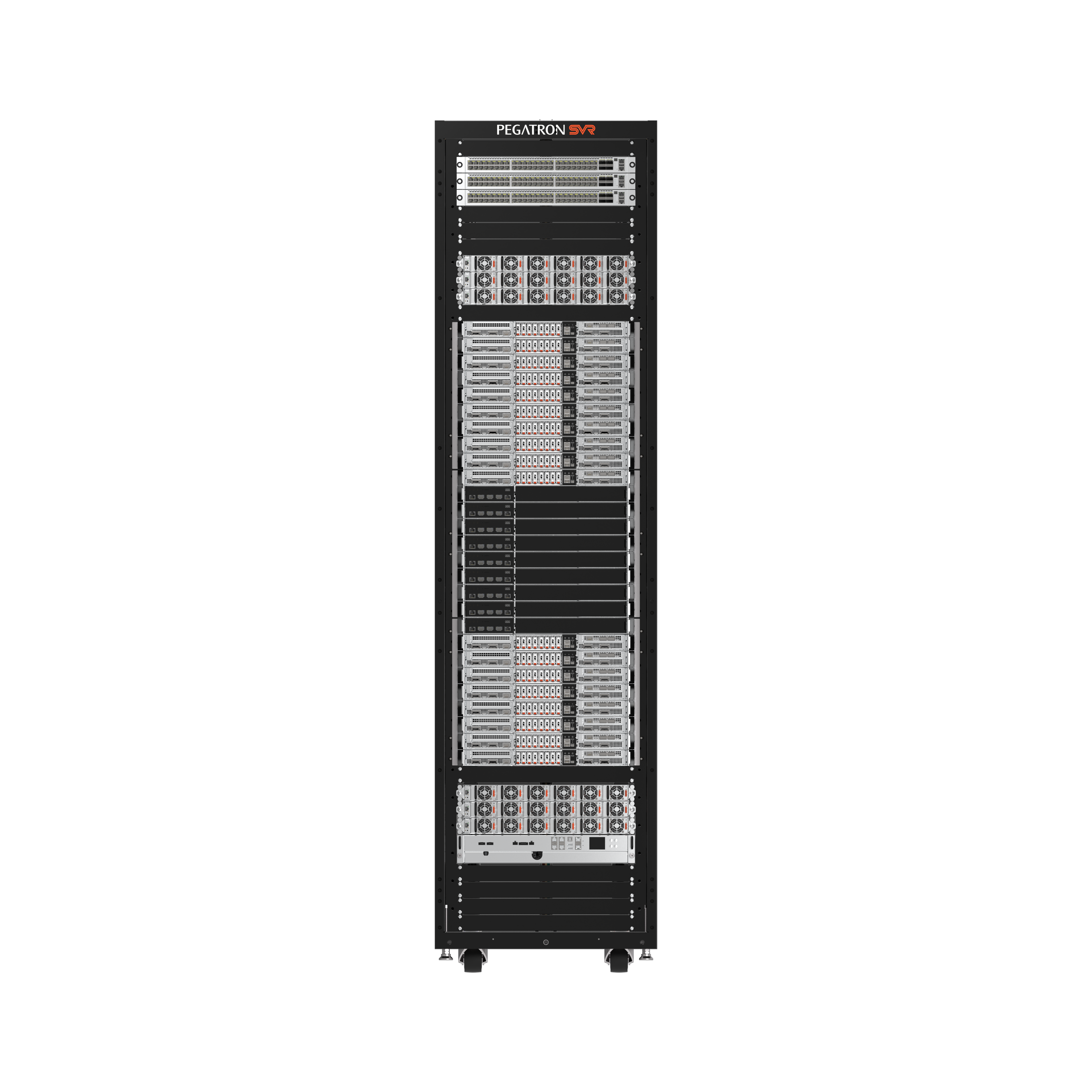

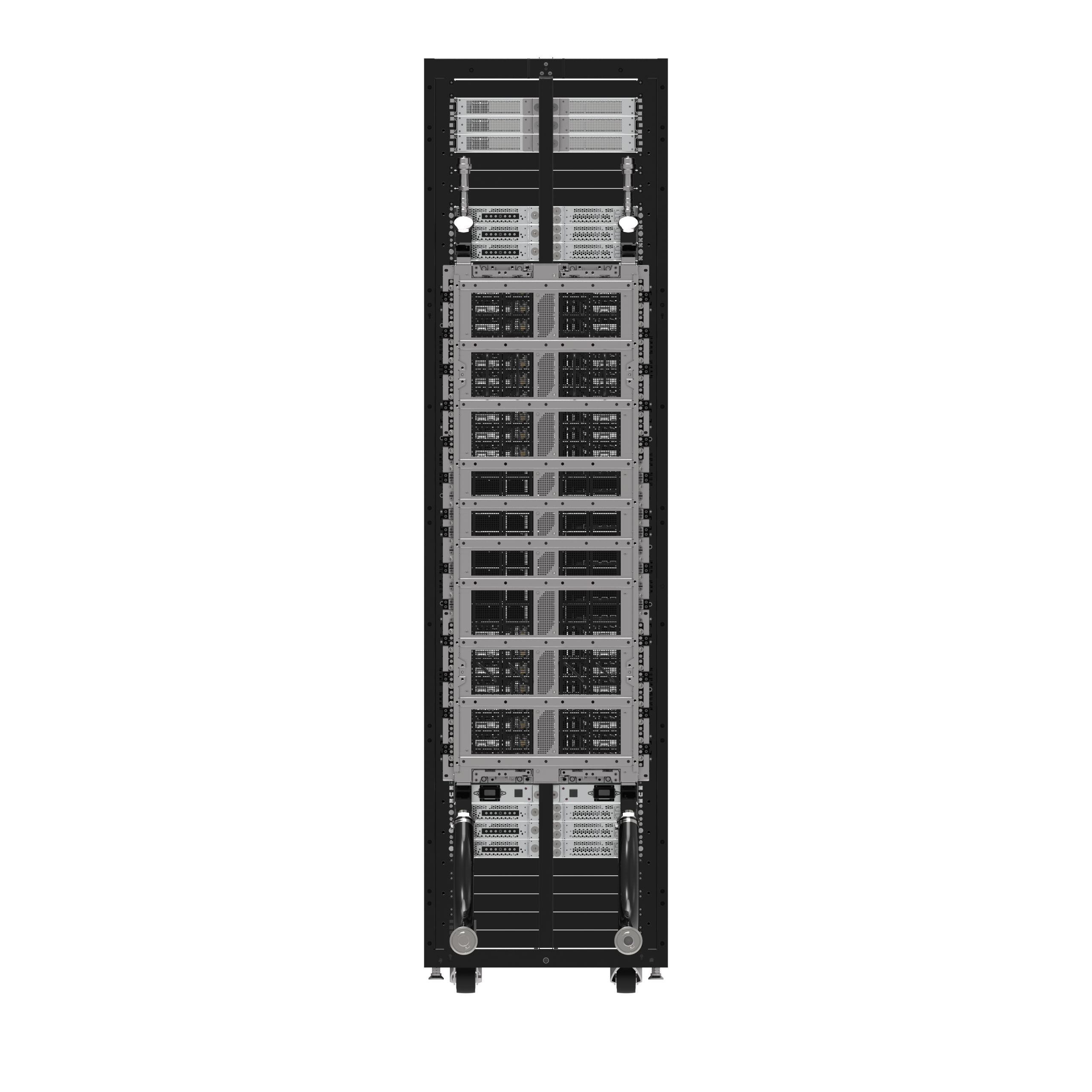

NVIDIA GB300 NVL72, 36 Grace™ Arm® Neoverse V2 CPUs and 72 Blackwell Ultra GPUs, NVIDIA NVLink™ Switch Tray, Built for the Age of AI Reasoning
- ⦁ Per Rack:
- 18 x GB300 Compute Trays + 9 x NVLink™ Switch Trays

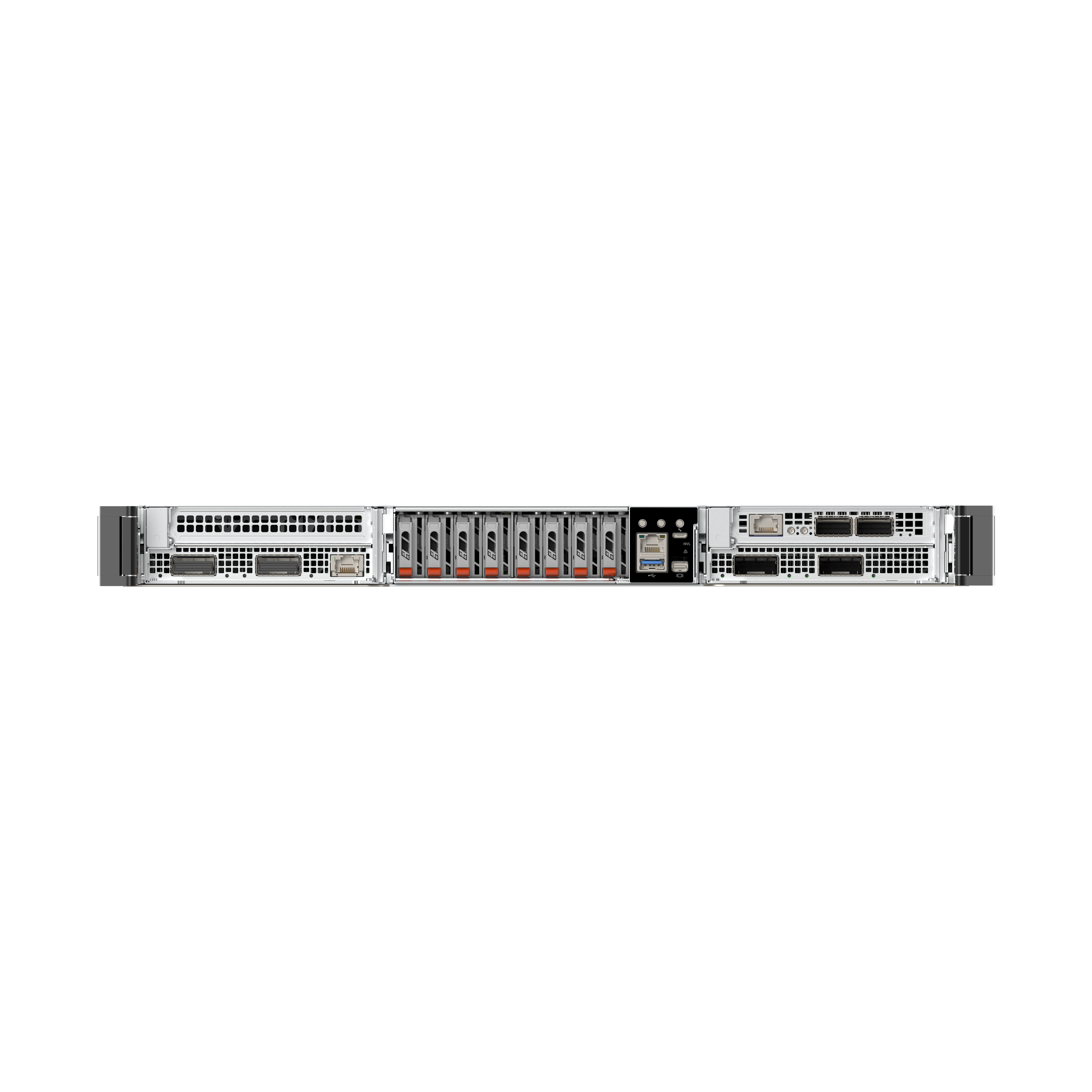

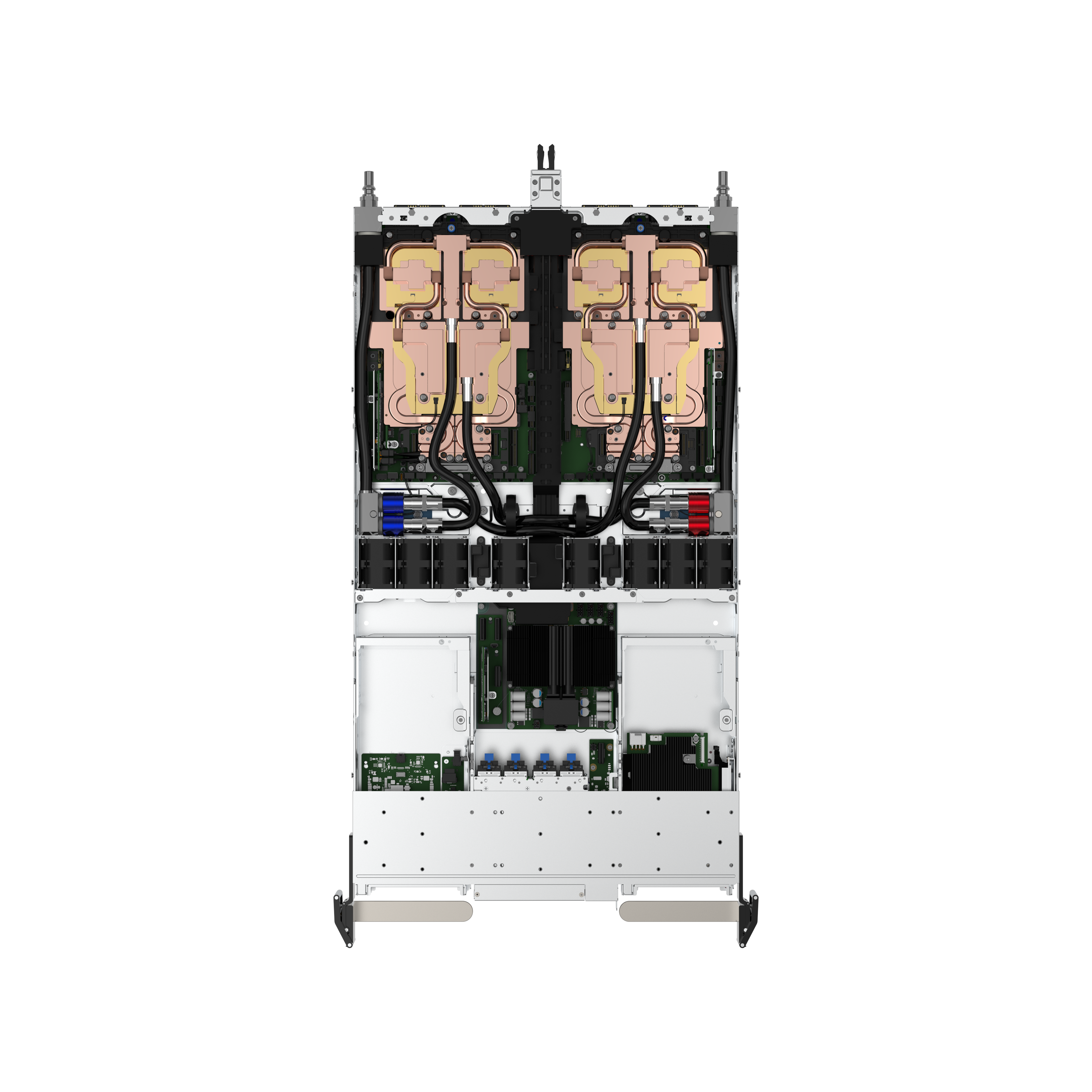

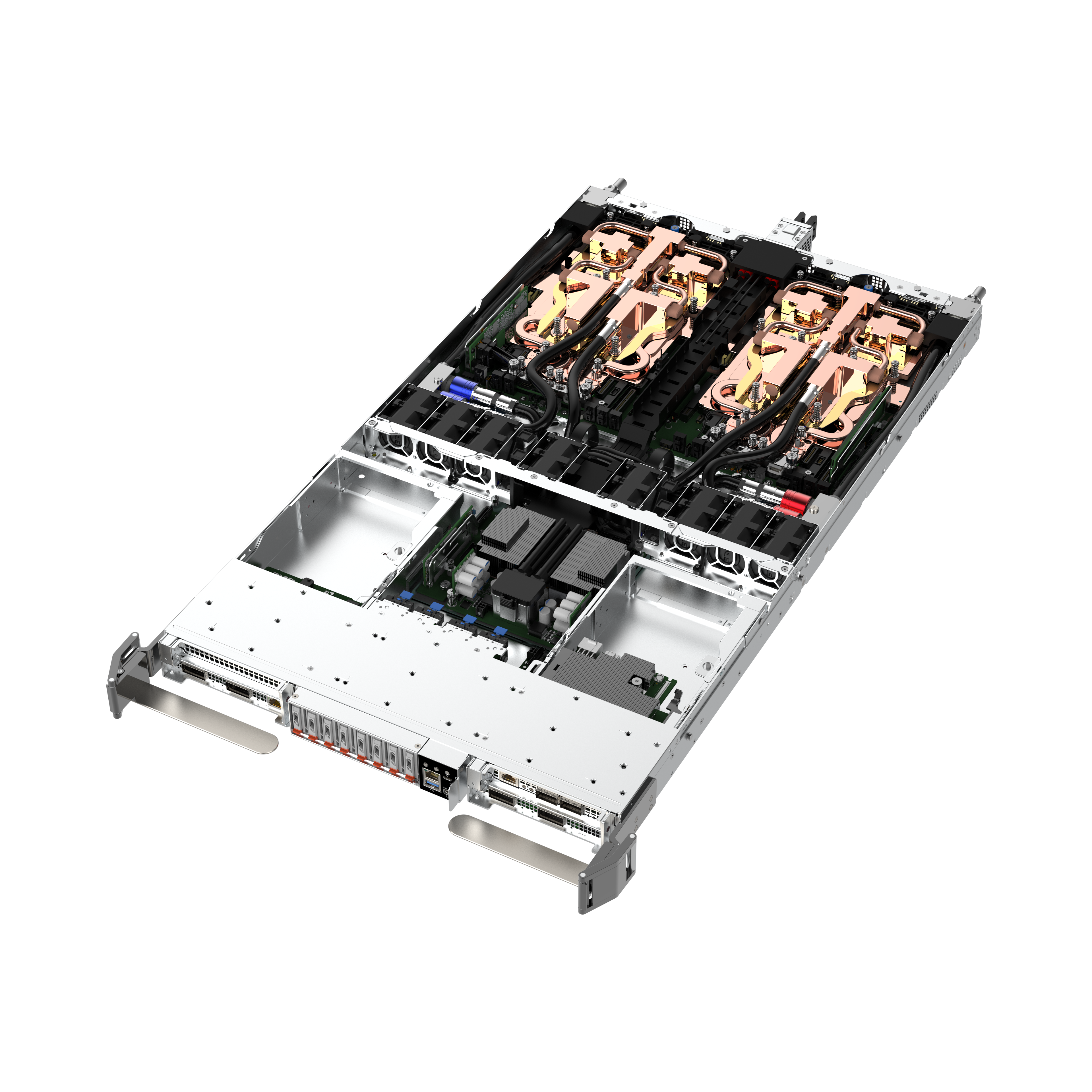

- Liquid cooling - ⦁ Per Tray:
- 4 x NVIDIA Blackwell Ultra GPU + 2 x Grace™ CPU
- 960GB LPDDR5X + 1152GB HBM3e
- 4x NVIDIA NVLink™ Switch
- 2 x NVIDIA ConnectX®-8 NICs (1-port 800Gb/s)
- 1 x BlueField®-3 DPU (400Gb/s)
Key Features
- 1. Per Rack:
- 18 x GB300 Compute Trays + 9 x NVLink™ Switch Trays
- Liquid cooling - 2. Per Tray:
- 4 x NVIDIA Blackwell Ultra GPU + 2 x Grace™ CPU
- 960GB LPDDR5X + 1152GB HBM3e
- 4x NVIDIA NVLink™ Switch
- 2 x NVIDIA ConnectX®-8 NICs (1-port 800Gb/s)
- 1 x BlueField®-3 DPU (400Gb/s)
| Form Factor | |
| Form Factor | |
|
Chassis Form Factor 48 RU MGX rack 18x Computing tray per rack |
|
|
Chassis Dimension (W x H x D) 1U MGX chassis 438 x 43.6 x 766 mm 172.4 x 17.2 x 301.6 inch Rack 600 x 2296 x 1200 mm 23.6 x 90.4 x 47.2 inch |
|
| Processor | |
| Processor | |
|
Number of Processors 2 |
|
|
Processor Type NVIDIA Grace™ CPU (72 Arm Neoverse V2 Cores) |
|
|
Max. TDP Support Up to 300W |
|
| GPU | |
| 4x NVIDIA Blackwell Ultra GPUs, 1400W TDP | |
| GPU | 4x NVIDIA Blackwell Ultra GPUs, 1400W TDP |
| Memory | |
| Memory | |
|
Total Slots Onboard Memory |
|
|
Memory Type Per tray: CPU: 2x 480GB LPDDR5X GPU: 4x 288GB HBM3e |
|
| Storage Bays | |
| Storage Bays | |
|
SKU - #1 8 x E1.S NVMe |
|
| Onboard Storage | |
| 1x M.2 2280/22110 NVMe | |
| Onboard Storage | 1x M.2 2280/22110 NVMe |
| Management | |
| Aspeed® AST2600 | |
| Management | Aspeed® AST2600 |
| Security | |
| TPM2.0 | |
| Security | TPM2.0 |
| Networking Interface | |
|

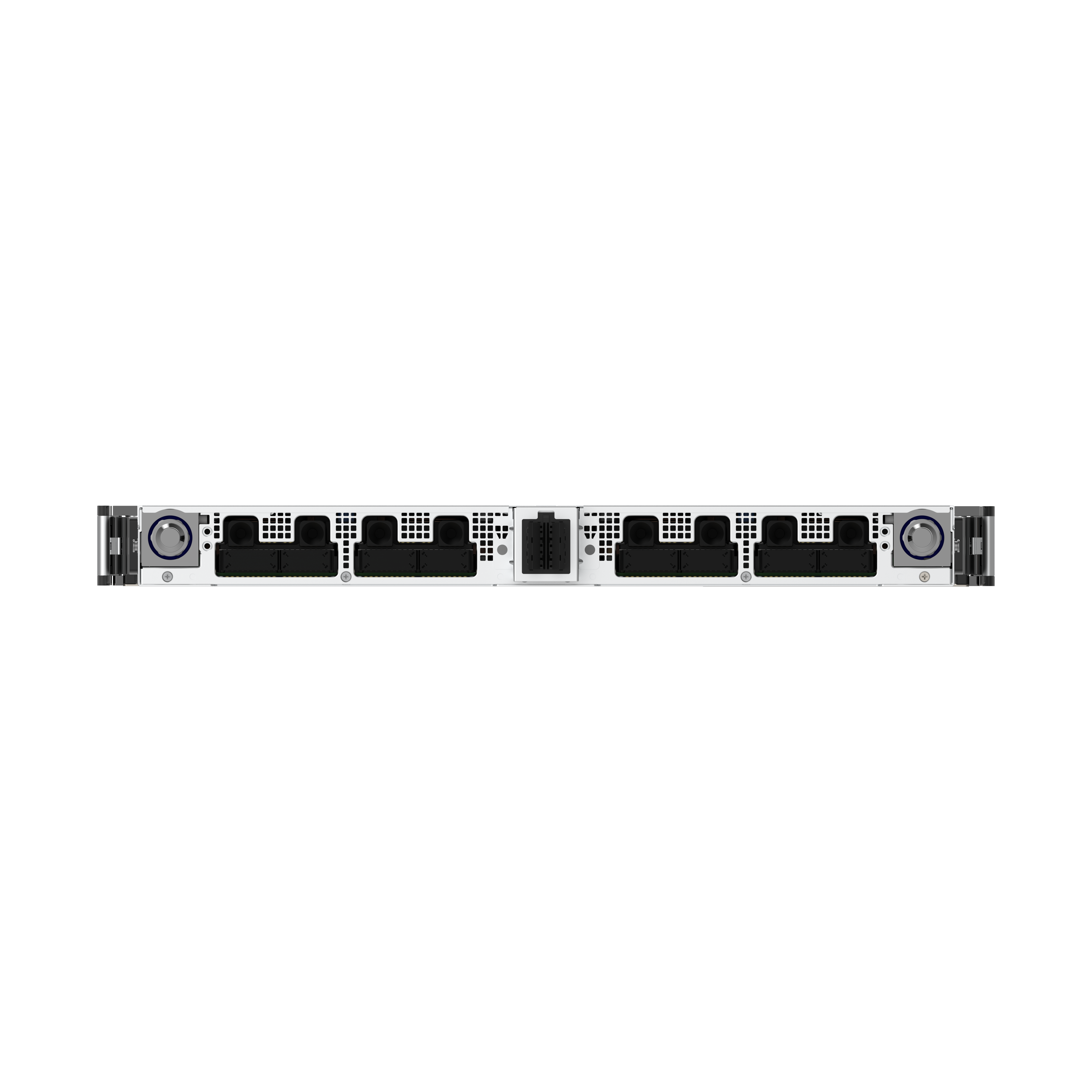

Per tray: 4x NVIDIA NVLink™ Connectors (1.8TB/s) 4x NVIDIA ConnectX®-8 SuperNIC™ ports (800Gb/s) 1x NVIDIA BlueField®-3 DPUs (dual ports 400Gb/s) |
|
| Networking Interface | Per tray: 4x NVIDIA NVLink™ Connectors (1.8TB/s) 4x NVIDIA ConnectX®-8 SuperNIC™ ports (800Gb/s) 1x NVIDIA BlueField®-3 DPUs (dual ports 400Gb/s) |
| Front I/O Ports | |
| 1 x I/O module | |
| Front I/O Ports | 1 x I/O module |
| Power Supply | |
|

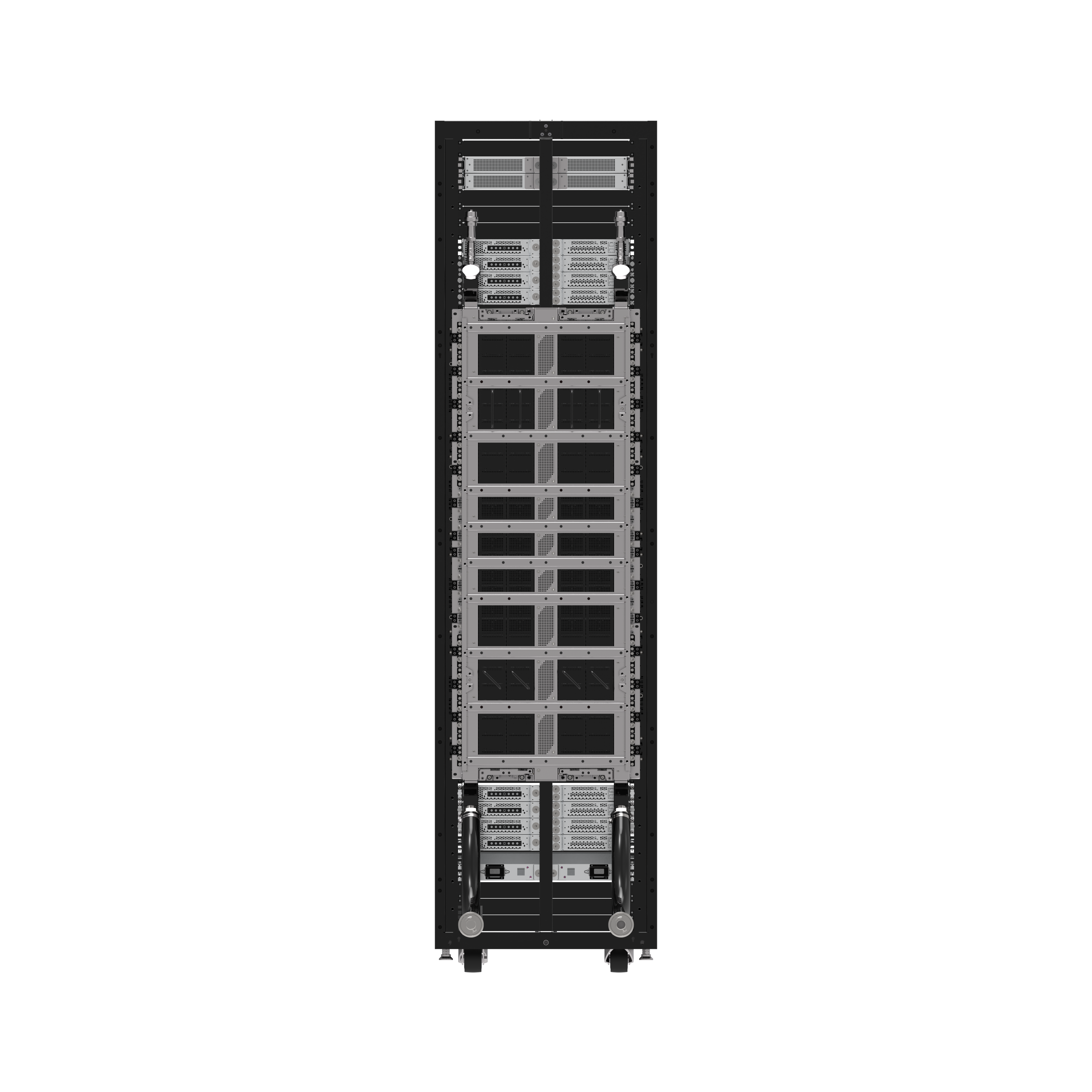

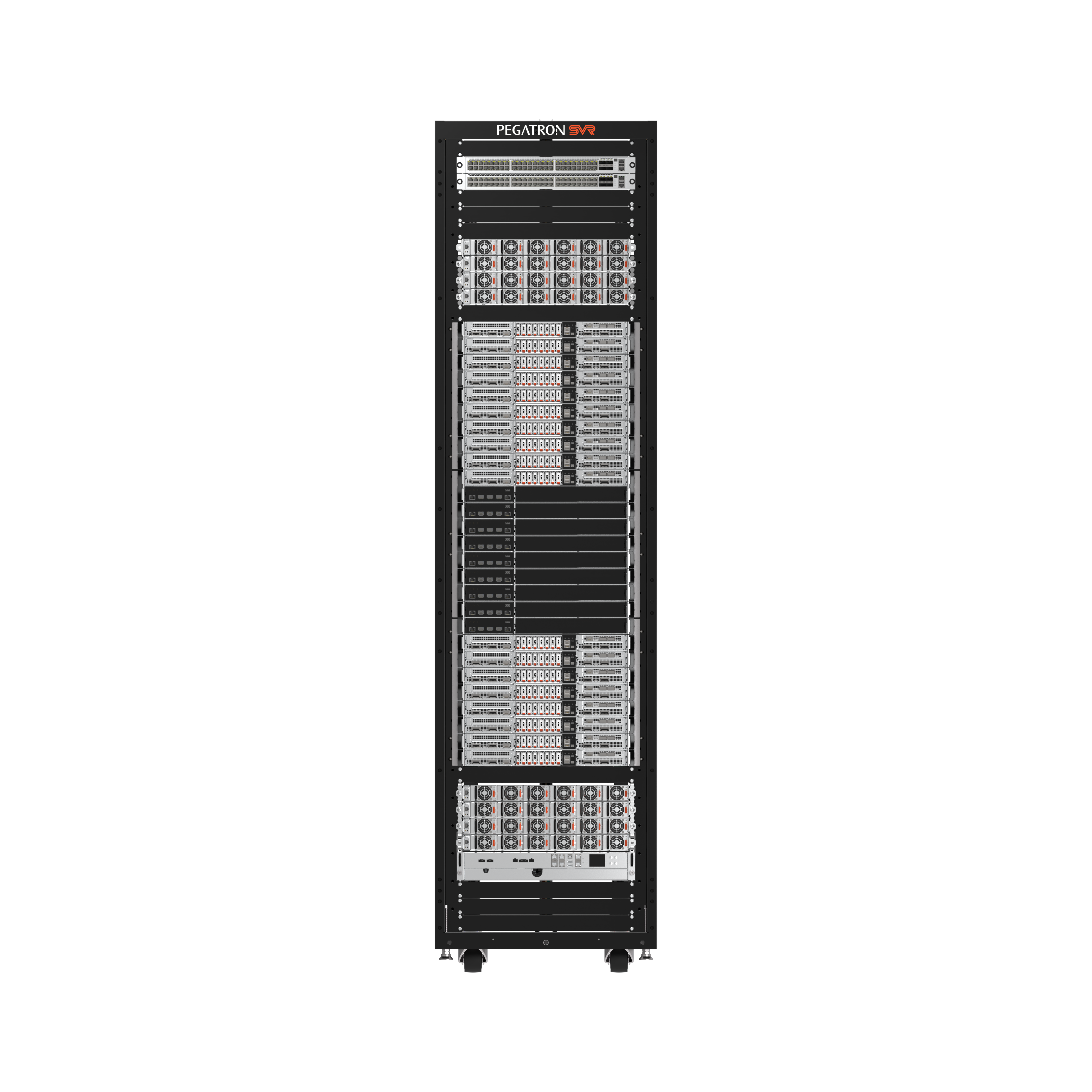

Power shelf 6 or 8 x 1U 33kW (6 x 5.5kW PSUs) |
|
| Power Supply | Power shelf 6 or 8 x 1U 33kW (6 x 5.5kW PSUs) |
