NEW
MPND400-2
Open Disaggregate Coherent Platform
- ⦁ 2 sleds with 1.6TB high transport capacity, hitless 1+1
- ⦁ ARM CPU with 8GB DDR4, 64GB eMMC, and 128GB M.2 SSD

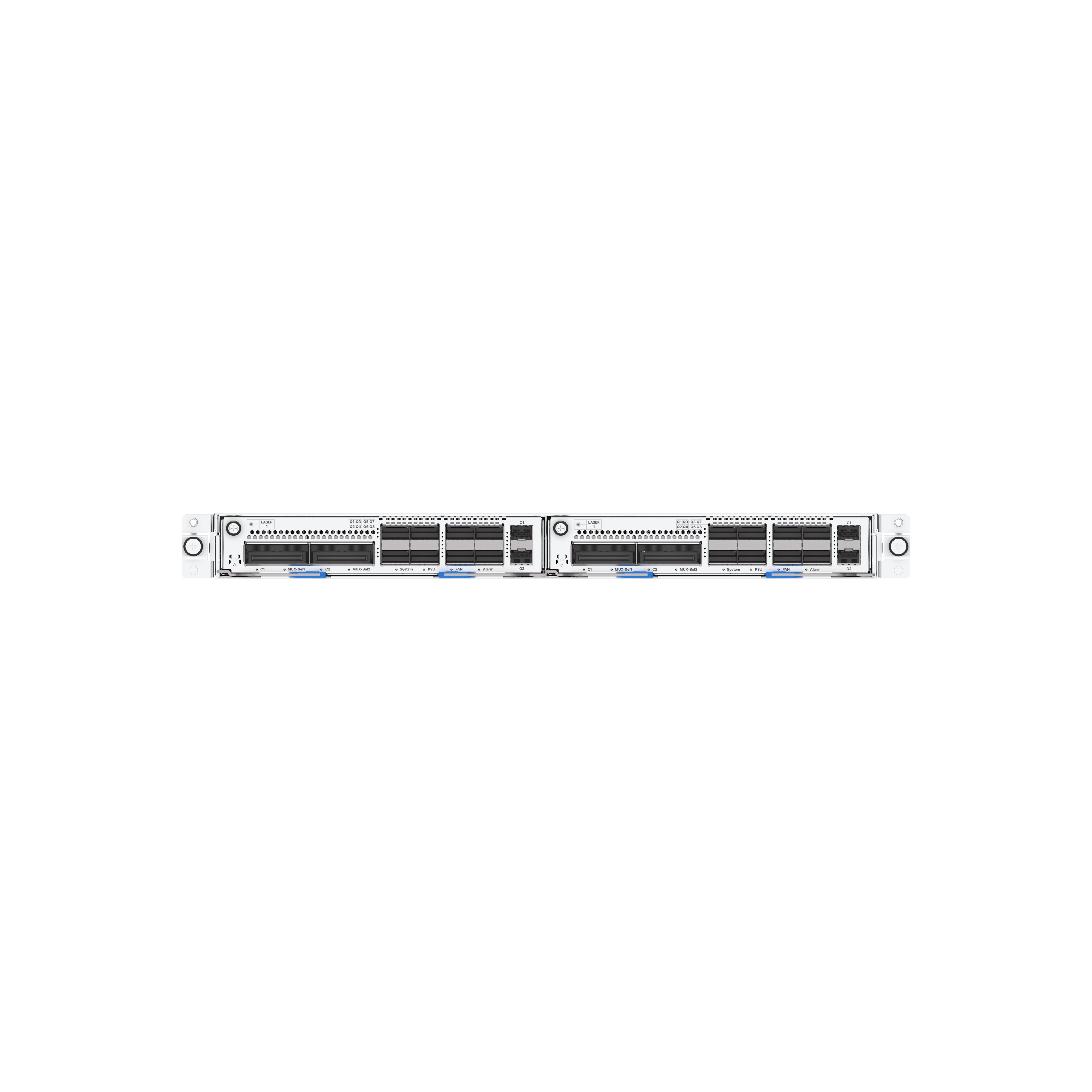

- ⦁ Two front transmission slots with 1+1 redundant sleds:

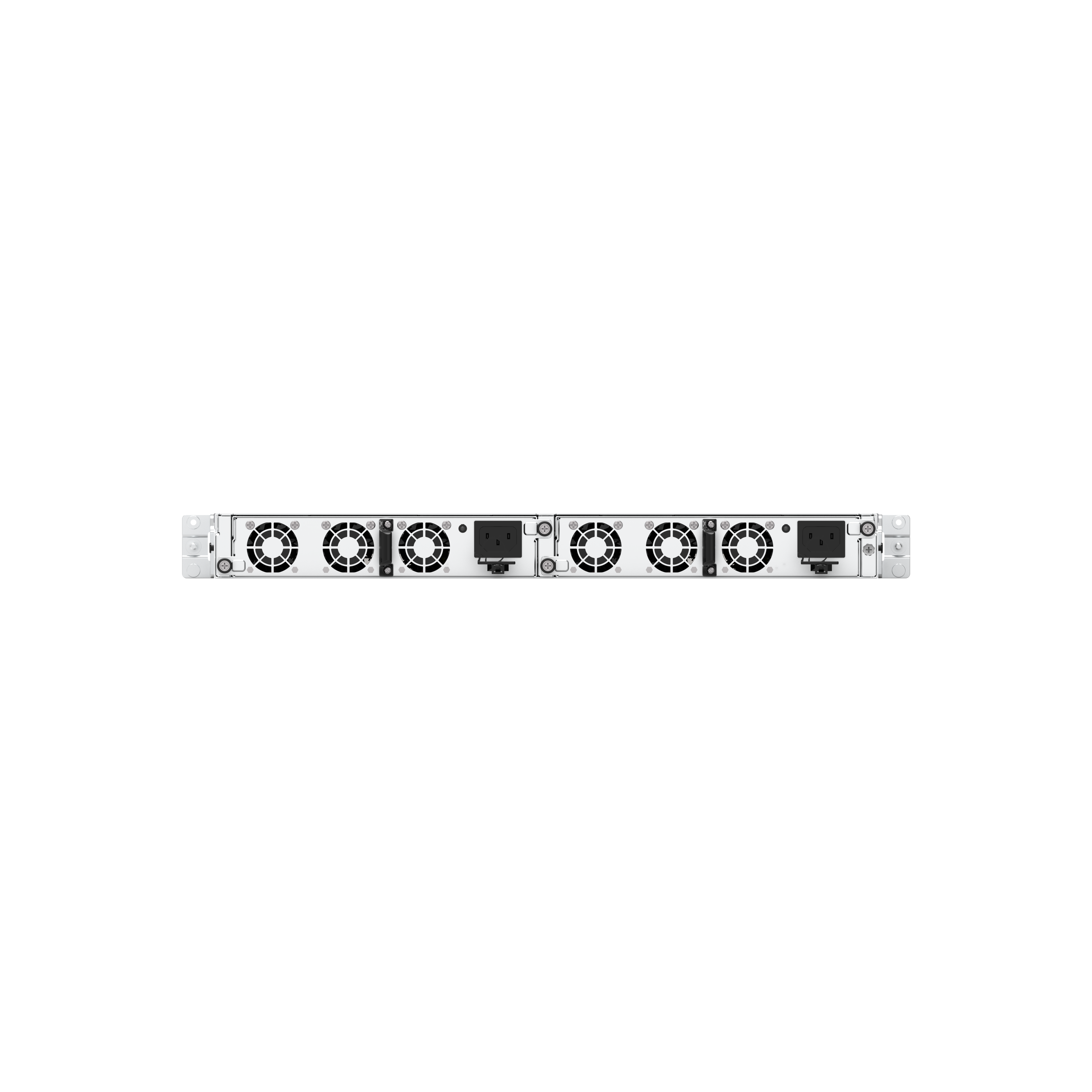

- Each sled with 2× 400G CFP2-DCO + 8 × 100GbE QSFP28 Ports - ⦁ Two rear power-serving trays with 1+1 redundant sleds:
- Each sled embedded with a three-fan module and one PSU - ⦁ Redundant hot swappable PSUs (1+1) with embedded FANs (3+3)
- AC100-240VAC, 50/60Hz, 6A(600W)
- DC40-60VDC, 20A(600W)
Key Features
- 1. 2 sleds with 1.6TB high transport capacity, hitless 1+1
- 2. ARM CPU with 8GB DDR4, 64GB eMMC, and 128GB M.2 SSD
- 3. Two front transmission slots with 1+1 redundant sleds:
- Each sled with 2× 400G CFP2-DCO + 8 × 100GbE QSFP28 Ports - 4. Two rear power-serving trays with 1+1 redundant sleds:
- Each sled embedded with a three-fan module and one PSU - 5. Redundant hot swappable PSUs (1+1) with embedded FANs (3+3)
- AC100-240VAC, 50/60Hz, 6A(600W)
- DC40-60VDC, 20A(600W)
| Form Factor | |
| Form Factor | |
|
Chassis Form Factor 1RU 19” |
|
|
Chassis Dimension (mm) 438 (W) x 43 (H) x 430 (D) |
|
| Processor | |
| Processor | |
|
Processor Type NXP LS1028A |
|
| GPU | |
| Microchip META-DX1 | |
| GPU | Microchip META-DX1 |
| Memory | |
| Memory | |
|
Memory Type DDR4 |
|
|
DIMM Capacity (GB per DIMM) 8GB |
|
| Onboard Storage | |
| SSD: 128GB | |
| Onboard Storage | SSD: 128GB |
| Networking Interface | |
| 2 × 1000BASE-X SFP | |
| Networking Interface | 2 × 1000BASE-X SFP |
| Front I/O Ports | |
|
Client: 8 × 100GbE QSFP28 Ports supporting 10GE/40GE/100GE/OTU4 Line: 2 × 400G CFP2-DCO Ports supporting 400G/300G/200G/100G format Managements: 2 x SFP 1000BASE-X |
|
| Front I/O Ports | Client: 8 × 100GbE QSFP28 Ports supporting 10GE/40GE/100GE/OTU4 Line: 2 × 400G CFP2-DCO Ports supporting 400G/300G/200G/100G format Managements: 2 x SFP 1000BASE-X |
| Power Supply | |
|
2 slots for hot-swappable PSU-Fan trays, supporting 1 + 1 redundancy. AC Input: 100 ~ 240VAC 50/60 Hz (600W) DC Input: 40 ~ 60VDC (600W) Max power consumption: 480W |
|
| Power Supply | 2 slots for hot-swappable PSU-Fan trays, supporting 1 + 1 redundancy. AC Input: 100 ~ 240VAC 50/60 Hz (600W) DC Input: 40 ~ 60VDC (600W) Max power consumption: 480W |
| Fans | |
| 3 embedded fans in each PSU-Fan tray | |
| Fans | 3 embedded fans in each PSU-Fan tray |
