RA4401-72N1
NVIDIA GB200 NVL72, 36 Grace™ CPUs and 72 Blackwell GPUs, NVIDIA NVLink™ Switch Tray, for Real-Time Trillion-Parameter Inference and Training

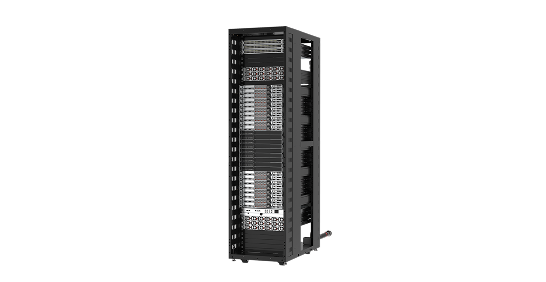

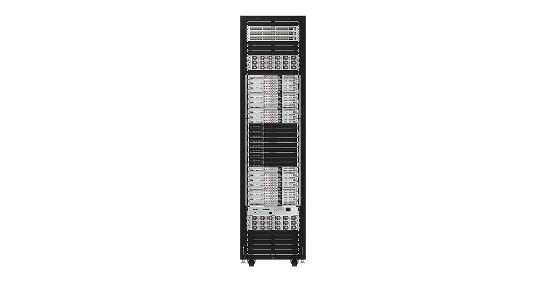

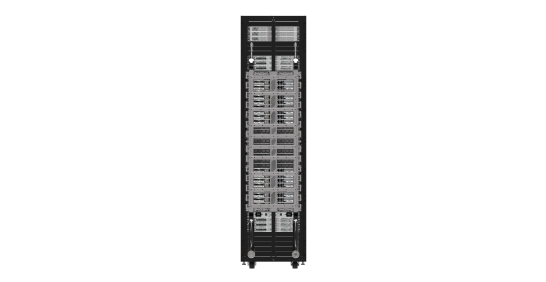

- ⦁ Per Rack:
- 18 x GB200 compute trays + 9 x NVLink™ switch trays

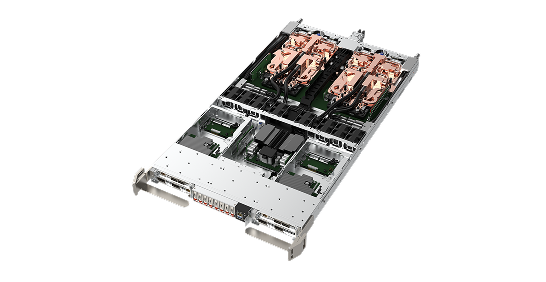

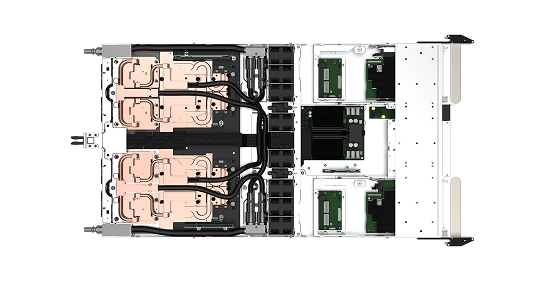

- Liquid cooling - ⦁ Per Tray:
- 4 x NVIDIA Blackwell GPU + 2 x Grace™ CPU
- 960GB LPDDR5X + 744GB HBM3e
- 4 x NVIDIA NVLink™ Connectors (1.8TB/s)
- 4 x NVIDIA ConnectX®-7 OSFP Ports (400Gb/s)
- 2 x NVIDIA BlueField®-3 DPUs (400Gb/s)
Key Features
- 1. Per Rack:
- 18 x GB200 compute trays + 9 x NVLink™ switch trays
- Liquid cooling - 2. Per Tray:
- 4 x NVIDIA Blackwell GPU + 2 x Grace™ CPU
- 960GB LPDDR5X + 744GB HBM3e
- 4 x NVIDIA NVLink™ Connectors (1.8TB/s)
- 4 x NVIDIA ConnectX®-7 OSFP Ports (400Gb/s)
- 2 x NVIDIA BlueField®-3 DPUs (400Gb/s)
| Form Factor | |
| Form Factor | |
|
Chassis Form Factor 48 RU MGX rack 18 x Compute tray per rack |
|
|
Chassis Dimension (mm) 1RU MGX chassis: 438(W) x 43.6(H) x 766 (D) Rack: 600(W) x 2296(H) x 1200(D) |
|
| Processor | |
| Processor | |
|
Number of Processors 2 |
|
|
Processor Type NVIDIA Grace™ Arm® Neoverse V2 CPUs (72-core) |
|
|
Max. TDP Support 300W |
|
| GPU | |
| 4 x NVIDIA Blackwell Tensor Core GPUs, 1200W TDP | |
| GPU | 4 x NVIDIA Blackwell Tensor Core GPUs, 1200W TDP |
| Memory | |
| Memory | |
|
Total Slots Onboard memory |
|
|
Memory Type Per tray: CPU: 2 x 480GB LPDDR5X GPU: 4 x 186GB HBM3e |
|
| Storage Bays | |
| Storage Bays | |
|
SKU -#1 Per tray: 8 x E1.S NVMe |
|
| Onboard Storage | |
| 1 x M.2 2280/22110 NVMe | |
| Onboard Storage | 1 x M.2 2280/22110 NVMe |
| Management | |
| Aspeed® AST2600 | |
| Management | Aspeed® AST2600 |
| Security | |
| TPM 2.0 | |
| Security | TPM 2.0 |
| Networking Interface | |
|
Per tray: 4 x NVIDIA NVLink™ Switch 2 x NVIDIA ConnectX®-7 NICs (dual-port 400Gb/s) 2 x NVIDIA BlueField®-3 DPUs (400Gb/s) |
|
| Networking Interface | Per tray: 4 x NVIDIA NVLink™ Switch 2 x NVIDIA ConnectX®-7 NICs (dual-port 400Gb/s) 2 x NVIDIA BlueField®-3 DPUs (400Gb/s) |
| Front I/O Ports | |
| 1 x I/O module | |
| Front I/O Ports | 1 x I/O module |
| Power Supply | |
|
Power Shelf 6 x 1U 33kW (6x 5.5kW PSUs) |
|
| Power Supply | Power Shelf 6 x 1U 33kW (6x 5.5kW PSUs) |
| Fans | |
| 8 x 4056 Fans | |
| Fans | 8 x 4056 Fans |
| Operating Environment | |
|
Ambient operating temperature range: 5°C to +35 °C Ambient Non-operating temperature: -40°C to +68 °C Operating relative humidity: 10% to 90% (noncondensing) Non-operating relative humidity: up to 93% (noncondensing) |
|
| Operating Environment | Ambient operating temperature range: 5°C to +35 °C Ambient Non-operating temperature: -40°C to +68 °C Operating relative humidity: 10% to 90% (noncondensing) Non-operating relative humidity: up to 93% (noncondensing) |
