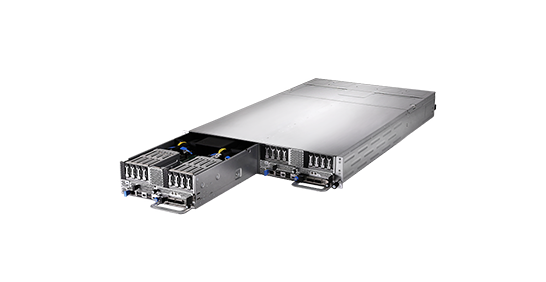

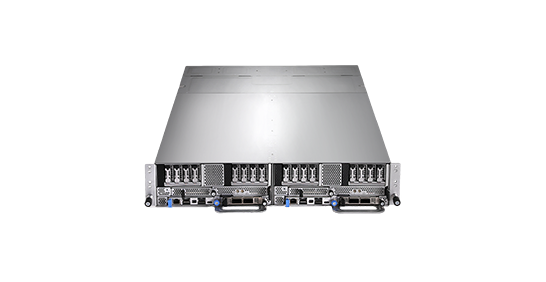

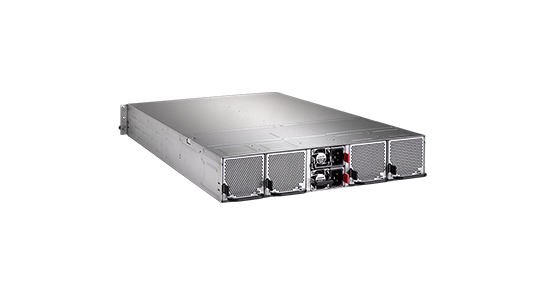

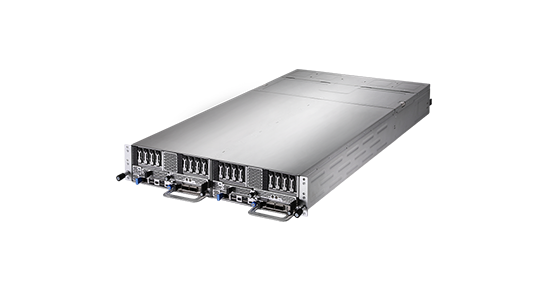

MS302-2T1
2U, 2-Node 1-Socket Intel® Xeon® 6900- series with P-cores processors Compute/GPU Multi-Node Server
- ⦁ Equipped with 2 x Intel® Xeon® 6900-series with P-Cores processors
- ⦁ DC-MHS Compliance with M-SDNO Class A 335

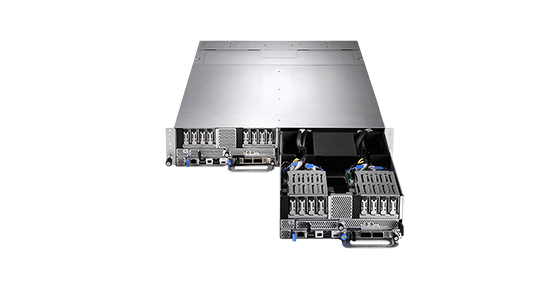

- ⦁ Compute Sled vs. GPU Sled: Two Sled Configurations for different applications
- ⦁ Support DC-SCM 2.0 and OCP 3.0 ready
- ⦁ Target Applications: Compute inventive / AI workloads / Scale out workloads
Key Features
- 1. Equipped with 2 x Intel® Xeon® 6900-series with P-Cores processors
- 2. DC-MHS Compliance with M-SDNO Class A 335
- 3. Compute Sled vs. GPU Sled: Two Sled Configurations for different applications
- 4. Support DC-SCM 2.0 and OCP 3.0 ready
- 5. Target Applications: Compute inventive / AI workloads / Scale out workloads
| MS302-2T1 | ||
| Chassis Form Factor | 2U 2-Node | |
| Chassis Dimension (mm) | 447 (W) x 86.8 (H) x 800 (D) | |
| Mainboard Form Factor | M-SDNO Class A 335 | |
| Mainboard Dimension (mm) | 210 x 335 | |
| Per Node Specifications | ||
| Processor | Number of Processors | 1 |
| Processor Type | Intel® Xeon® 6 Processors ⦁ Intel® Xeon® 6900 Series with P-Cores |
|
| Max. TDP Support | Up to 400W w/ 2U EVAC heatsink in IO Node Up to 500W w/ 2U heatsink in Compute Node/ Front-end Node |
|
| Memory | Total Slots | 12 |
| Memory Type | 1DPC: DDR5 RDIMM up to 6400 MT/s | |
| DIMM Capacity (GB per DIMM) |
32GB, 64GB, 96GB | |
| Expansion Slots | SKU -#1 | IO Node SKU: ⦁ 2 x PCIe5.0 x16 ⦁ 1 x OCP3.0 NIC |
| SKU -#2 | Compute Node SKU: ⦁ 1 x OCP3.0 NIC |
|
| SKU -#3 | Front-end Node SKU: ⦁ 1 x OCP3.0 NIC |
|
| Storage Bays | SKU -#1 | IO Node SKU: ⦁ 4 x E.1S SSD |
| SKU -#2 | Compute Node SKU: ⦁ 8 x E.1S SSD |
|
| Onboard Storage | 2 x M.2 SSD 2280/22110 | |
| Management | Aspeed® AST2600 management controller | |
| Security |
1 x TPM 2.0 1 x PROT (Platform Root Of Trust), PFR4.0 complied |
|
| Networking Interface | 1 x NIC installed in OCP 3.0 slot | |

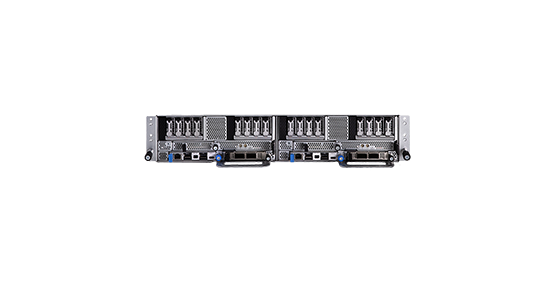

| Front I/O Ports |
1 x IPMI RJ-45 1 x USB 3.2 Gen 1x1 port w/o USB2.0 support, the Speed is 5Gbps 1 x USB 2.0 port 1 x Type-C-USB (UART) 1 x Mini-DP 1 x Power button/LED, Power on with Green color and Power off with Amber color 1 x BMC Status LED with Amber color LED 1 x UID button with Blue color LED |
|
| Rear I/O Ports | 1 x Status LED | |
| OS Support |
RedHat RHEL 9.1 or later Ubuntu 22.04.2 LTS or later Windows Server 2022 |
|
| Other Specifications per System/Chassis | ||

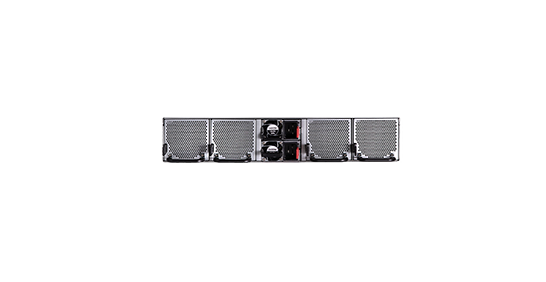

| Power Supply | 1+1 2400W CRPS | |
| Fans | 4 x 8056 Fans | |
| Operating Environment |
Ambient operating temperature range: 10°C to +35 °C Ambient Non-operating temperature: -40°C to +70 °C Operating relative humidity: 10% to 80%, noncondensing Non-operating relative humidity: up to 90%, noncondensing |
|
| Conformity Country List |
North America: UL (Safety) / FCC ( EMC) EU: CB(safety) / CE (EMC) |
|
