AS201-1N0
Nvidia MGX 2U Common Design, Grace-Hopper Superchip, Air cooling
- ⦁ Equipped with Nvidia GH200 Grace Hopper Superchip, up to 1000W TDP
- ⦁ Combined with Nvidia BlueField-3 DPU (Data Processing Unit) enables software-defined, hardware-accelerated cloud infrastructure
- ⦁ Support 2 x Nvidia L40 (FHFL dual-slot, up to 300W) or L4 (LP, up to 75W)
- ⦁ Up to 480GB of LPDDR5X memory with error-correction code (ECC)
- ⦁ Built-in Hardware Security (TPM2.0)
- ⦁ Target Applications: Datacenter HPC Inference, GenAI Inference, Omniverse
Key Features
- 1. Equipped with NVIDIA® GH200 Grace Hopper Superchip for large scale AI, HPC, and GenAI inference applicationsSD Built in Hardware Security: TPM2.0
- 2. Modularized hardware architecture based on NVIDIA® MGX provides greater flexibility to meet the diverse accelerated computing requirements of data centers
- 3. Combined with NVIDIA® BlueField 3 DPU (Data Processing Unit) enables software defined, hardware accelerated cloud infrastructure

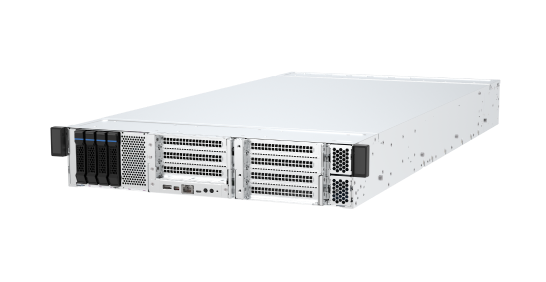

2U server with NVIDIA GH200 Grace Hopper Superchip
NVIDIA® MGX™ architecture with modular infrastructure
Optimized for memory intensive inference and HPC performance
ORv3 Bus-bar SKU option
| AS201-1N0 | ||
| Chassis Form Factor | MGX 2U | |
| Chassis Dimension (mm) | 438 (W) x 88 (H) x 900 (D) | |
| Mainboard Form Factor | Micro MGX | |
| Mainboard Dimension (mm) | 210.0 x 305.59 | |
| Per Node Specifications | ||
| Processor | Number of Processors | 1 |
| Processor Type | NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip | |
| Max. TDP Support | 1000W TDP Superchip (Air Cooled) | |
| GPU | NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Air-cooled) | |
| Memory | Total Slots | Onboard Memory |
| Memory Type | LPDDR5X | |
| DIMM Capacity (GB per DIMM) |
Up to 480GB ECC LPDDR5X Additional GPU Memory: Up to 144GB ECC HBM3 |
|
| Expansion Slots | SKU -#1 | 1 x PCIe 5.0 x16 (FHFL, 1RU Type 1 Long, Front right-hand Top side): For ConnectX-7 200G or BlueField3 200G Card 1 x PCIe 5.0 x16 (FHHL, 2RU Type 1 Short, Front middle side), with Broadcom MegaRAID 9500-16i 1 x PCIe 5.0 x16 (FHFL, 1RU Type 1 Long, Front right-hand Down side) |
| SKU -#2 | 1 x PCIe 5.0 x16 (FHFL, 1RU Type 1 Long, Front right-hand Top side): For ConnectX-7 200G or BlueField3 200G Card 1 x PCIe 5.0 x16 (FHFL, 1RU Type 1 Long, Front right-hand Down side) |
|
| Storage Bays | SKU -#1 | up to 4 x 2.5” PCIe 4.0 NVMe SSD through Broadcom MegaRAID 9500-16i support RAID function |
| SKU -#2 | 2 x 2.5” PCIe 4.0 NVMe SSD | |
| Onboard Storage | 2 x M.2 PCIe 4.0 NVMe (Onboard; for OS usage) | |
| Management | Aspeed® AST2600 management controller | |
| Security | 1 x TPM 2.0 | |
| Networking Interface | NIC card options | |

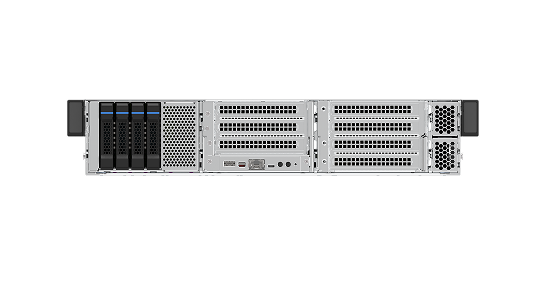

| Front I/O Ports |
1 x Mini Display Port 1 x RJ45 Management Port 1 x COM Port (Micro USB type-B) 1 x Reset button 1 x ID button/LED 1 x Power button with LED |
|

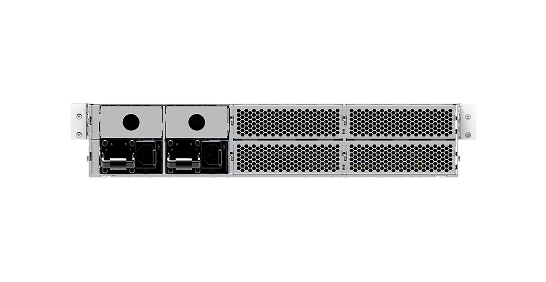

| Rear I/O Ports | n/a | |
| OS Support | Ubuntu 22.04 LTS | |
| Other Specifications per System/Chassis | ||
| Power Supply | 1+1 2000W Titanium CRPS | |
| Fans | 6 x 6056 Fans | |
| Operating Environment |
Operating temperature: 5°C to 35°C Operating humidity: 10%-90% (non-condensing) Non-operating temperature: -40°C to 70°C Non-operating humidity: -55%-85% (non-condensing) |
|
