MS303-4A1C
2OU, 2-Node High Density Server powered by 2-Socket AMD EPYC 9005 CPUs, build for supreme performance and Eco-friendly with liquid cooling.
- ⦁ Dual AMD EPYC 9005-series (Turin) processors per node, support up to 192 Cores, 500W TDP
- ⦁ Support 24 DIMM slots with speed up to 6400MT/s
- ⦁ Direct Liquid Cooling solution on CPUs
- ⦁ 2OU chassis with ORv3 busbar clip (for 48VDC), compliant with OCP ORv3
- ⦁ Support 2 x E1.S with hardware RAID and 8 x E3.S NVMe storage
- ⦁ Support up to 4 x OCP 3.0 NIC + 2 x PCIe5.0 HHHL slots for high performance network expansion
- ⦁ Target Applications: Compute incentive/ Scale out workloads / AI Inference / AI Training
Key Features
- 1. Dual AMD EPYC 9005-series (Turin) processors per node, support up to 192 Cores, 500W TDP
- 2. Support 24 DIMM slots with speed up to 6400MT/s
- 3. Direct Liquid Cooling solution on CPUs
- 4. 2OU chassis with ORv3 busbar clip (for 48VDC), compliant with OCP ORv3
- 5. Support 2 x E1.S with hardware RAID and 8 x E3.S NVMe storage
- 6. Support up to 4 x OCP 3.0 NIC + 2 x PCIe5.0 HHHL slots for high performance network expansion
- 7. Target Applications: Compute incentive/ Scale out workloads / AI Inference / AI Training
| Form Factor | |
| Form Factor | |
|

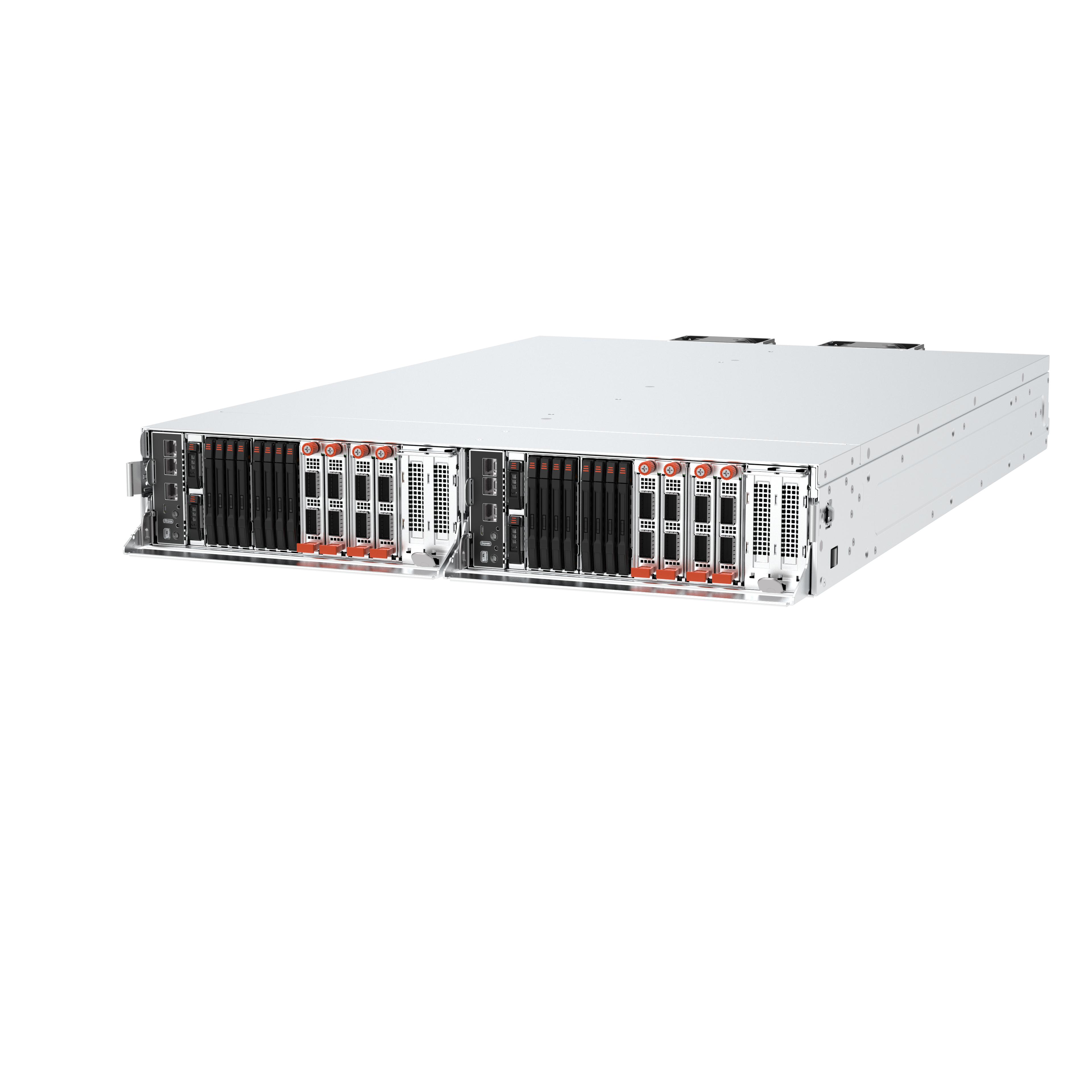

Chassis Form Factor 2OU 2-Node |
|
|
Chassis Dimension (mm) 537 (W) x 93.5 (H) x 809.25 (D) |
|
|
Mainboard Form Factor Half-width MB |
|
|
Mainboard Dimension (mm) 540 x 250 |
|
| Processor | |
| Processor | |
|
Number of Processors 2 |
|
|
Processor Type AMD EPYC™ 9005 series processor |
|
|
Max. TDP Support 500W |
|
| Memory | |
| Memory | |
|
Total Slots 24 |
|
|
Memory Type 1DPC: DDR5 RDIMM up to 6000 MT/s |
|
|
DIMM Capacity <br>(GB per DIMM) 64GB, 96GB, 128GB |
|
| Expansion Slots | |
| Expansion Slots | |
|
SKU - #1 4 x PCIe5 x16 OCP 3.0 NIC slot 2 x PCIe5 Low Profile (HHHL) slot for Add-in Card |
|
| Storage Bays | |
| Storage Bays | |
|
SKU - #1 2 x PCIe3 E1.S NVMe SSD (support hardware RAID for OS) 8 x PCIe5 E3.S 1T NVMe SSD |
|
| Management | |
| Aspeed® AST2600 management controller | |
| Management | Aspeed® AST2600 management controller |
| Security | |
|
TPM 2.0 module PROT 4.0 module ( Aspeed / AST1060 is as hardware solution) |
|
| Security | TPM 2.0 module PROT 4.0 module ( Aspeed / AST1060 is as hardware solution) |
| Networking Interface | |
|
1 x BMC management RJ45 LAN port 2 x GbE management RJ45 LAN port |
|
| Networking Interface | 1 x BMC management RJ45 LAN port 2 x GbE management RJ45 LAN port |
| Front I/O Ports | |
|

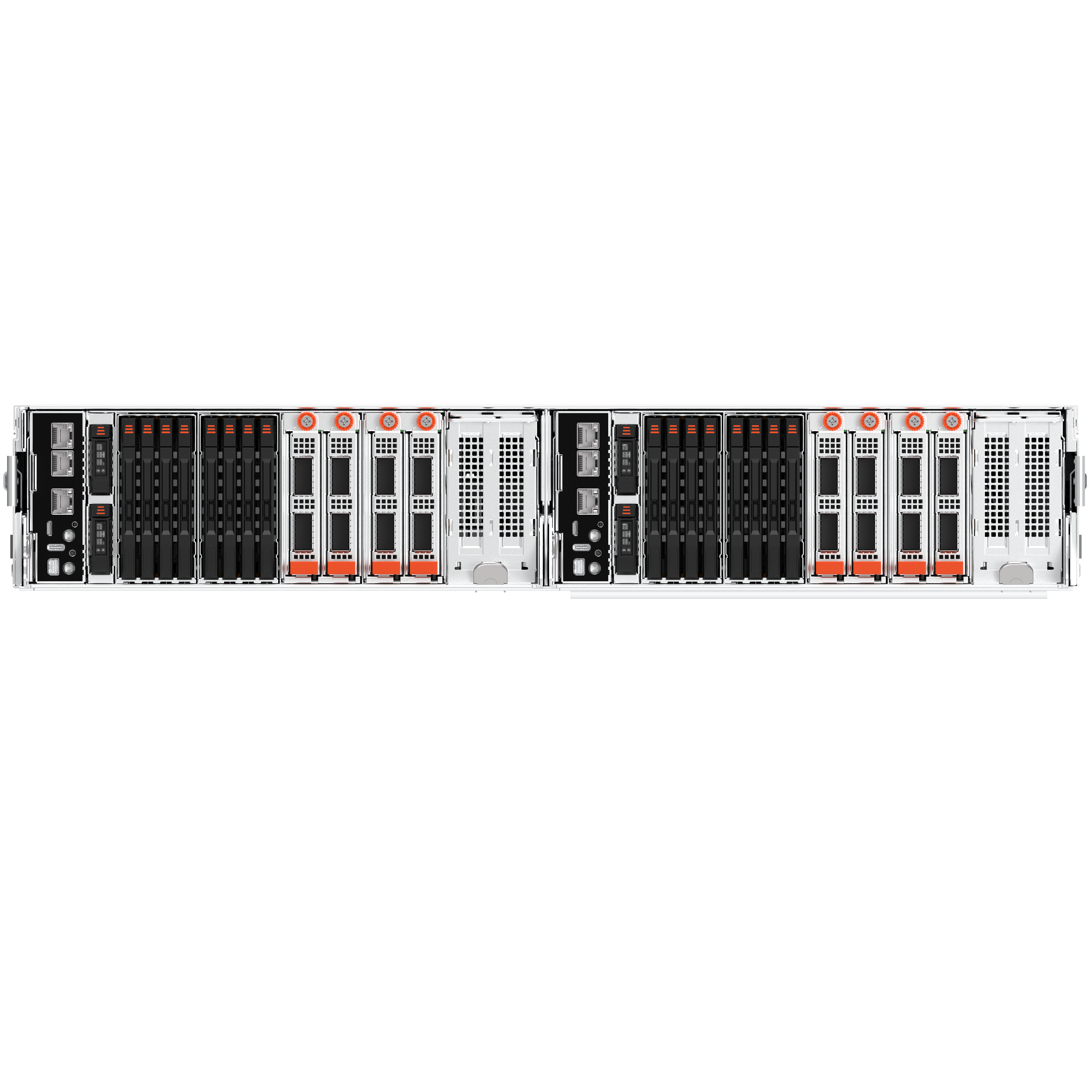

1 x Power button with LED 1 x UID button with LED 1 x BMC Status LED 1 x Micro USB 1 x USB 2.0 Type-C 1 x Mini Display Port |
|
| Front I/O Ports | 1 x Power button with LED 1 x UID button with LED 1 x BMC Status LED 1 x Micro USB 1 x USB 2.0 Type-C 1 x Mini Display Port |
| OS Support | |
|
Ubuntu 22.04 LTS and above RHEL 8.6 and above VMware ESXi8.0 Linux Enterprise Server (SLES): 15 SP5 and above Windows Server 2022 |
|
| OS Support | Ubuntu 22.04 LTS and above RHEL 8.6 and above VMware ESXi8.0 Linux Enterprise Server (SLES): 15 SP5 and above Windows Server 2022 |
| Power Supply | |
| Via 48VDC Busbar | |
| Power Supply | Via 48VDC Busbar |
| Fans | |

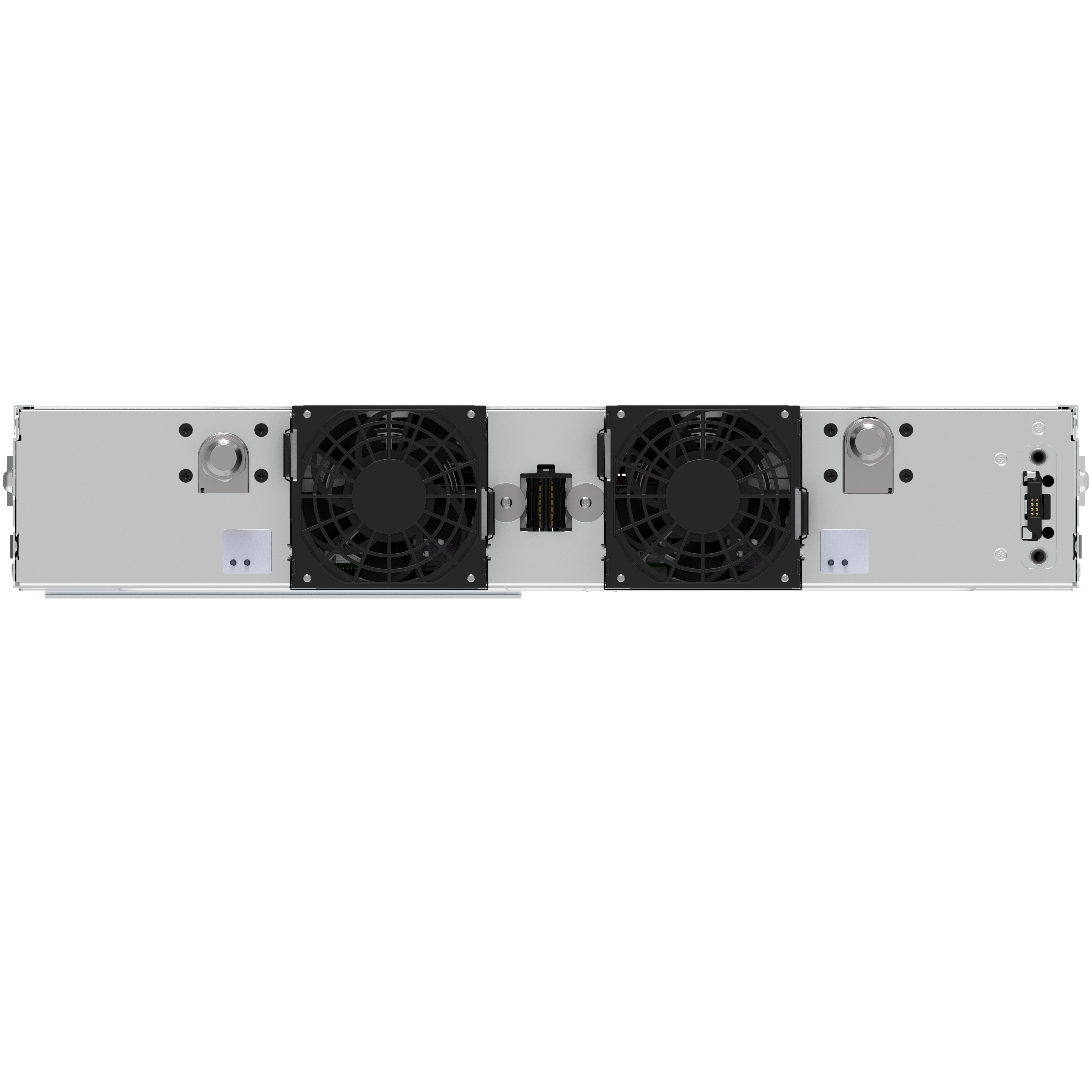

| 2 x 9256 Fan | |
| Fans | 2 x 9256 Fan |
| Operating Environment | |
|
Operating Temperature: 10°C to 35°C Storage temperature range: -40°C to 60 °C Non-operation relative humidity: 10% to 90%, non-condensing |
|
| Operating Environment | Operating Temperature: 10°C to 35°C Storage temperature range: -40°C to 60 °C Non-operation relative humidity: 10% to 90%, non-condensing |
