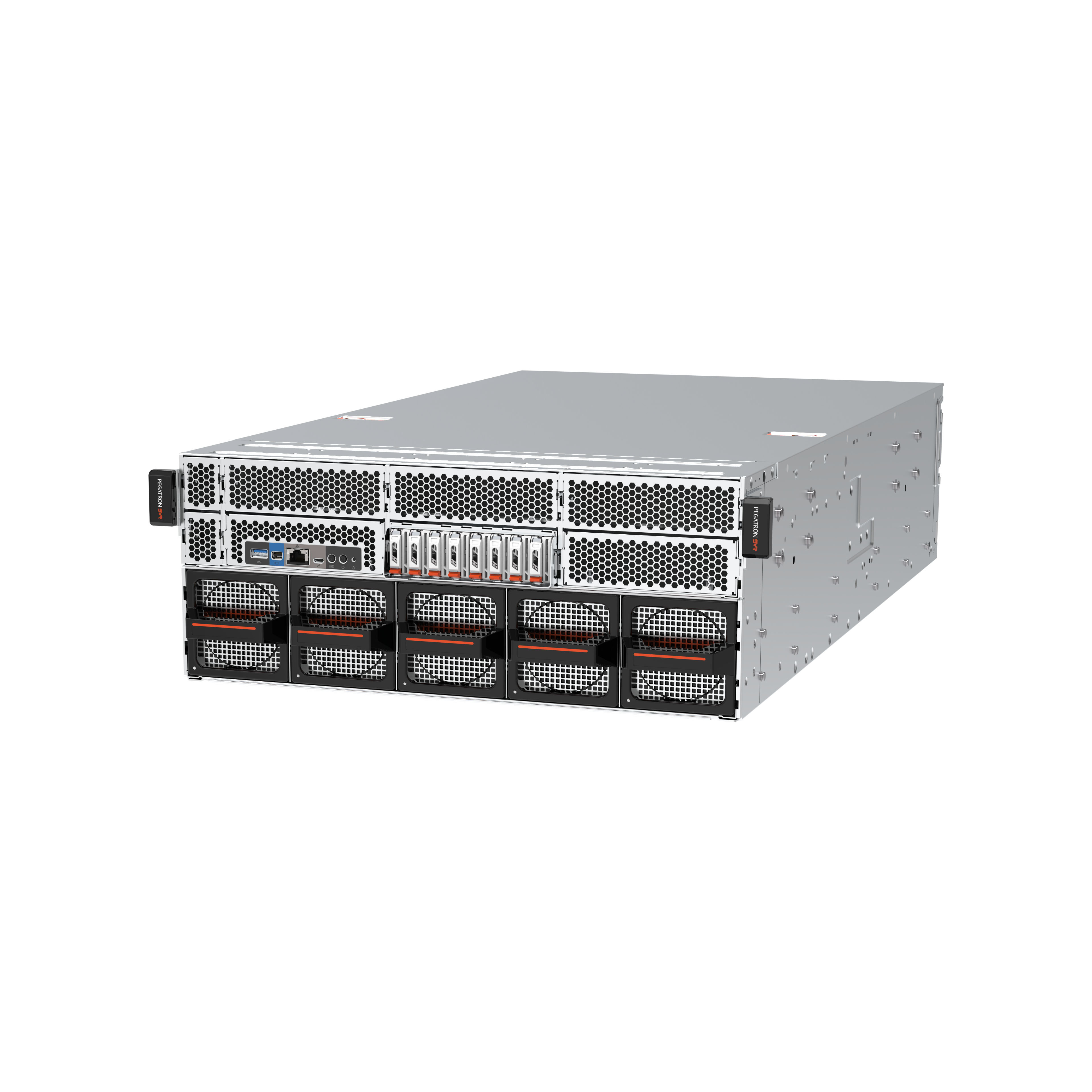

AS400-2A1-CX8
4U 2-Socket 8-GPU PCIe, NVIDIA MGX™ System with ConnectX®-8 SuperNICs
The Ultimate Universal Data Center Computing Platform for Enterprise and Industrial AI
Key Features
| Form Factor | |
| Form Factor | |
|
Chassis Form Factor 4U |
|
|
Chassis Dimension (W x H x D) 438 x 176 x 800 mm |
|
|
Mainboard Form Factor MGX Board |
|
|
Mainboard Dimension 424.5 x 305.59 mm |
|
| Processor | |
| Processor | |
|
Number of Processors 2 |
|
|
Processor Type AMD EPYC™ 9005 |
|
|
Max. TDP Support 400W |
|
| GPU | |
|
Up to 8 dual slot PCIe 5.0 GPU, TDP up to 600W (NVIDIA RTX PRO™ 6000 Blackwell Server Edition) Up to 16 single slot PCIe 5.0 GPU, TDP up to 300W |
|
| GPU |
Up to 8 dual slot PCIe 5.0 GPU, TDP up to 600W (NVIDIA RTX PRO™ 6000 Blackwell Server Edition) Up to 16 single slot PCIe 5.0 GPU, TDP up to 300W |
| Memory | |
| Memory | |
|
Total Slots 32 x DIMM slots |
|
|
Memory Type DDR5 RDIMM (6400MT/s rated): 1DPC: 5200MT/s (1R/2R) 2DPC: 4400 MT/s (1R) / 4000 MT/s (2R) |
|
|
DIMM Capacity (GB per DIMM) 32GB, 64GB, 128GB |
|
| Expansion Slots | |
| Expansion Slots | |
|
SKU - #1 NVIDIA ConnectX®-8 SuperNIC switch board 1 x NVIDIA BlueField®-3 DPU |
|
| Storage Bays | |
| Storage Bays | |
|
SKU - #1 8 x E1.S NVMe SSD |
|
| Onboard Storage | |
| 2 x M.2 2280/22110 NVMe | |
| Onboard Storage | 2 x M.2 2280/22110 NVMe |
| Management | |
| DC-SCI BMC management (Aspeed AST2600) | |
| Management | DC-SCI BMC management (Aspeed AST2600) |
| Security | |
| TPM 2.0 (infineon SLB 9670) | |
| Security | TPM 2.0 (infineon SLB 9670) |
| Networking Interface | |
| 1 x IPMI RJ45 | |
| Networking Interface | 1 x IPMI RJ45 |

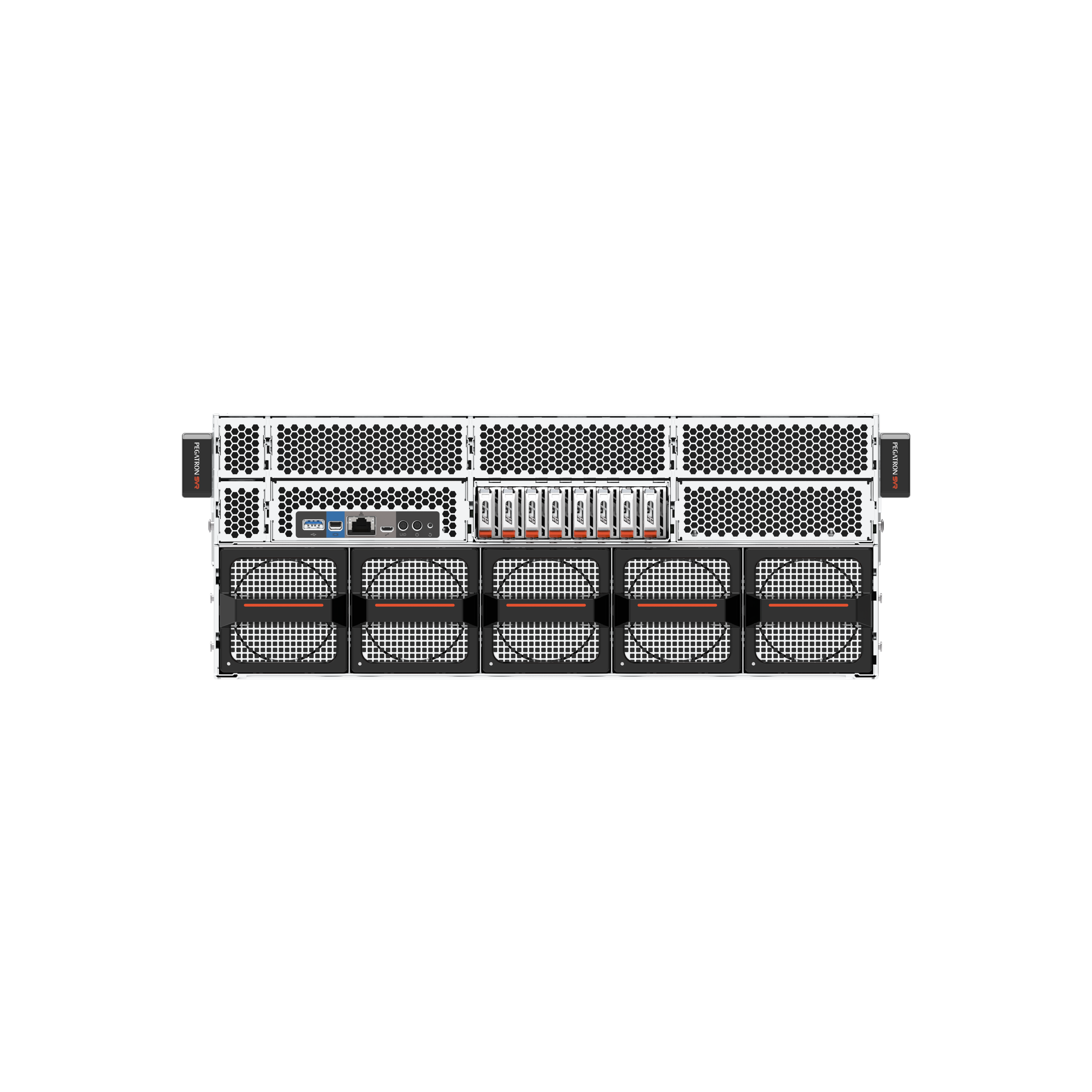

| Front I/O Ports | |
|
1 x IPMI RJ45 1 x Mini-DP 1 x USB 3.0 1 x Micro USB 1 x Power button LED |
|
| Front I/O Ports |
1 x IPMI RJ45 1 x Mini-DP 1 x USB 3.0 1 x Micro USB 1 x Power button LED |

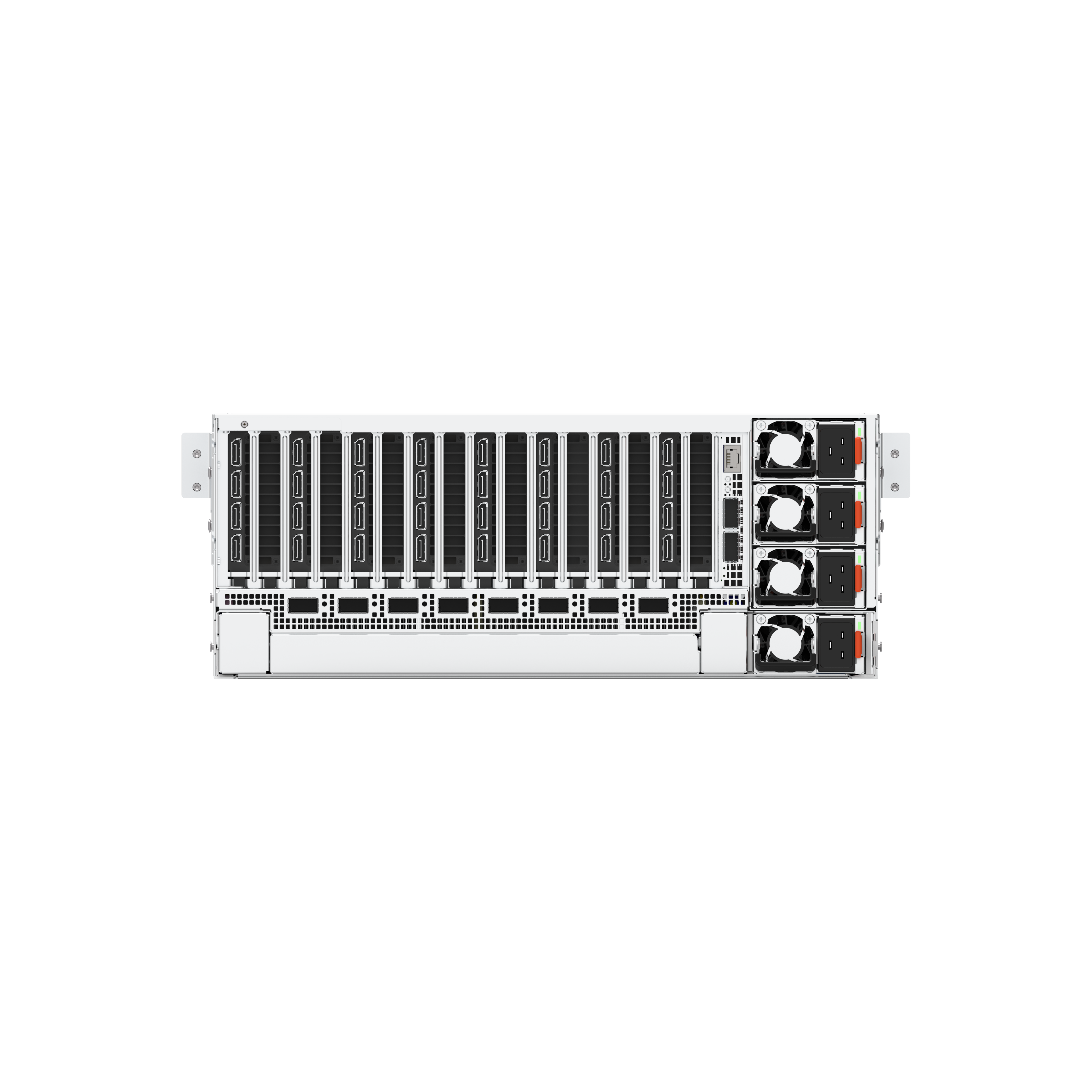

| Rear I/O Ports | |
| 8 x QSFP ports | |
| Rear I/O Ports | 8 x QSFP ports |
| OS Support | |
|
Red Hat Enterprise Linux 9.2 or later Ubuntu 22.04 LTS |
|
| OS Support |
Red Hat Enterprise Linux 9.2 or later Ubuntu 22.04 LTS |
| Power Supply | |
| 3+1 3200W Titanium CRPS | |
| Power Supply | 3+1 3200W Titanium CRPS |
| Fans | |
| 10 x 8080 Fans | |
| Fans | 10 x 8080 Fans |
| Operating Environment | |
|
Ambient operating temperature range: 5°C to +35 °C Ambient non-operating temperature: -40°C to +68 °C Operating relative humidity: 10% to 90% (non-condensing) Non-operating relative humidity: up to 93% (non-condensing) |
|
| Operating Environment |
Ambient operating temperature range: 5°C to +35 °C Ambient non-operating temperature: -40°C to +68 °C Operating relative humidity: 10% to 90% (non-condensing) Non-operating relative humidity: up to 93% (non-condensing) |
